Xerox Phaser 4510 - HVPS Shield Plate

8-72 Phaser 4500/4510 Service Manual
FRU Disassembly
HVPS Shield Plate
(PL12.1.18)
Procedure:
1. Remove the right cover (page 8-7).
2. Remove the image processor shield assembly (page 8-70).
3. Remove the ten 6 mm screws that attach the HVPS Shield Plate to the
frame.
4. Remove the HVPS Shield Plate.

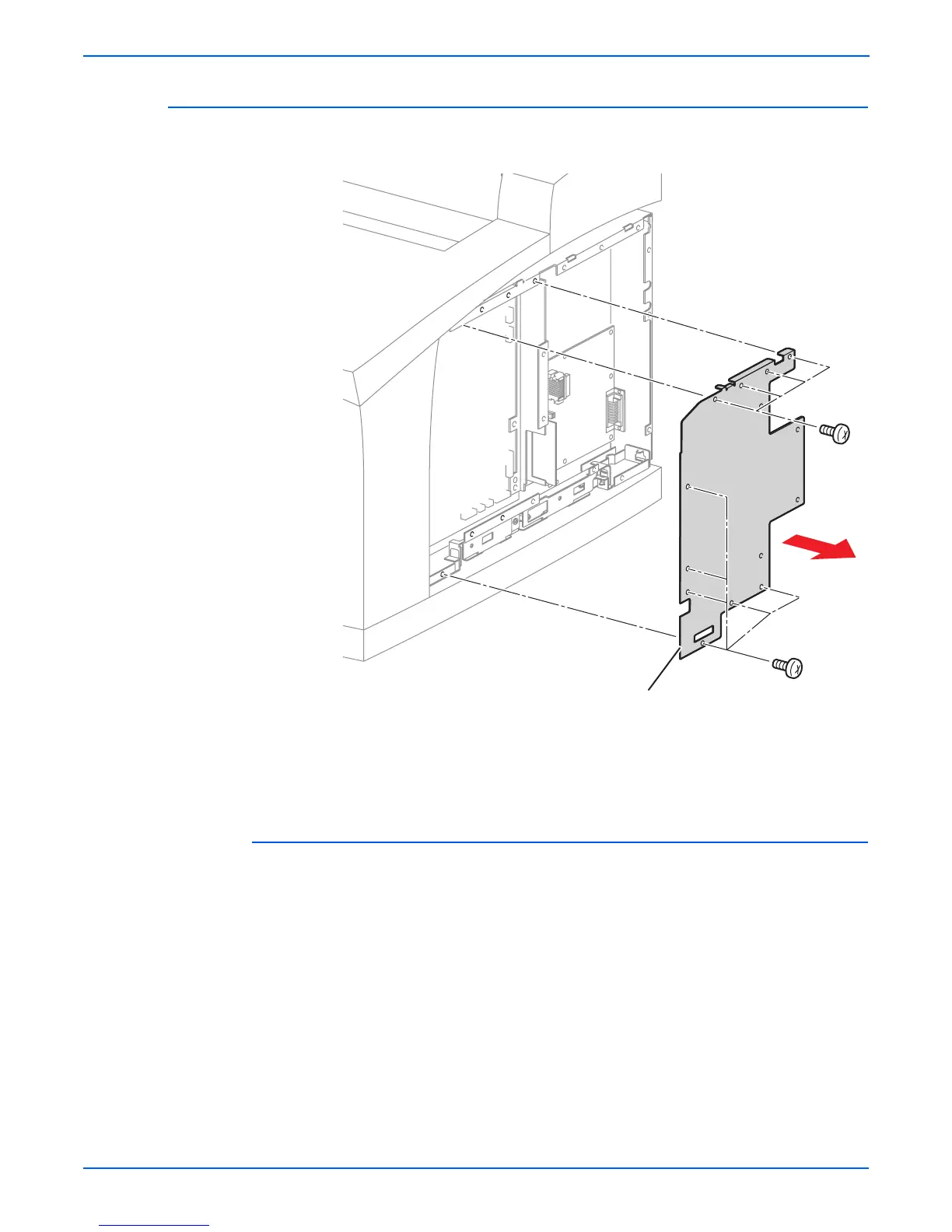

1. HVPS Shield Plate
s4500-150
1
