8-64 Phaser 4500/4510 Service Manual
FRU Disassembly
Low Voltage Power Supply (LVPS) (P4510)
(PL12.1.5)
Procedure:
1. Remove the front cover (page 8-11).
2. Remove the LVPS shield plate (page 8-60).
Caution
Do not attempt to unplug the cable from J101 on the LVPS. This is a
soldered connection and attempts to disconnect the wire will damage
the circuit board.

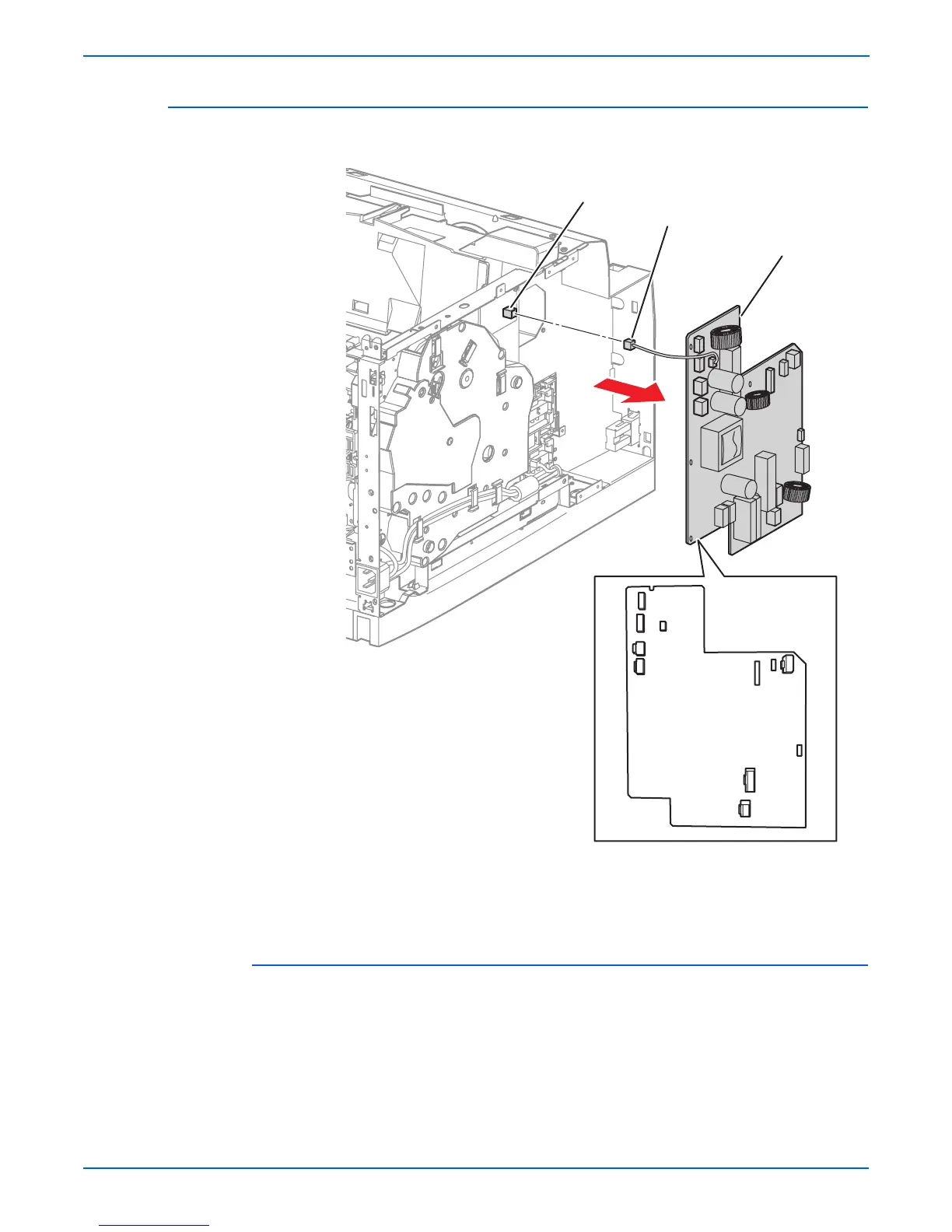

1. Exit motor PWBA 3. P101
2. LVPS
s4510-144
P42
P41
P46
P40
P504
P43
P44
P45
J101
P47
P48
2
1
3
To Next Page
