Xerox Phaser 4510 - Image Processor Board (Phaser 4510)

1-8 Phaser 4500/4510 Service Manual
General Information
Image Processor Board (Phaser 4510)
When installing a new image processor board in the Phaser 4510 printer, you
must transfer the following parts from the old board:
■ Memory DIMMs
■ Configuration card
■ NVRAM
■ Hard drive (if installed)
■ Flash memory (if installed)

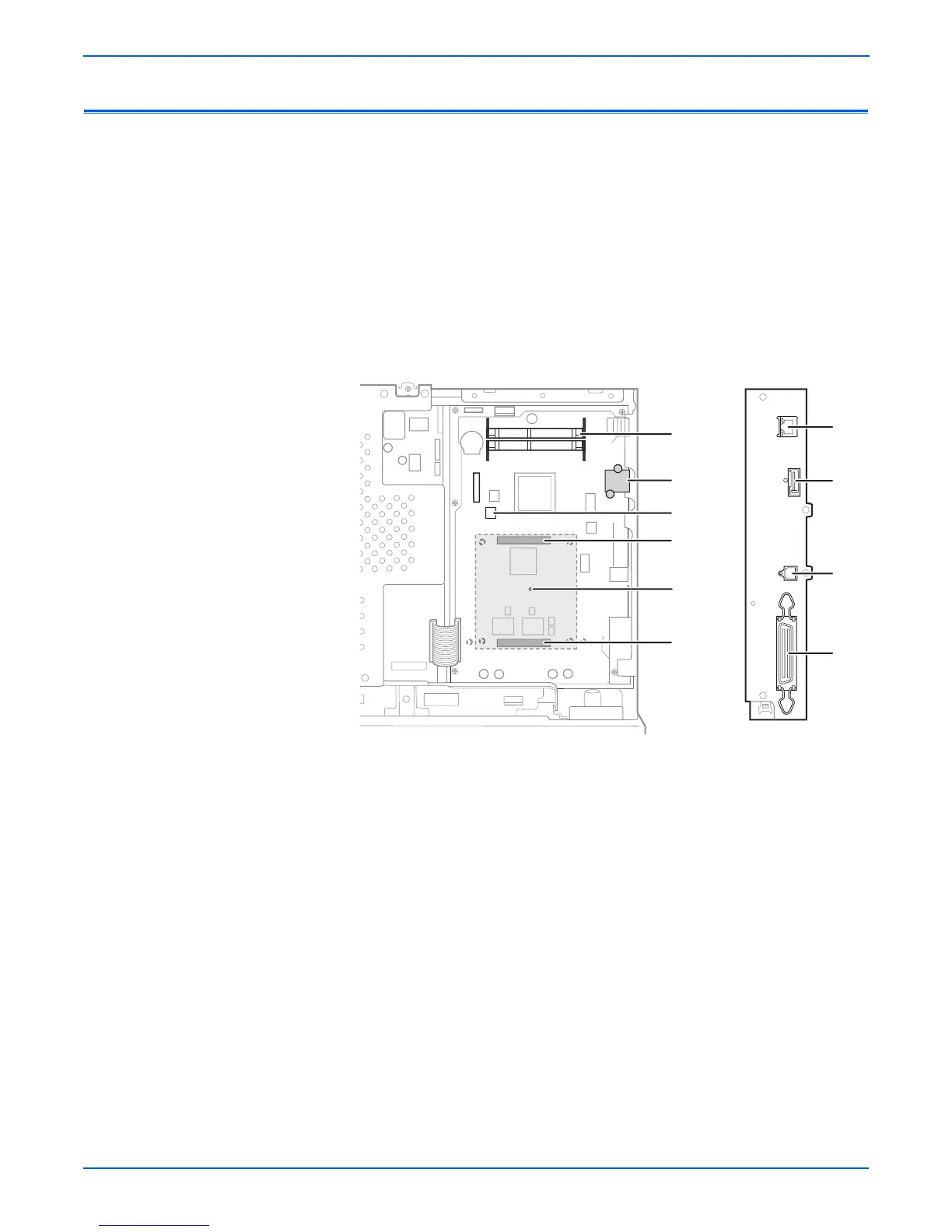

1.Memory (RAM) DIMM 1 and DIMM 2 6.Parallel connector
2.Flash memory (optional) 7.Ethernet connector
3.Hard drive (optional) 8.USB connector
4.NVRAM 9.Health LED
5. Configuration Card
s4510-251
1
3
2
6
7
8
5
4
5
9
