8-24 Phaser 4500/4510 Service Manual
FRU Disassembly
Print Engine: 550-Sheet Paper Feeder
550-Sheet Feeder Assembly
(PL7.1.10)
Procedure:
1. Remove the 150- and 550-sheet paper cassettes (trays 1 and 2).
2. Unplug the connector (P/J248) and release the cables from the two cable
restraints on the tie plate.
3. Remove the four screws (w/ lock washer and washer, 8 mm) that attach
the tie plate to the frame.
4. Remove the six screws from the tie plate and remove the tie plate from
the printer.
5. Remove the two screws (w/ lock washer and washer, 8 mm) that attach
the out chute to the frame.
6. Lower the right-hand side of the 550-sheet feeder assembly and rotate
the assembly clockwise into the printer cavity to free the left-hand side.
Then remove the 550-sheet feeder assembly from the frame.

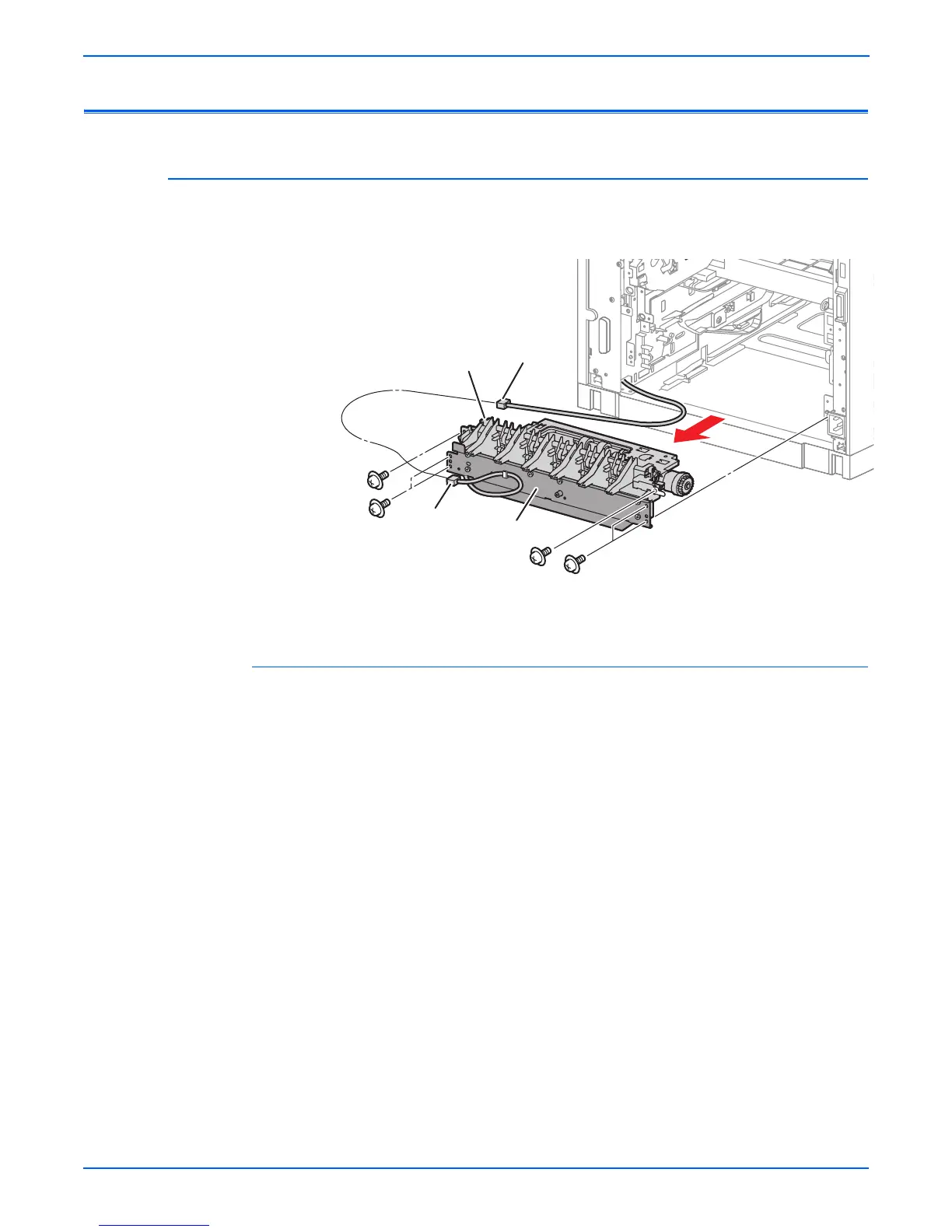

1.Out chute 2. Tie plate
s4500-101
1
2
J248
P248
