Phaser 4500/4510 Service Manual 8-95
FRU Disassembly
Options: Duplex Unit
Duplex Unit Removal
(PL 21.1)
Note
Be careful not to drop the duplex unit when removing it.
Procedure:
1. Loosen the 2 Thumb Screws that secure the duplex unit to the printer.
2. Push up the right latch lever to release the duplex unit from the printer.
3. Tilt the duplex unit back, then lift away from the printer.
Replacement Note:
■ When installing, be sure to insert the bottom hooks of the duplex unit into
the holes of the printer.

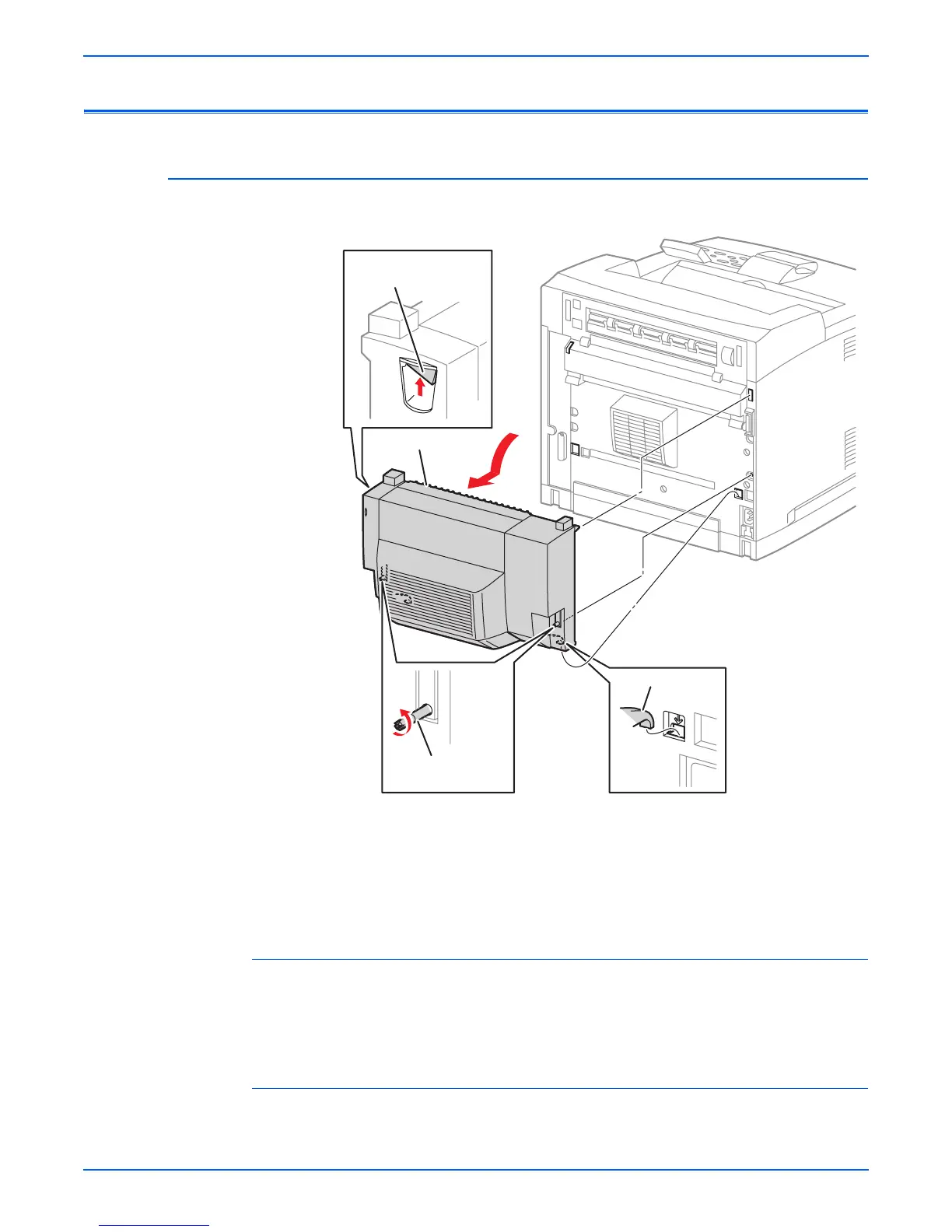

1.Thumbscrew 3. Bottom hook
2.Right latch lever 4. Duplex unit
s4510-184
2
1
3
4
To Next Page
