8-26 Phaser 4500/4510 Service Manual
FRU Disassembly
Nudger One-way Clutch
(PL7.1.27)
Procedure:
1. Remove the print cartridge and leave the cover open so that the removal
can be checked visually.
2. Remove the tray 1 and tray 2 paper cassettes.
3. Lift up the 150-sheet feeder assembly until it locks into the raised detent
position.
4. Remove the feed roller (page 8-25).
5. Slide the feed one-way clutch off the feed shaft.
6. Remove the E-ring retaining the nudger one-way clutch on the feed shaft.
7. Slide the nudger one-way clutch off the feed shaft.

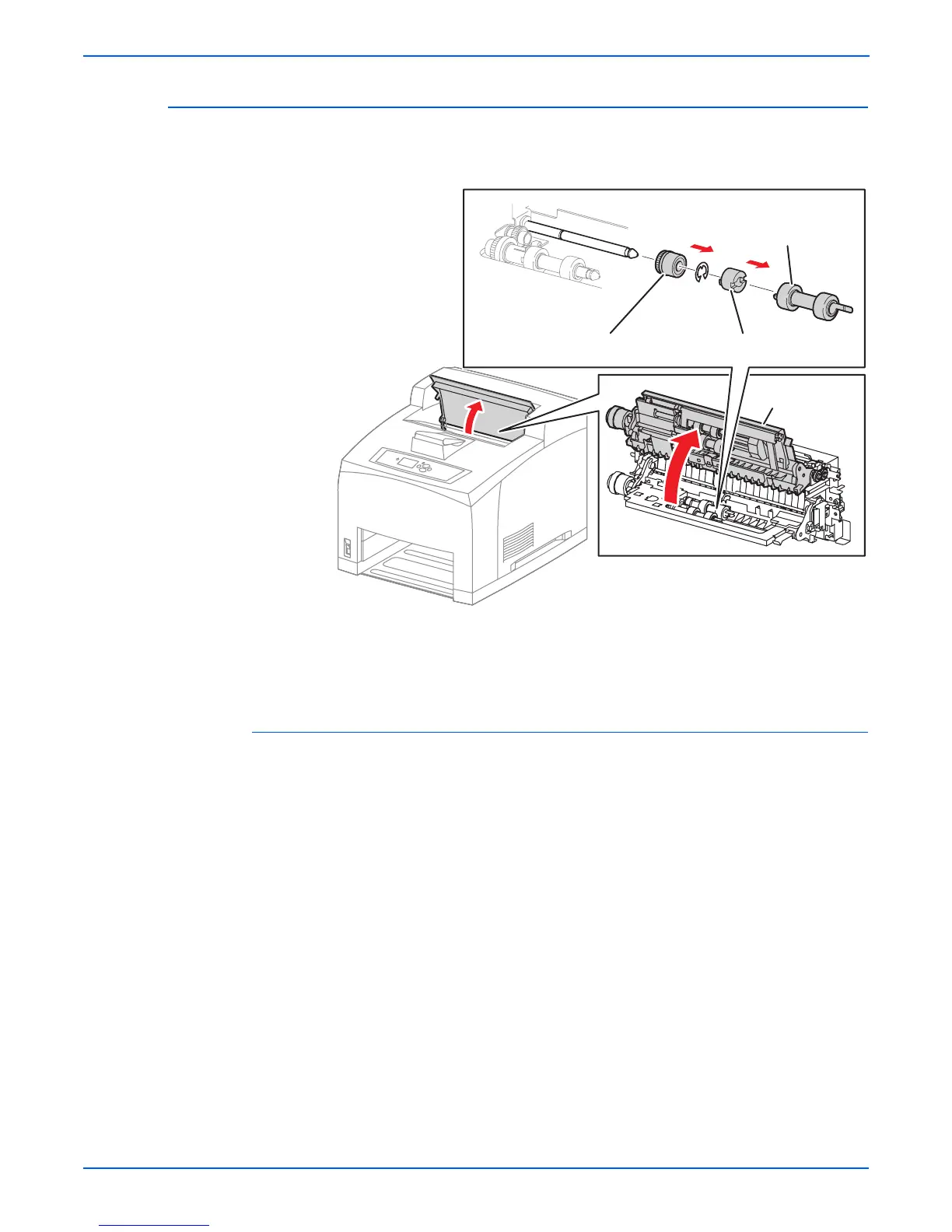

1.Nudger one-way clutch 3.Feed roller
2.Feed one-way clutch 4. 150-sheet feeder assembly
s4500-104
3
1
3
2
