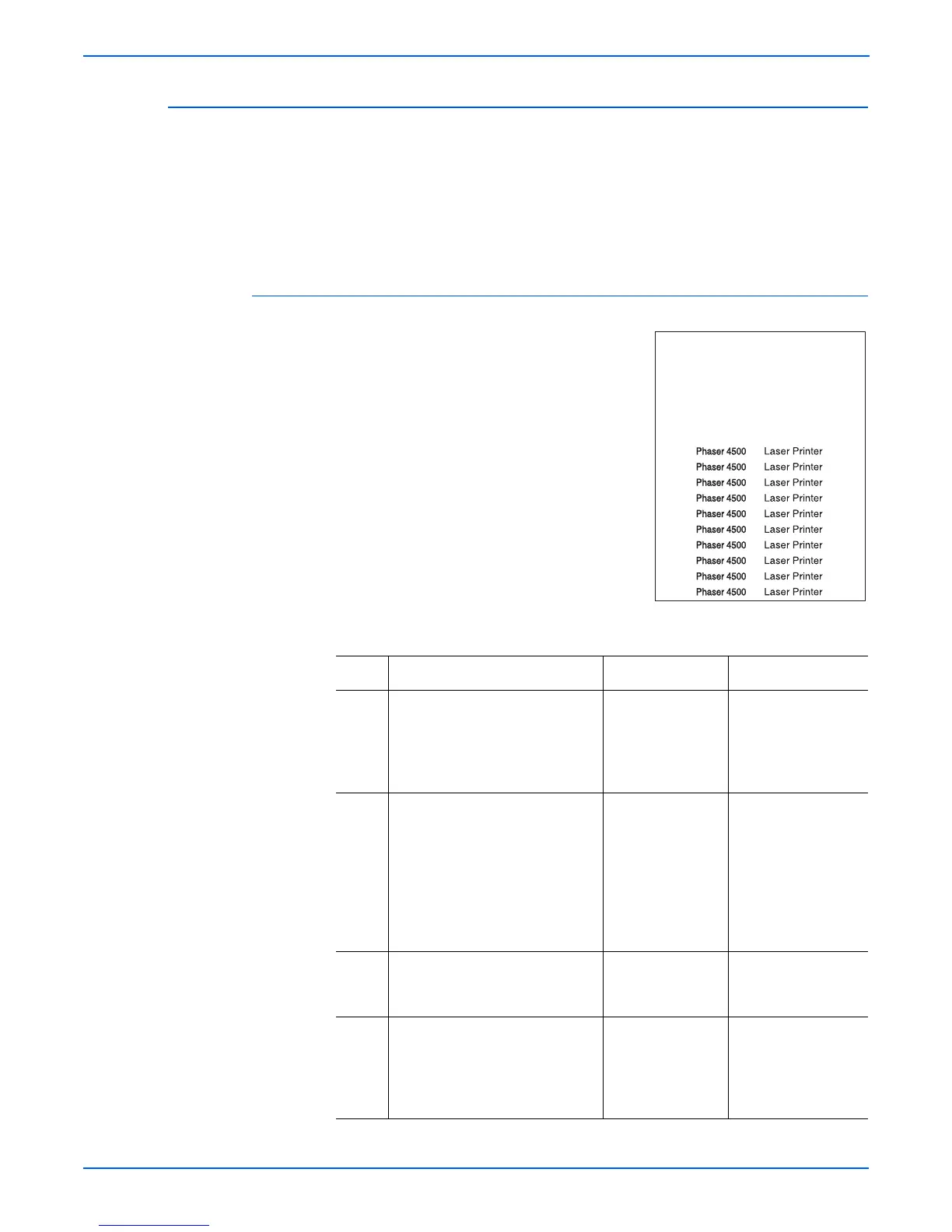

Print-Quality Troubleshooting
Registration
The image is not positioned correctly on the paper. It may be off in either the
process direction or in the scan direction.
N
o
t
e
Refer to “Registration (Side-to-Side)” on page 5-9 and “Registration (Lead
Edge-to-Trail Edge)” on page 5-10 for specification information.
Initial Actions:
■ Check to ensure that the paper is within
specification.
■ Check that the paper supply is dry, fresh,
and loaded correctly.
■ Check that the paper tray guides are set
correctly.
■ Check that rollers and other components
in the paper path are clean and
unobstructed.
Registration Troubleshooting Procedure
Step Actions and Questions Yes No
1 Print Engine Test Prints from all
Paper trays. Print duplex prints if
a duplex option is installed.
Is the image registration within
specifications?
Go to step 3. Go to step 2.
2 Perform the registration
adjustment procedure (“Adjusting
Simplex Registration (Margins)”
on page 6-7 or “Adjusting Duplex
Registration (Margins)” on
page 6-8).
Is the image registration correct
after the adjustment?
Go to step 3. Go to step 5.
3 Print test prints
Is the image registration
correct?
Go to step 4. Go to step 5.
4 Have the customer run a print job.
Are the customer’s prints
correctly registered?
Problem solved. Problem may be
application related.
Have the customer
contact Xerox
customer support.
s4510-260

Xerox Phaser 4510 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	43 ppm
Maximum internal memory	512 MB
Sound power level (standby)	28 dB
Sound pressure level (printing)	56.1 dB
Total input capacity	1350 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	150 sheets
I/O ports	Parallel (IEEE 1284), USB 2.0
Power supply type	220 V
Weight (imperial)	45.2 lbs
Power consumption (active)	675 W
Acoustic power emissions (active, print, copy or scan)	71.9 dB
Envelopes sizes	B5, C5, DL
Custom media width	76 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 356 mm
Paper tray media types	Bond paper, Coated paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), index card, Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Supported network protocols (IPv4)	USB/Parallel, 10/100 Base-TX Ethernet
PCL fonts	81
Printer fonts	PCL, PostScript
Maximum duty cycle	250000 pages per month
Recommended duty cycle	25000 pages per month
Number of PostScript fonts	139
Number of print cartridges	1
Display	LCD
Certification	EMC Directive 89/336/EEC, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS 2002/95/EC
Operating temperature (T-T)	41 - 95 °F
Operating relative humidity (H-H)	15 - 85 %
Power consumption (standby)	80 W
Power consumption (PowerSave)	18 W
Package weight	49896 g
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Dimensions (WxDxH)	630 x 630 x 1194 mm
