8-34 Phaser 4500/4510 Service Manual
FRU Disassembly
Low Paper Sensor/Actuator
(PL7.1.4)
Procedure:
1. Remove the print cartridge and paper cassettes.
2. Remove the right tray guide (page 8-31)
3. Squeeze the actuator latch hooks together and lift the actuator off the
pivot shaft.
4. Release the sensor harness wires from the restraints.

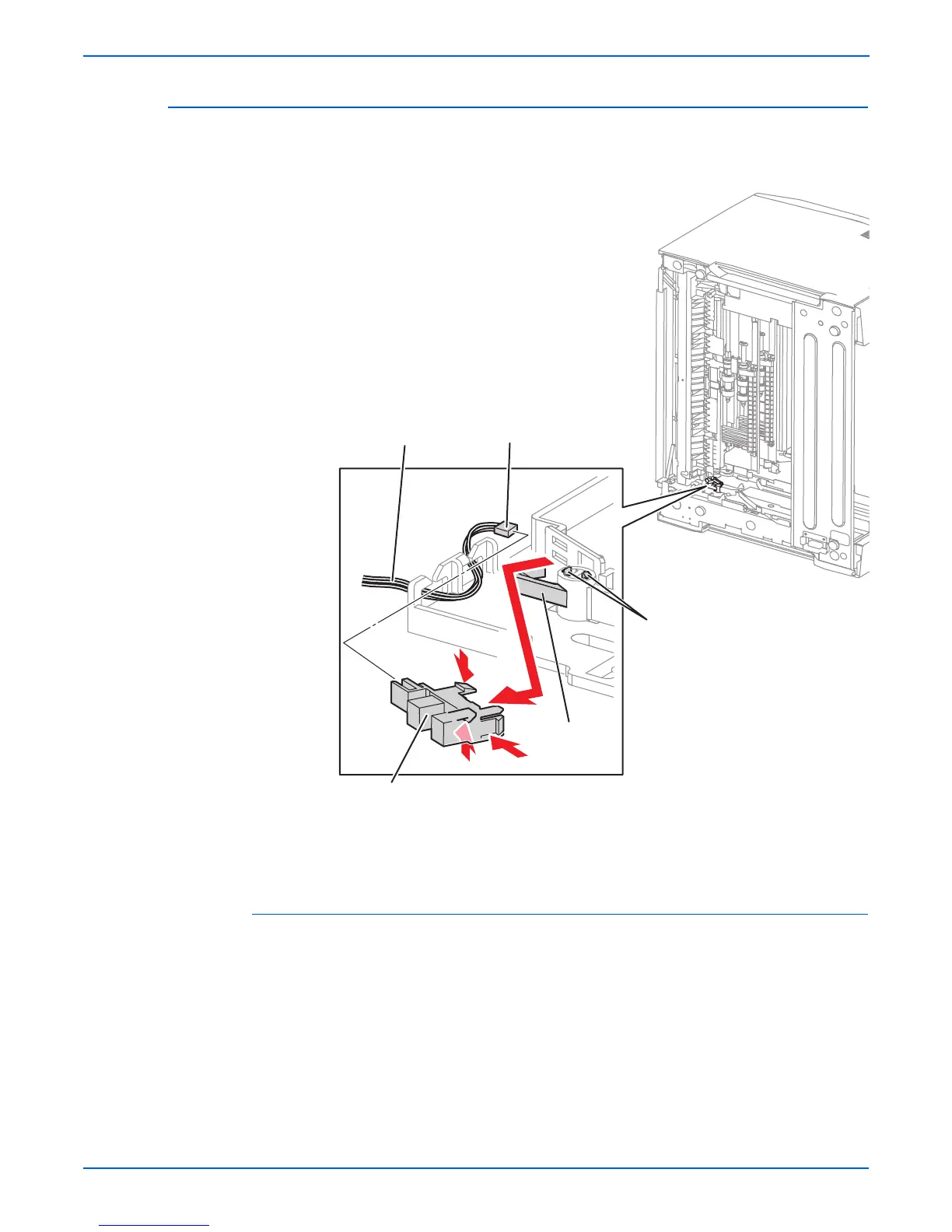

5. Release the sensor latches as indicated by the arrows in the drawing to
free the sensor from the holder.
6. Unplug connector P/J260 from the sensor.
1.Low 1 harness assembly 3.Latch hooks
2.Low paper sensor 4.Actuator
s4500-110
1
2
4
P/J260
3
To Next Page
