Xerox Phaser 4510 - No Paper Sensor

Phaser 4500/4510 Service Manual 8-21
FRU Disassembly
No Paper Sensor
(PL5.1.38)
Procedure:
1. Remove the 150-sheet paper cassette (tray 1).
2. Remove the print cartridge, and protect it from light exposure.
3. Remove the paper exit rear door (PL10.2.21/PL9.1.12) (page 8-5).
4. Remove the fuser assembly (page 8-44).
5. Lift the 150-sheet feeder roller holder assembly upward until it latches into
the lifted position detent.

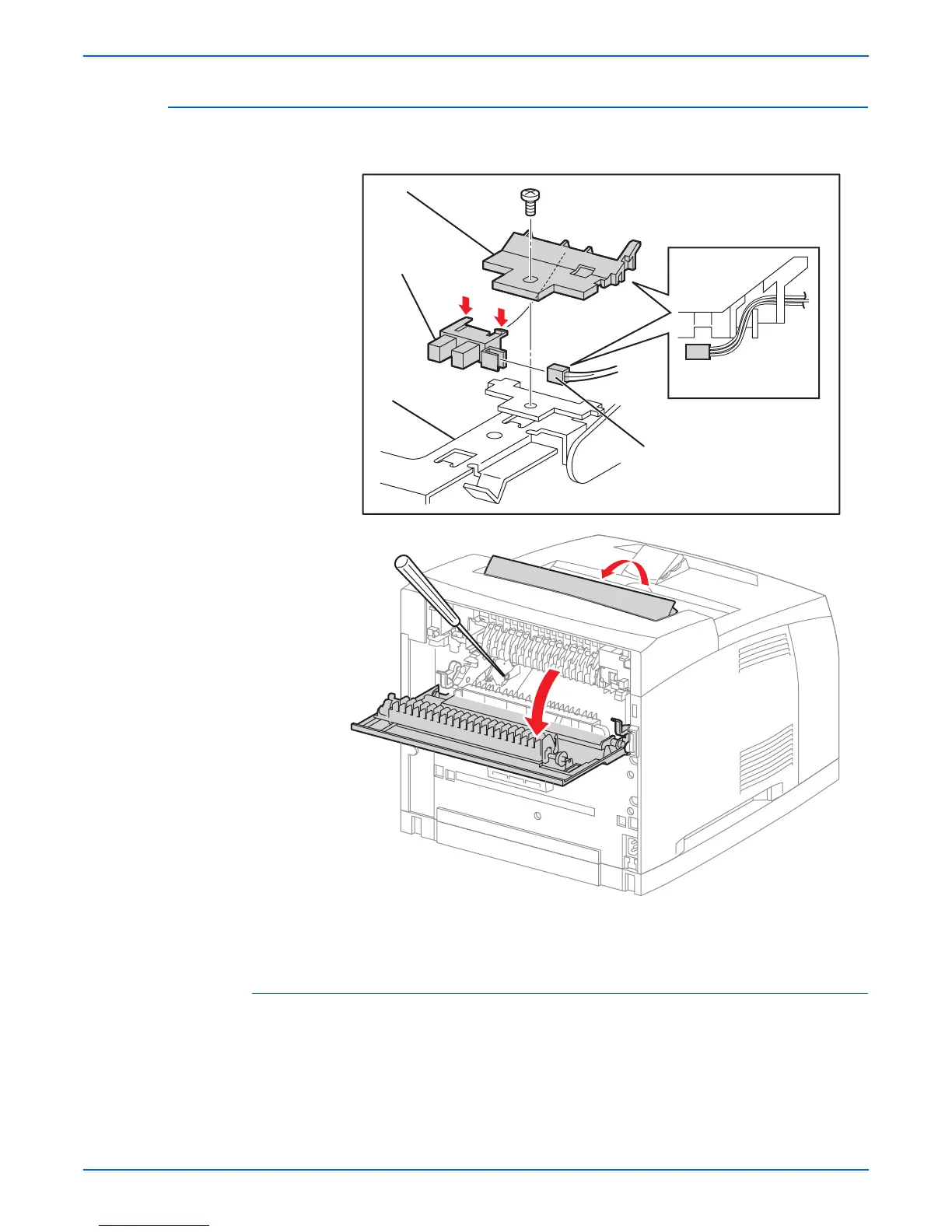

1.No paper sensor holder 3.150-sheet feeder assembly
2.No paper sensor
s4500-098
1
2
3
P/J240
