Xerox Phaser 4510 - Nudger Gear

Phaser 4500/4510 Service Manual 8-89
FRU Disassembly
Nudger Gear
(PL20.2.10)
Procedure:
1. Remove the optional 550-sheet paper feeder (page 8-78).
Note
The following steps are more easily performed by turning the 550-
sheet paper feeder upside-down.
2. While lifting up the boss (or depressing the boss from the top) of the left
holder at the back of the optional 550-sheet paper feeder, shift the left
holder in the direction of the arrow to remove the 3 hooks.

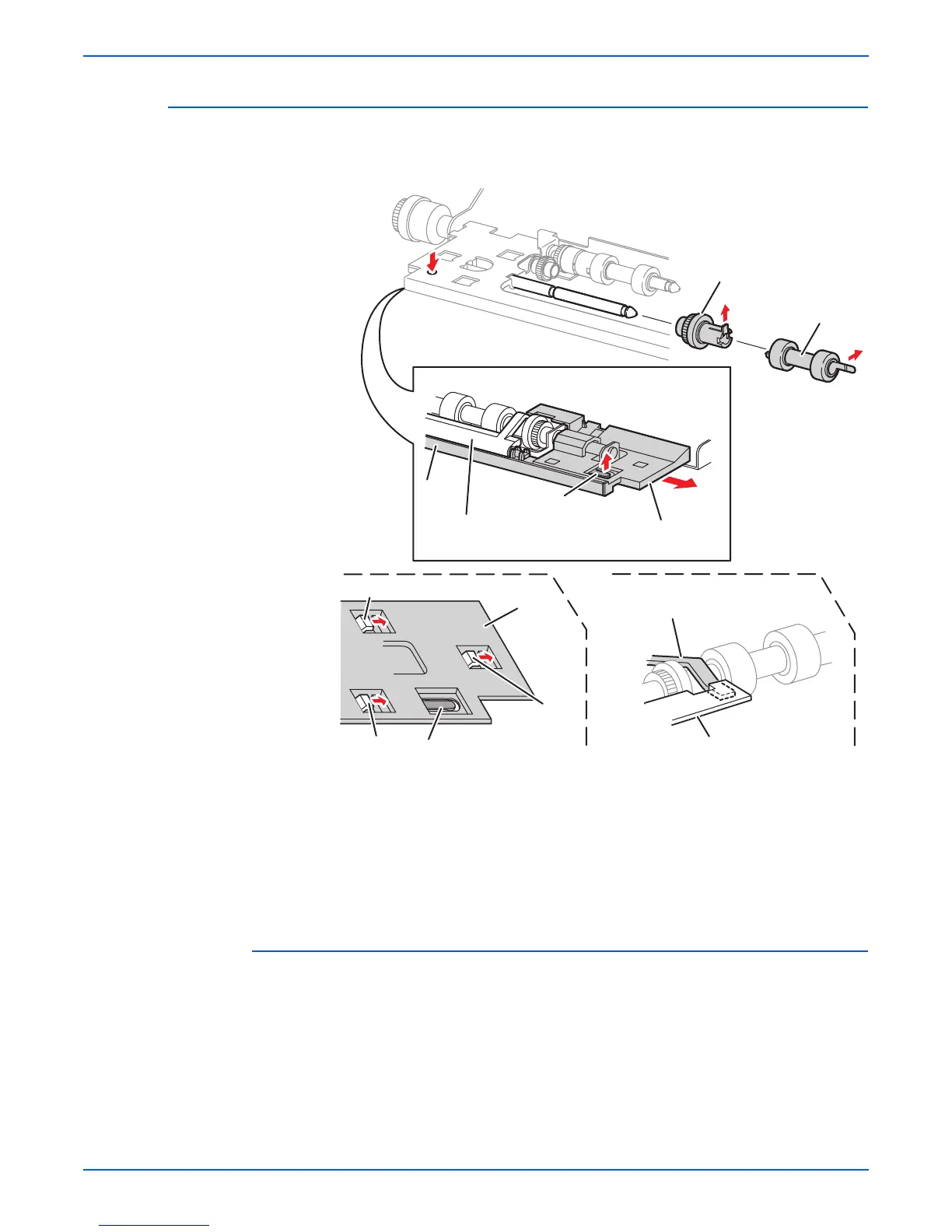

1.Nudger gear 5.Boss (lift up)
2.Nudger roller 6.Left holder
3.Nudger support 7.Hooks
4. No paper actuator
1
2
3
4
5
6
Inverted View
s4500-163
4
6
7
7
7
6
5
