Xerox Phaser 4510 - Transfer Chute

8-46 Phaser 4500/4510 Service Manual
FRU Disassembly
Transfer Chute
(PL8.1.22)
Procedure:
1. Remove the transfer roller assembly (page 8-45).
2. Remove the fuser assembly (page 8-44).
3. P4500: Remove the main fan (page 8-68)
P4510: Remove the rear cover (page 8-6).
4. Lift the latch tab on the transfer chute and shift the transfer chute toward
the printer’s left side.
5. Shift the transfer chute in the direction of the arrow, and remove it from the
frame.

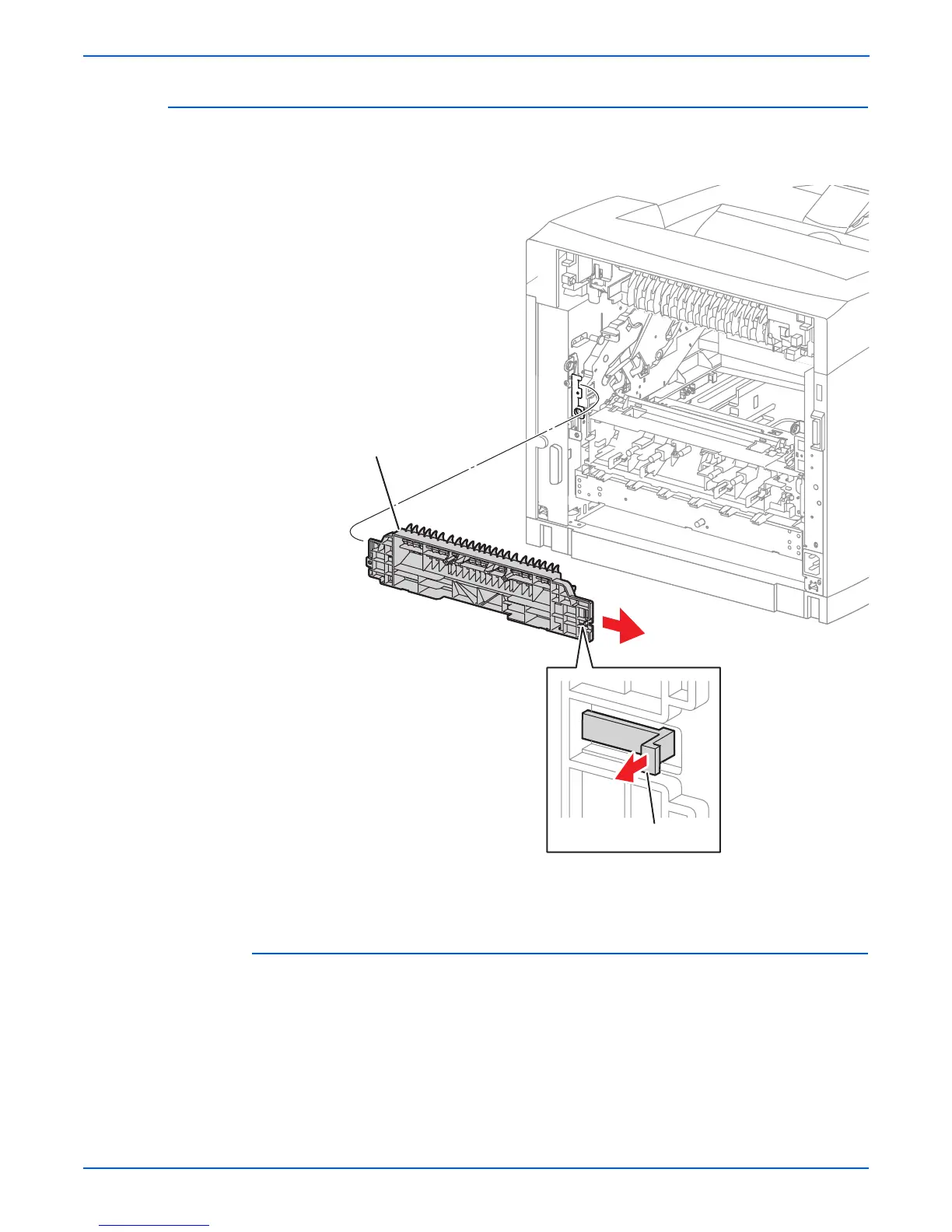

1.Transfer chute 2. Latch tab
s4500-122
2
1
