Xerox Phaser 4510 - Stacker Sensor and Actuator

8-122 Phaser 4500/4510 Service Manual
FRU Disassembly
Stacker Sensor and Actuator
(PL23.1.30)
Procedure:
1. Remove the stacker front cover (page 8-115).

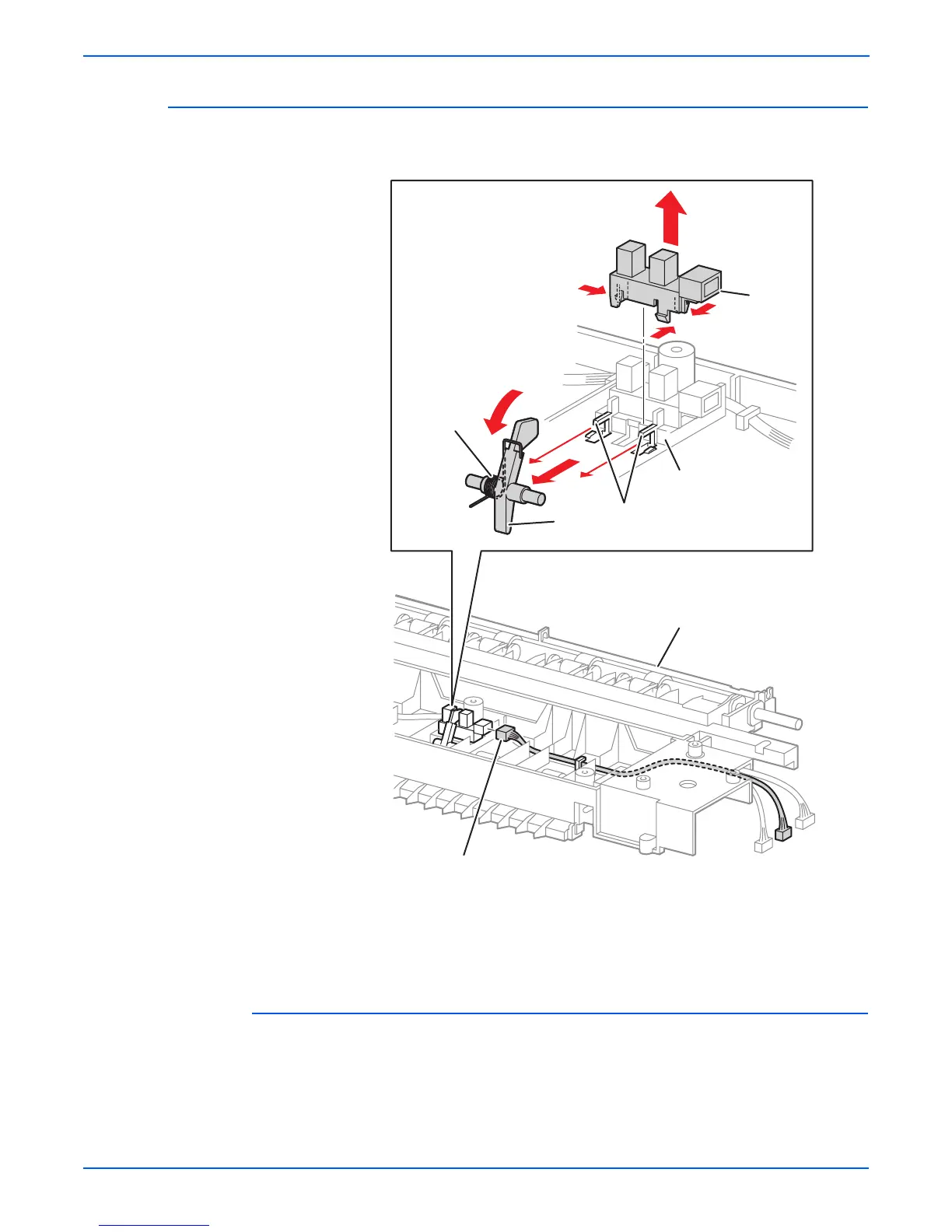

1.Stacker actuator 4.Stacker housing
2.Pivot hooks 5.Actuator spring
3.Stacker sensor
s4500-211
J730
4
2
1
5
4
3
