Xerox Phaser 4510 - Turn Roller Clutch

8-92 Phaser 4500/4510 Service Manual
FRU Disassembly
Turn Roller Clutch
(PL20.2.22)
Procedure:
1. Remove the optional 550-sheet paper feeder (page 8-78).
2. Remove the six screws (taping, 8 mm) that attach the tie plate.
3. Remove the tie plate from the out chute.
Note
The connector in the following step has a gender adapter that could
stay with either side of the harness.
4. Disconnect the connector (P/J854) of the turn roller clutch from the clutch
sensor 1 assembly harness.
5. Remove the E-ring that secures the turn roller clutch, and remove the turn
roller clutch from the turn roller.

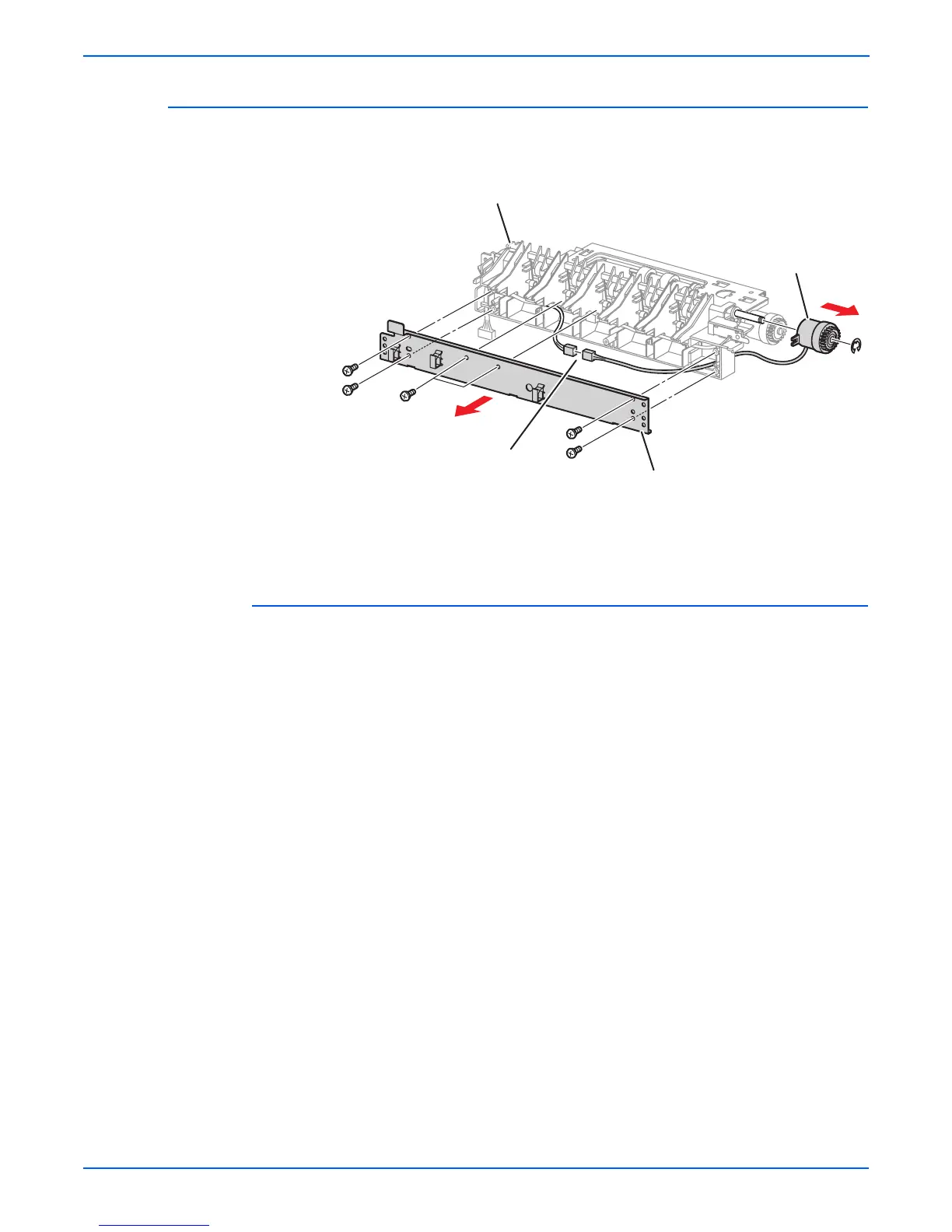

1.Out chute 3.Tie plate
2.Turn roller clutch
1
2
s4500-166
3
P/J854
