Phaser 4500/4510 Service Manual 2-5
Theory of Operation
Layout of Paper Transport Path

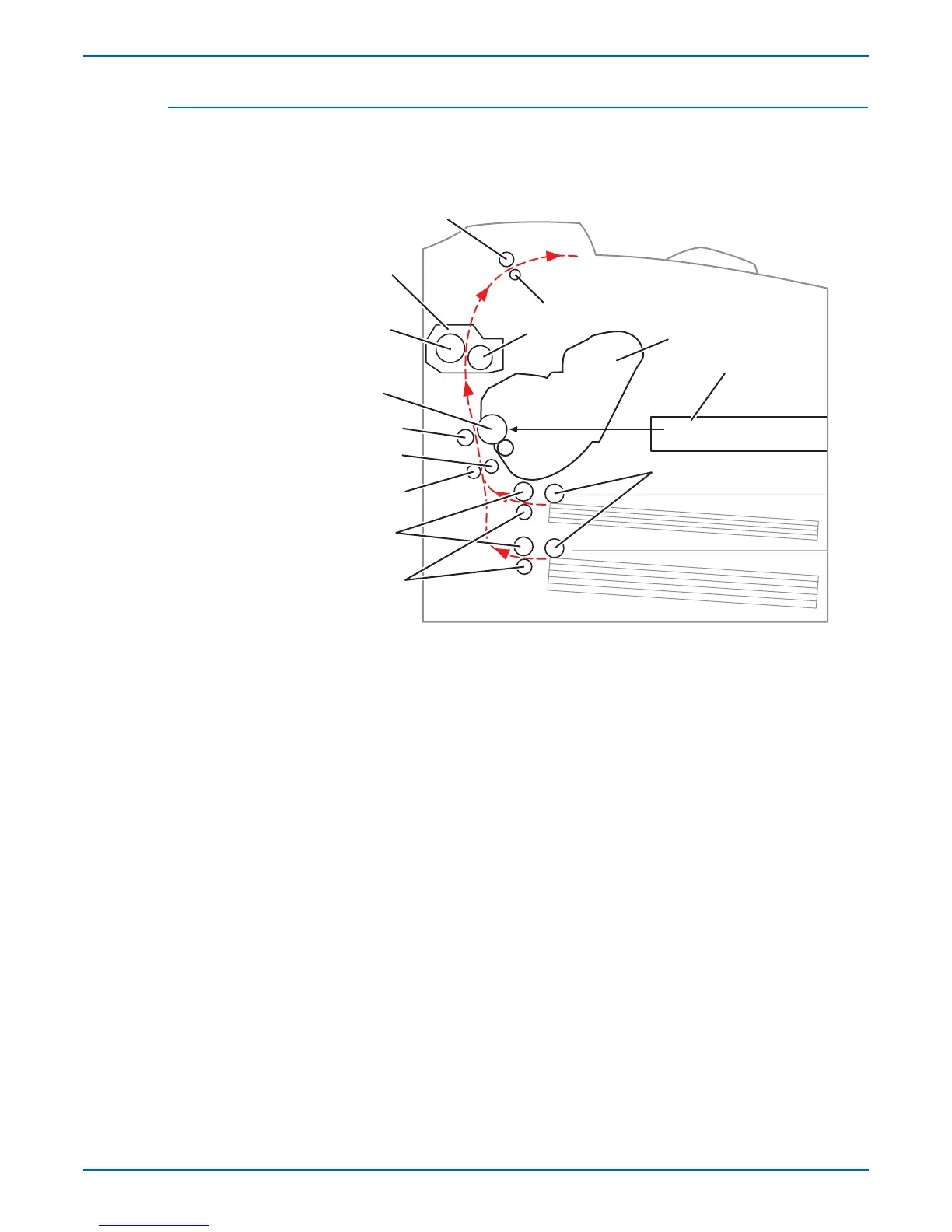

This cross section of the printer shows the main components directly
associated with the paper path and transport in the engine only.
1.Exit roller 8.Rubber registration roller
2.Exit pinch roller 9.Metal registration roller
3.Fuser assembly 10.Feed roller assemblies
4.Pressure roller 11.Retard roller assemblies
5.Heat roller 12.Nudger roller assemblies
6.Drum 13.Print cartridge
7.Transfer roller assembly 14.Laser assembly
s4500-018
1
2
5
3
4
6
7
8
9
10
11
12
13
14
