2-6 Phaser 4500/4510 Service Manual
Theory of Operation

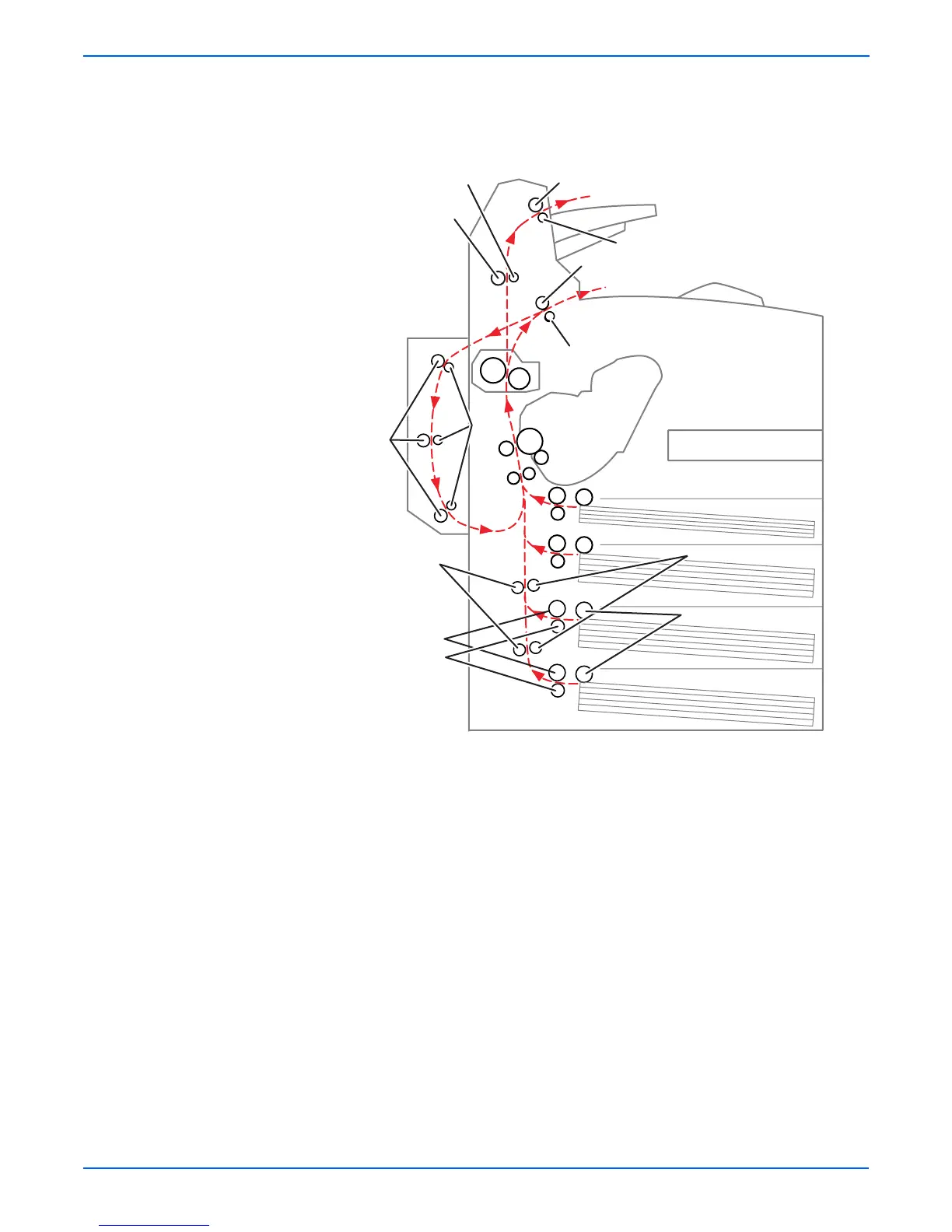

This cross section shows the additional components associated with paper
transport when the 550-sheet feeders, the duplex unit, and the stacker are
installed.
1.Stacker pinch roller 8.Duplex pinch rollers
2.Lower stacker roller 9.Turn pinch rollers
3.Upper stacker roller 10.Turn roller assemblies
4.Upper stacker pinch roller 11.Feed roller assemblies
5.Exit roller 12.Retard roller assemblies
6.Exit pinch roller 13.Nudger roller assemblies
7. Duplex rollers
4500-019
1
2
3
4
5
6
7
8
9
10
13
11
12
