Phaser 4500/4510 Service Manual 8-35
FRU Disassembly
Print Engine: Xerographics
Vacuum Duct (P4510)
(PL8.1.31)
Procedure:
1. Remove the front cover (page 8-11). Removing the front cover requires
removing all other printer covers and the paper exit assembly.
2. Remove the flanged screw that attaches the vacuum duct to the printer
frame.
3. Slide the vacuum duct to the left, then maneuver the duct out of the
printer.

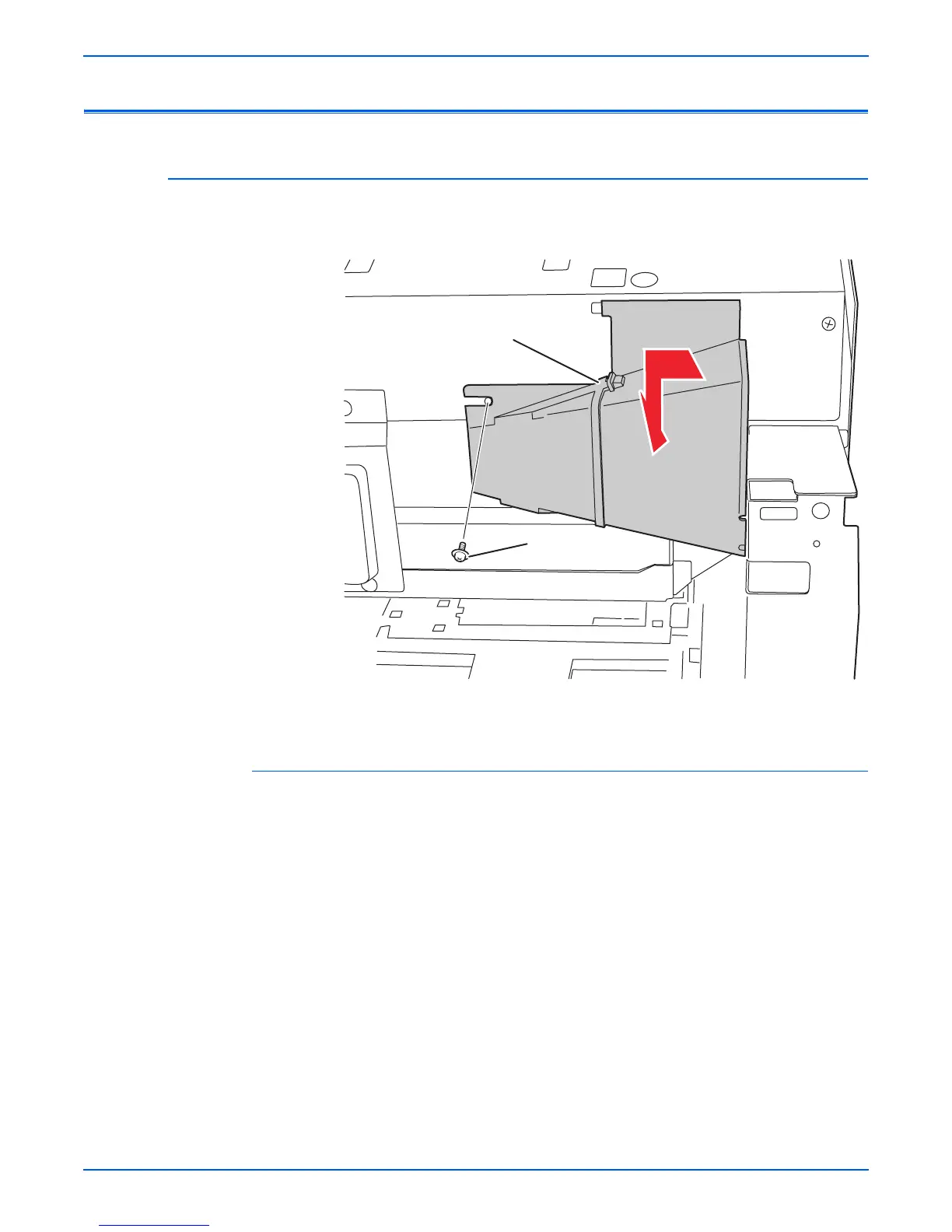

1.Vacuum duct 2. Flanged screw
1
2
s4510-300
