Xerox Phaser 4510 - I;P Shield Window

Phaser 4500/4510 Service Manual 8-71
FRU Disassembly
I/P Shield Window
(PL12.1.15)
Procedure:
1. Remove the right cover (page 8-7).
2. Remove the two screws that secure the Shield Window to the IP Shield
Assembly.
3. Remove the Shield Window.

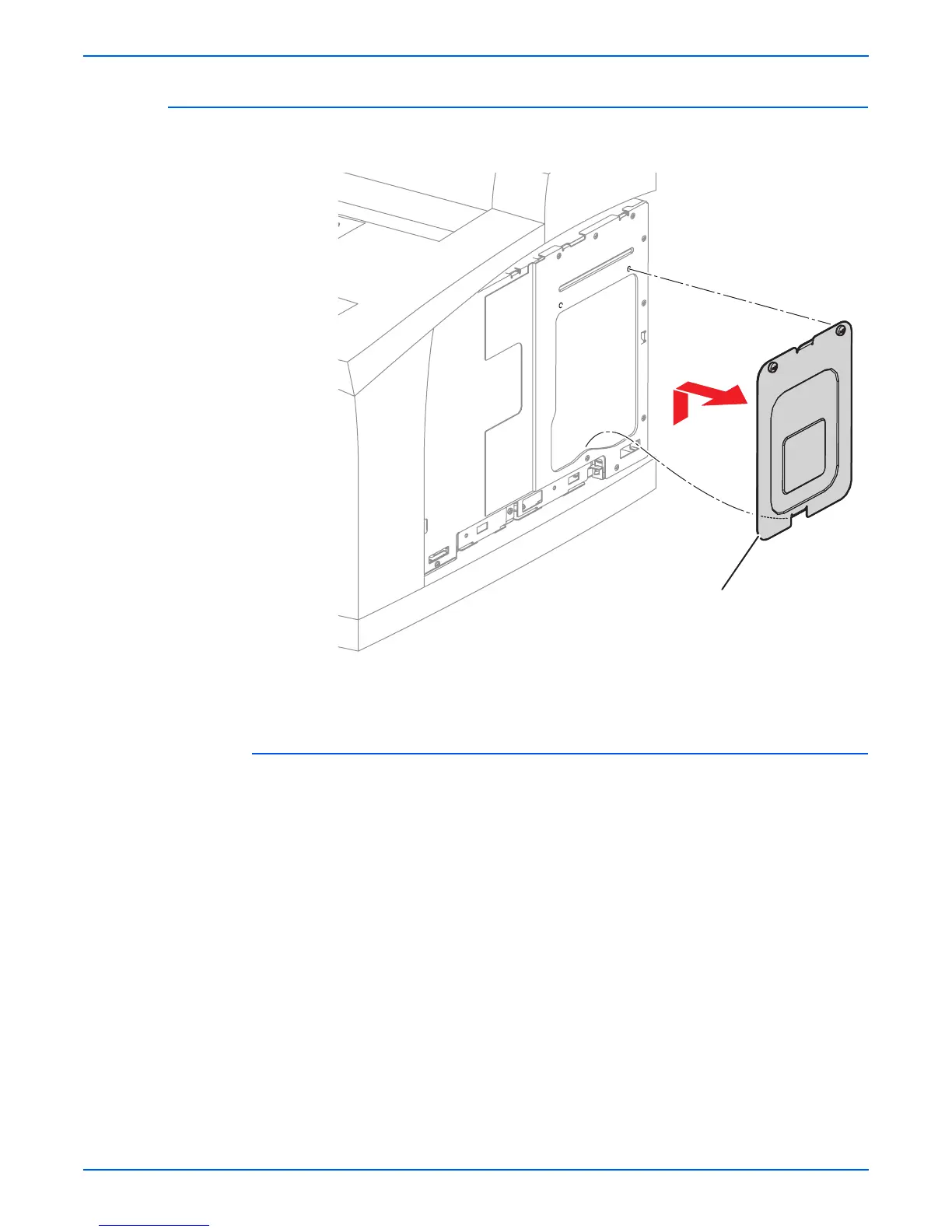

1.Shield Window
s4500-149
1
