Xerox Phaser 4510 - Duplex Unit Roller

Phaser 4500/4510 Service Manual 8-107
FRU Disassembly
Duplex Unit Roller
(PL21.1.17)
Procedure:
1. Remove the left cover (page 8-96).
2. Remove the right cover (page 8-97).
3. Remove the upper assembly housing (page 8-99).
4. Remove the duplex unit lower housing (page 8-100).
5. Remove the two 8 mm tapping screws and the shoulder screw that attach
the damper cover to the duplex unit housing cover.

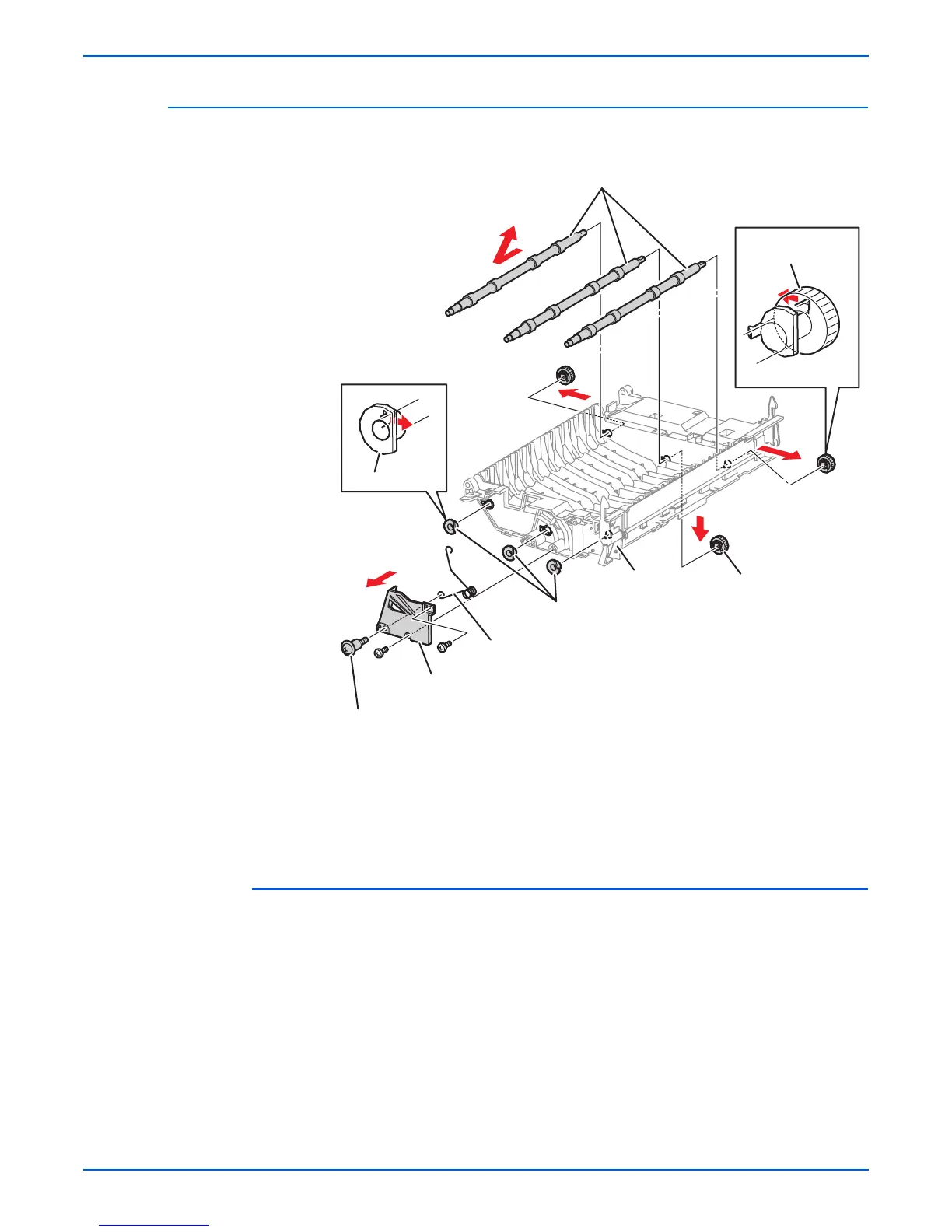

1.Shoulder screw (tapping) 5.Roller gear
2.Damper cover 6.Duplex unit rollers
3.Damper spring 7.Duplex unit housing cover
4.Duplex unit bearings
s4500-192
4
5
6
5
7
4
3
2
1
