8-124 Phaser 4500/4510 Service Manual
FRU Disassembly
Lower Stacker Roller
(PL23.1.16)
Procedure:
1. Remove the stacker cover (page 8-113).
2. Remove the screws (one tapping, 8 mm; one machine, 6 mm) that attach
the left stacker support.
3. Remove the two 8 mm tapping screws that attach the stacker motor
bracket.

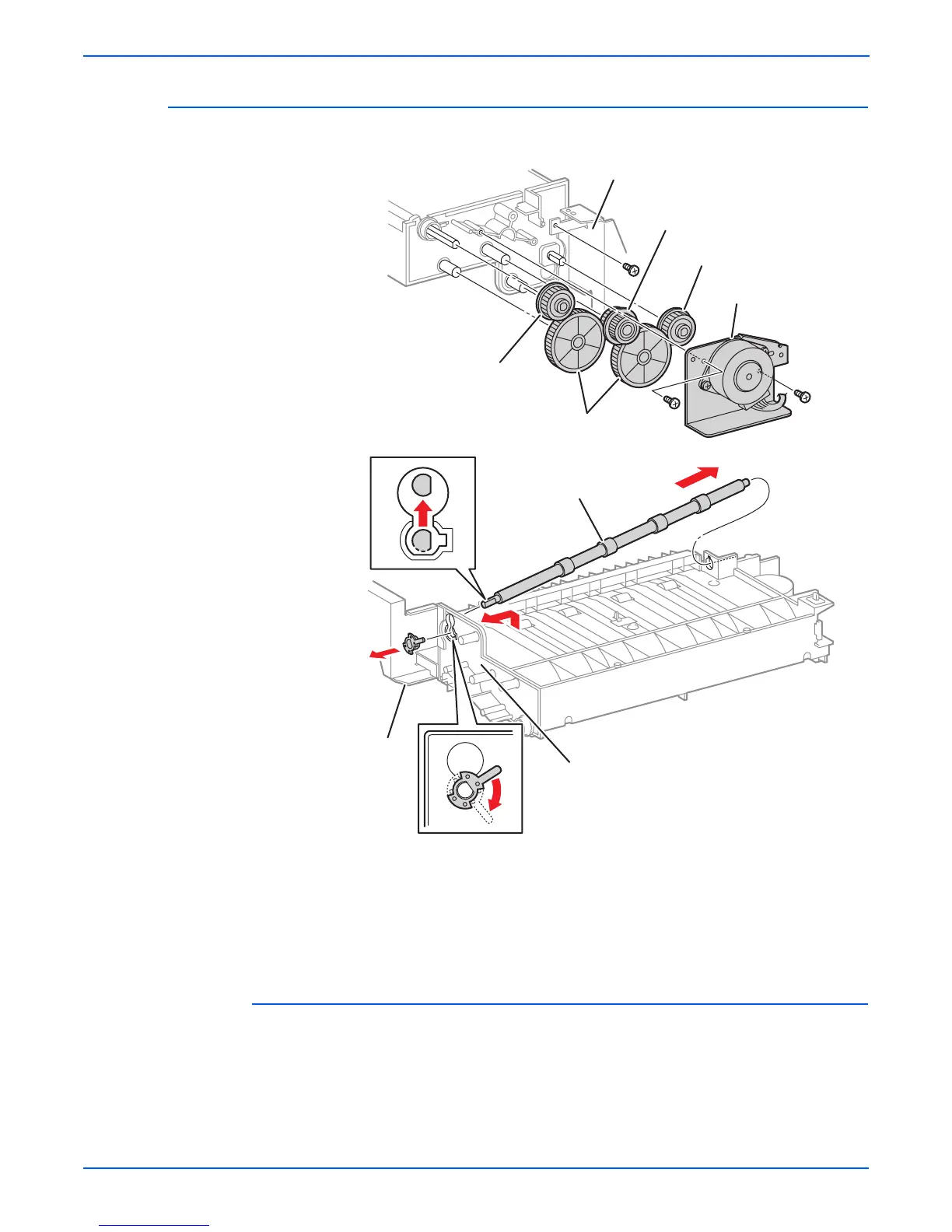

1.Stacker left support 5. Gear 19
2.Stacker motor bracket 6.Roller bearing
3.Gear 45 7.Lower stacker roller
4.Gear 19/37 8.Stacker housing
s4500-214
6
7
8
1
4
5
2
5
3
