Phaser 4500/4510 Service Manual 8-123
FRU Disassembly
2. Shift the stacker actuator in the direction of the arrows to release the
pivots from the hooks on both sides.
Note
Carefully observe the orientation of the actuator spring for reference
when reassembling.
3. Unplug stacker sensor harness (J730) from the stacker sensor.
4. Release the hooks of the stacker sensor, and remove it from the stacker
housing.
Stacker Rear Cover Interlock Switch
(PL23.1.18)
Procedure:
1. Remove the stacker cover (page 8-113).
2. Disconnect the wire harness from the interlock switch.

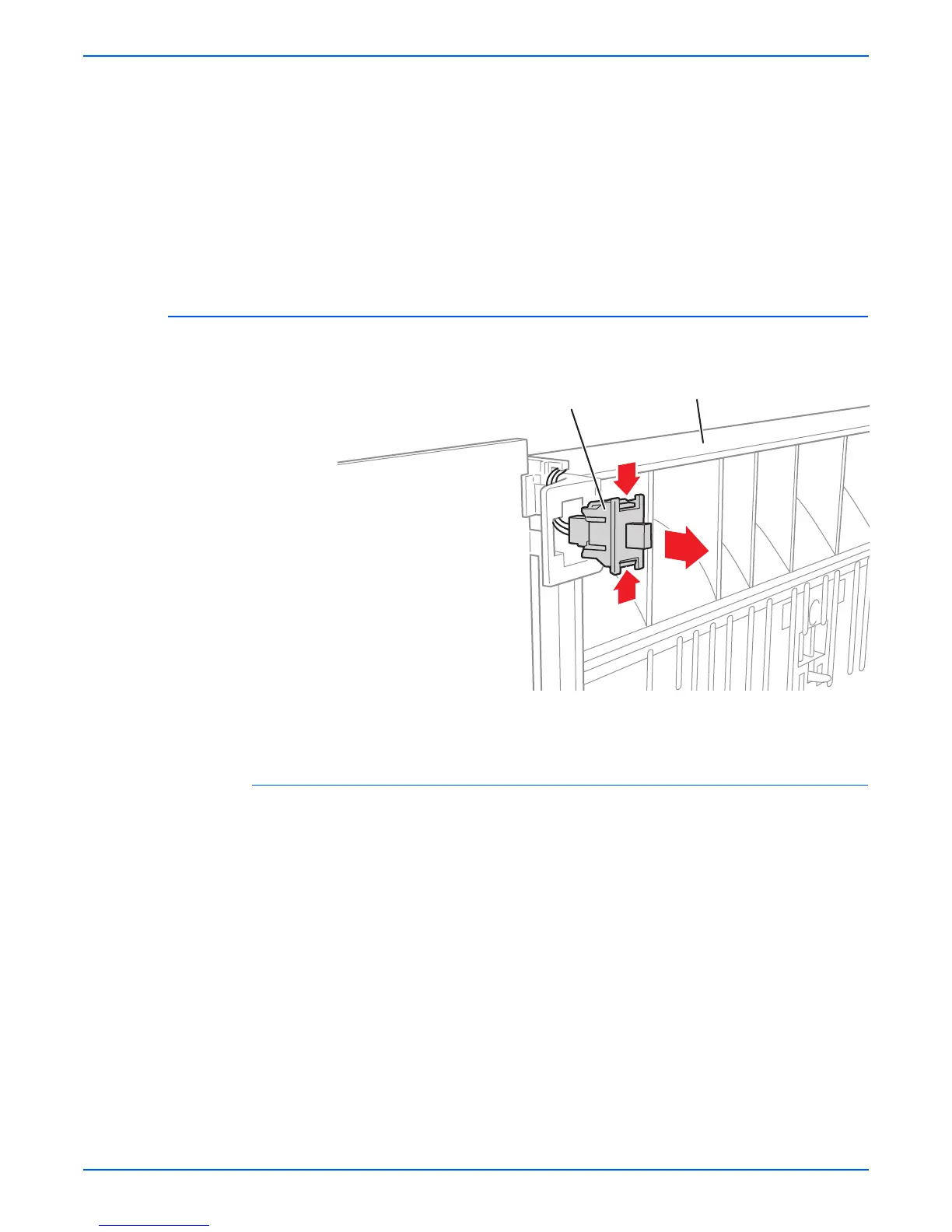

3. Compress the hooks on the top and bottom of the switch and slide it out of
the housing.
1.Interlock switch 2.Housing
s4500-250
1
2
