Xerox Phaser 4510 - Skips;Smears

Phaser 4500/4510 Service Manual 5-11
Print-Quality Troubleshooting
Skips/Smears
Actions and Questions Yes No

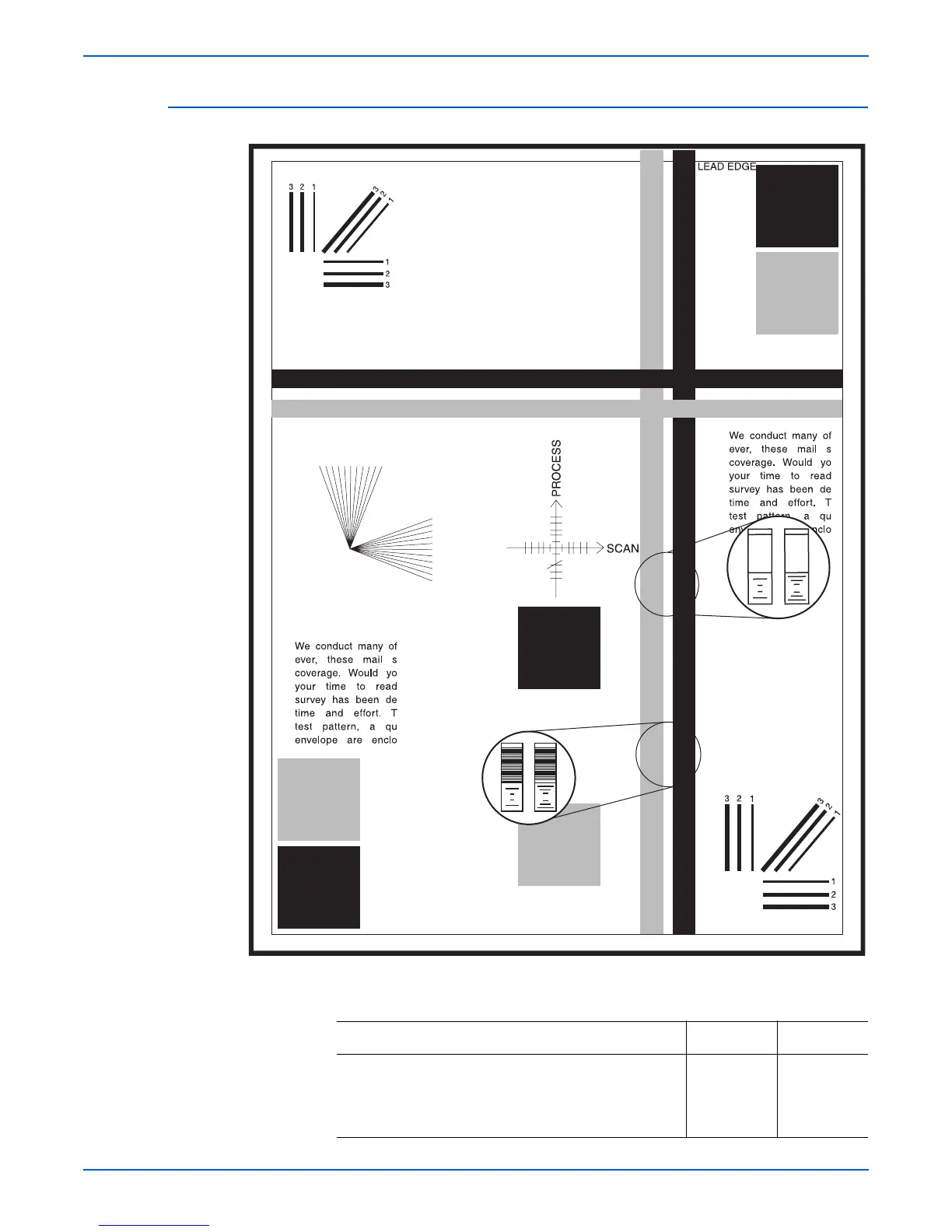

Inspect the ladder chart test pattern as shown in the
figure.
Is the pattern free from skips and smears?
Go to “Spots”
on
page 5-12.
Go to “Skips
and Smears”
on
page 5-48.
Test Print
Test Print
Phaser4500-030129-2-S
Phaser4500-030129-2-S
8.5x11 (SEF)
8.5x11 (SEF)
s4510-274
Skip
Smear
