Phaser 4500/4510 Service Manual 2-3
Theory of Operation
10. Two-sided printing reverses the direction of the exit rollers to route the
paper through the duplex unit rollers and back to the registration roller. A
sensor in the duplex unit detects the presence of paper.

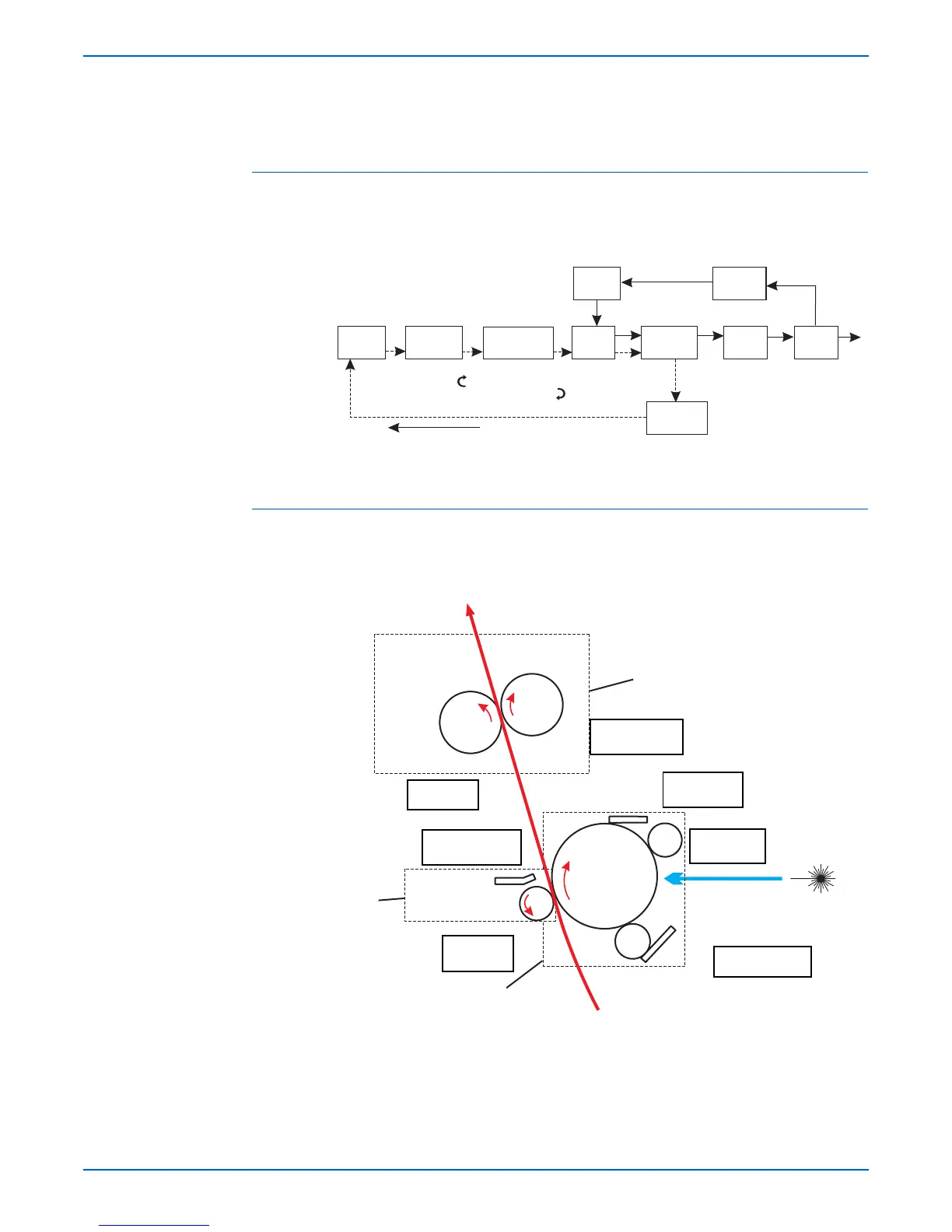

Block Diagram of the Print Cycle
The block diagram of the print cycle shows the sequence of events for the
xerographic process (dashed lines) and the paper flow (solid lines) into and
out of the printer.
Components Associated with the Xerographic Process
This cut-away side view of the printer shows the location of individual
components within the printer, and the major components that are directly
related to the print cycle and to the paper path.
s4500-007
1
Charge
2
Exposure
3
Development
4
Paper
Transport
5
Transfer
Paper Enters
6
Discharge
7
Fusing
Paper Exit
8
Cleaning
Two-sided
Printing
10
9
Xerographic Cycle
Cycle Repeats for the Next Print
Fuser Assembly
Print Cartridge
Paper
T
ransport
Laser Beam
Magnetic Roller
Charge Metering Blade
Cleaning
Blade
Detack Saw
Paper
Drum
BCR
Pressure
Roller
Heat Roller
s4500-008
Transfer Roller
1. Charging
3. Development
5. Transfer
6. Discharge
7. Fusing
2. Exposure
8. Cleaning

Xerox Phaser 4510 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	43 ppm
Maximum internal memory	512 MB
Sound power level (standby)	28 dB
Sound pressure level (printing)	56.1 dB
Total input capacity	1350 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	150 sheets
I/O ports	Parallel (IEEE 1284), USB 2.0
Power supply type	220 V
Weight (imperial)	45.2 lbs
Power consumption (active)	675 W
Acoustic power emissions (active, print, copy or scan)	71.9 dB
Envelopes sizes	B5, C5, DL
Custom media width	76 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 356 mm
Paper tray media types	Bond paper, Coated paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), index card, Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Supported network protocols (IPv4)	USB/Parallel, 10/100 Base-TX Ethernet
PCL fonts	81
Printer fonts	PCL, PostScript
Maximum duty cycle	250000 pages per month
Recommended duty cycle	25000 pages per month
Number of PostScript fonts	139
Number of print cartridges	1
Display	LCD
Certification	EMC Directive 89/336/EEC, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS 2002/95/EC
Operating temperature (T-T)	41 - 95 °F
Operating relative humidity (H-H)	15 - 85 %
Power consumption (standby)	80 W
Power consumption (PowerSave)	18 W
Package weight	49896 g
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Dimensions (WxDxH)	630 x 630 x 1194 mm
