Phaser 4500/4510 Service Manual 8-57
FRU Disassembly
5. Remove the six 6 mm machine screws that attach the gear assembly
housing to the frame.

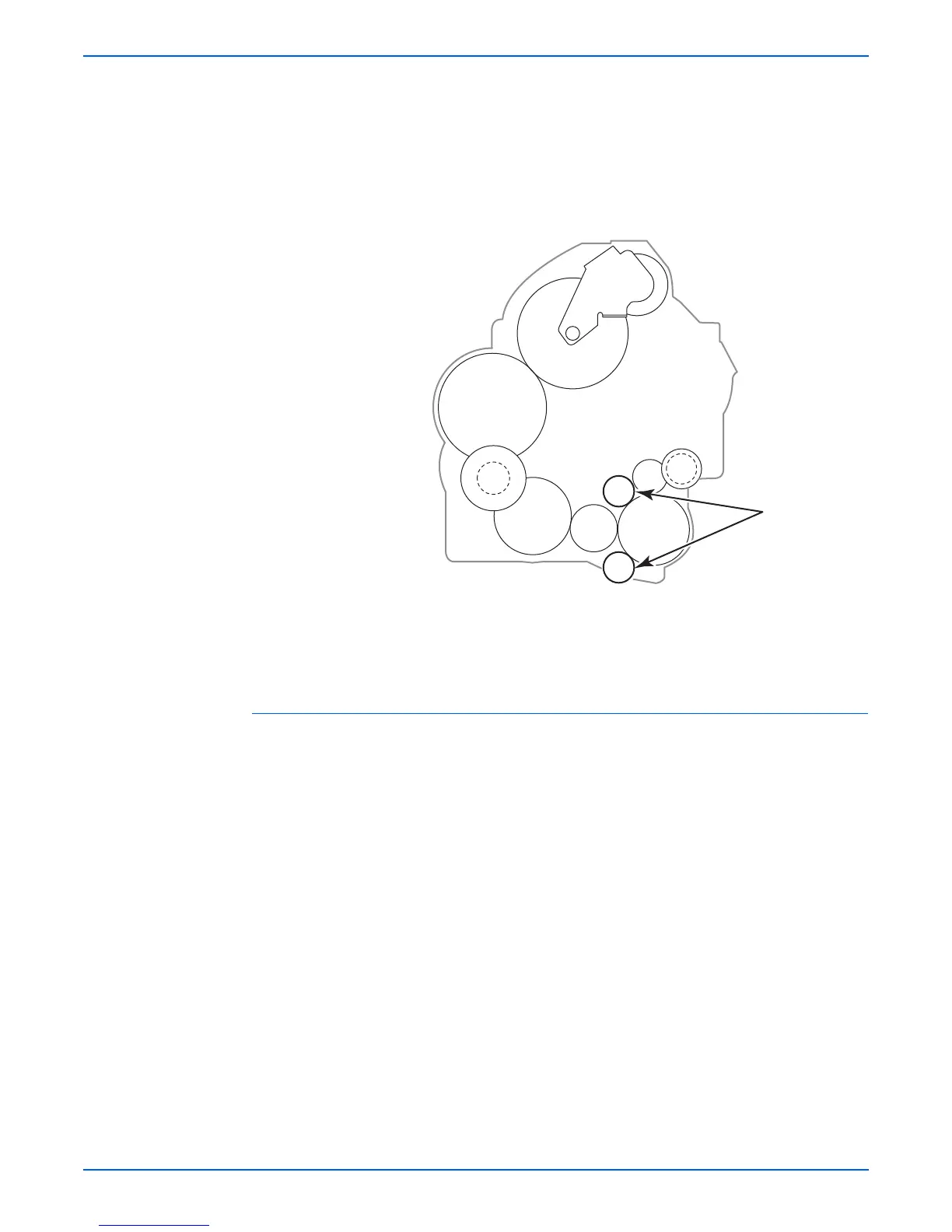

Note
The gears pointed out in this figure are not secured on their shafts
and may come off when you remove the gear assembly housing. Be
careful not to drop them.
6. Release the hooks of the gear assembly housing, and remove it from the
frame.
Replacement Notes:
■ When installing, engage the gears of the gear assembly housing, main
motor, and gear assembly plate by rotating tray 1 and tray 2 feeder
clutches while pressing inward on the gear assembly. Verify the plastic
gear housing is flush against the chassis sides before tightening screws.
After assembling, rotate the main motor by hand to check the
engagement of the gears.
■ Be sure that screw “A”, the 6 mm screw (item 2 in the figure on the
previous page) is returned to its proper hole.
s4500-140
To Next Page
