8-118 Phaser 4500/4510 Service Manual
FRU Disassembly
Replacement:
1. Lift up the stack full actuator in the direction of the arrow (1), and insert it
to the hook. Move the stack full actuator in the opposite direction of the
arrow (2) to install.
Note
When installing the stack full actuator to the stacker, engage the
actuator with the stack full shaft as shown in the figure.
2. Install the stacker cover (page 8-113).
Note
After installation, manually move the left flapper and verify that the
stack full actuator moves together with the left flapper.

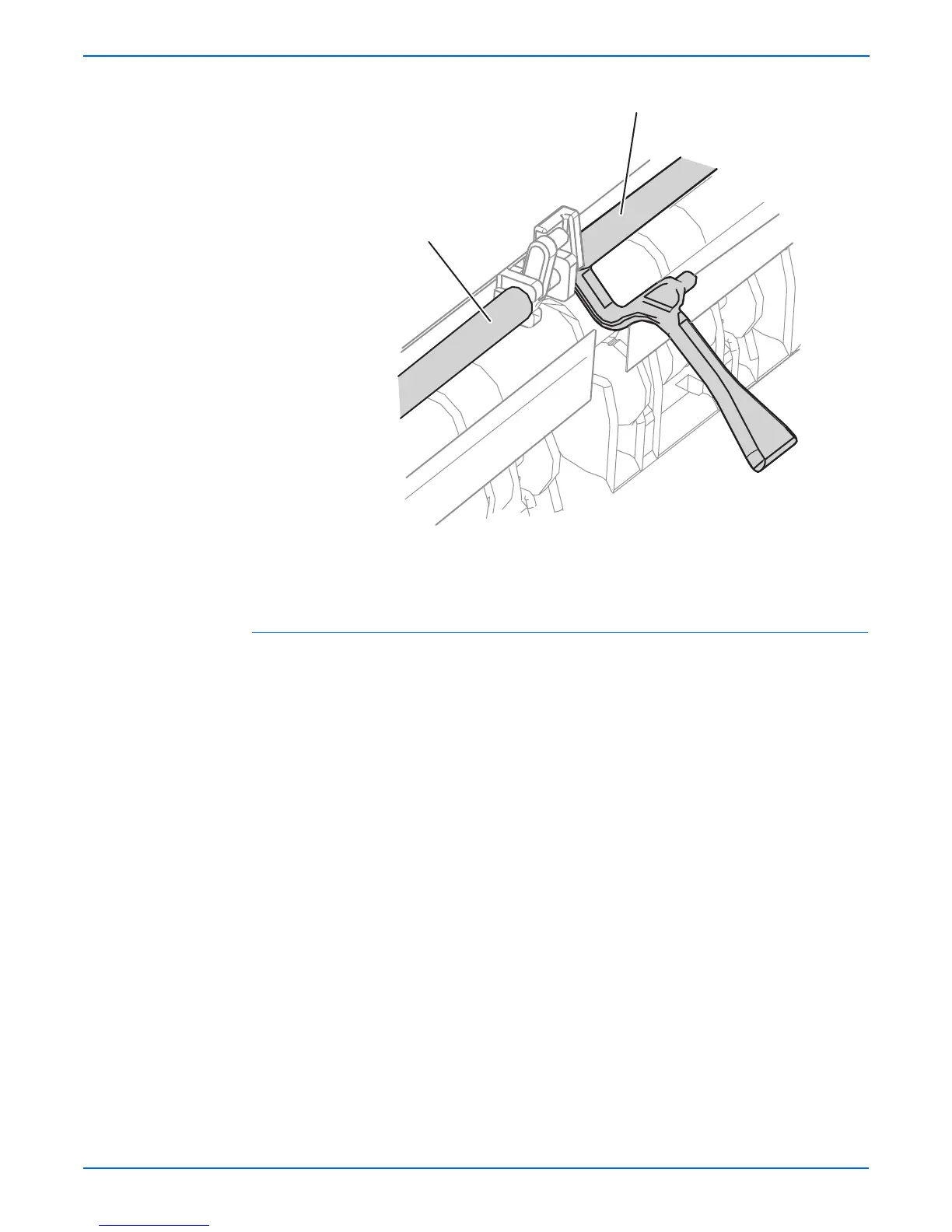

1.Stack full shaft 2.Stack full actuator
s4500-207
1
2
