8-14 Phaser 4500/4510 Service Manual
FRU Disassembly
Replacement Note:
■ While installing the Retard Holder, ensure that both ends of the coil spring
under the holder are properly engaged with two boss pins. Check that it
springs back to its normal position when depressed and released.

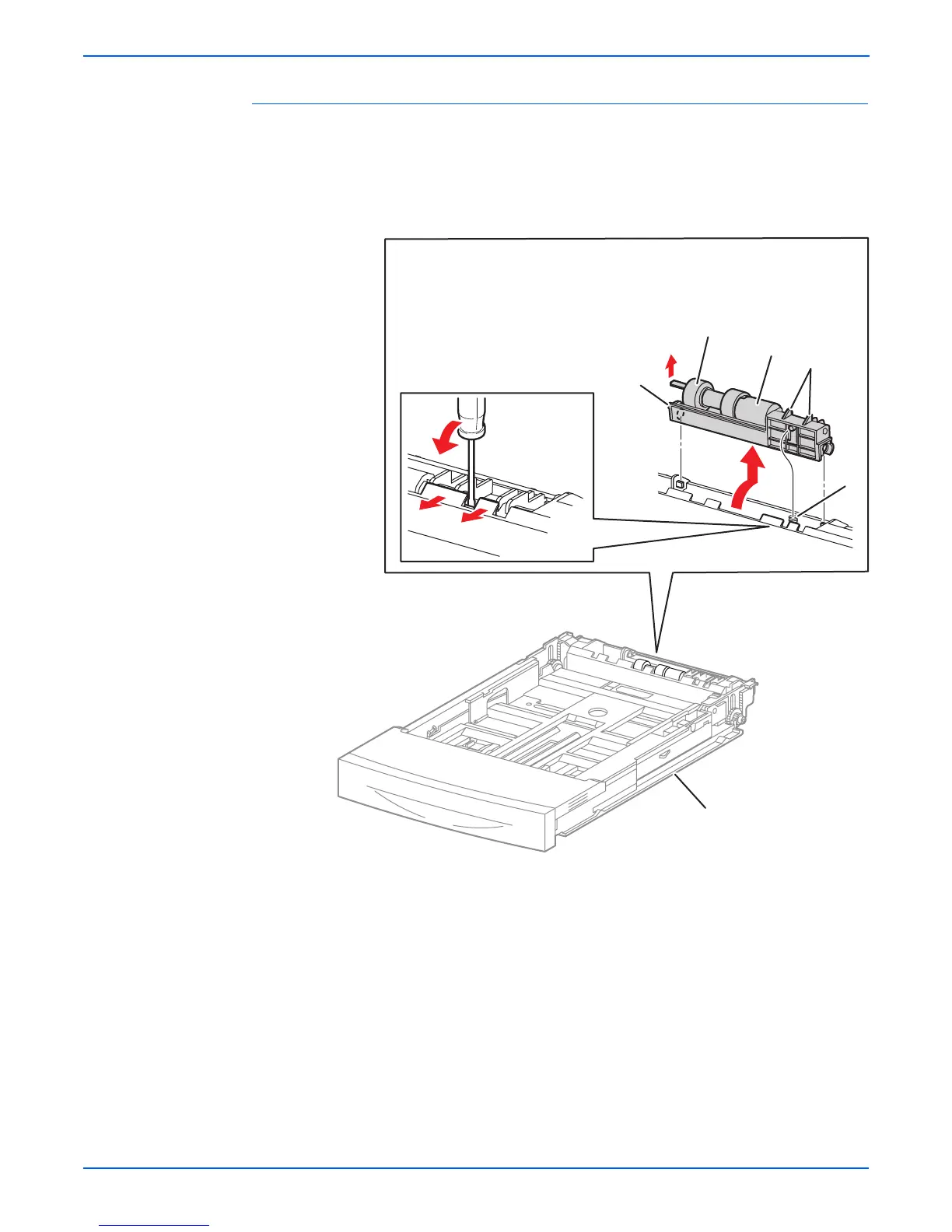

1.Retard roller 4.Retard Holder
2. Friction Clutch 5.Retard Spring
3.Hooks 6.150- or 550-sheet paper cassette
s4510-063
1
4
2
3
5
6
To Next Page
