Xerox Phaser 4510 Service Manual

10-28 Phaser 4500/4510 Service Manual

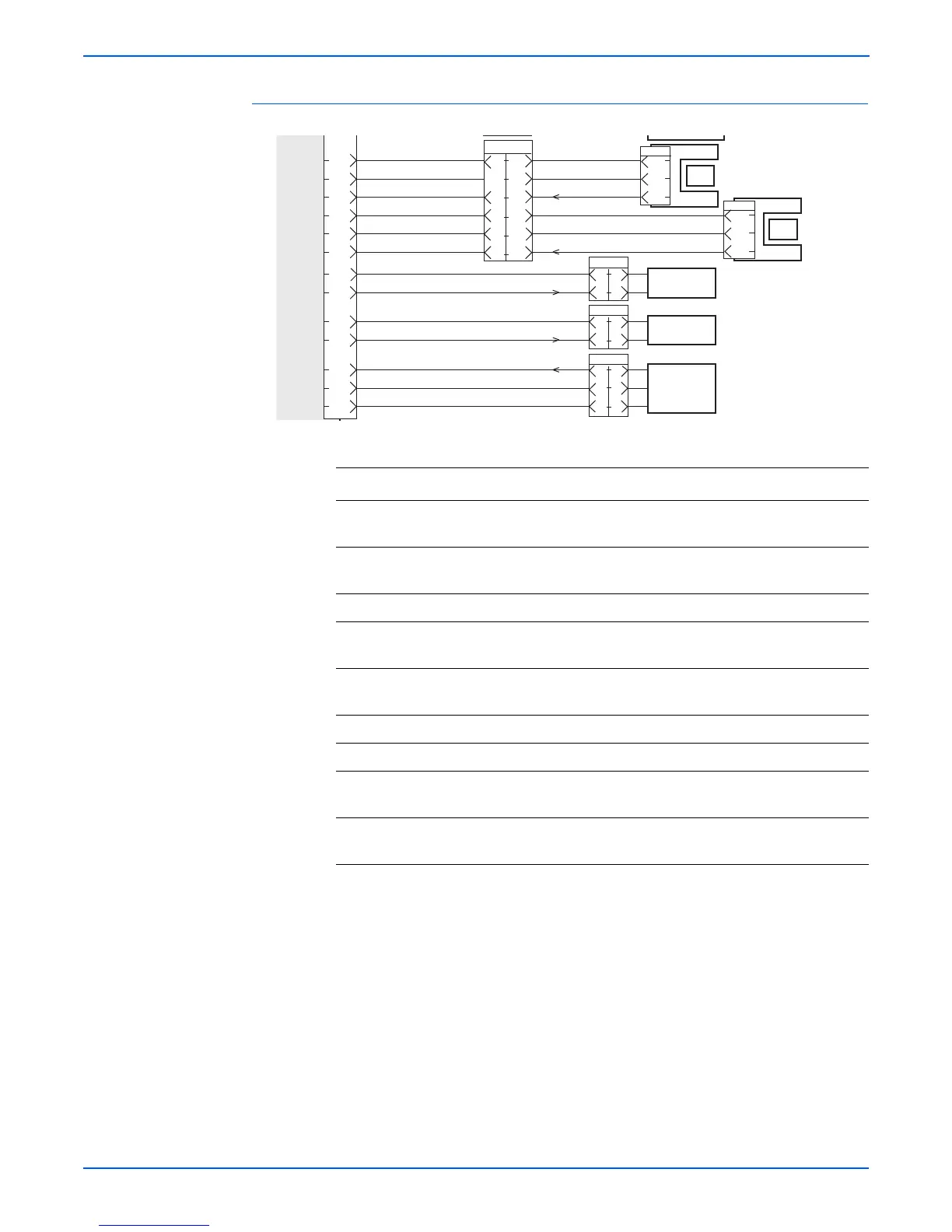

Wiring Diagrams
P4510: Wiring Difference
Signal line name Description
/LOW-PAPER2 SNR
ON
Signal from low paper sensor. This signal goes Low when
the flag moves out of the sensor.
/NO-PAPER2 SNR ON Signal from the no paper sensor of Tray2. This signal goes
Low when the flag moves out of the sensor.
CLUTCH-TRAY2 ON Control signal for tray 2 feed clutch. Low: ON / High: OFF
/NO-PAPER1 SNR ON Signal from the no paper sensor of Tray1. This signal goes
Low when the flag moves out of the sensor.
/REG SNR ON Signal from registration sensor. This signal goes Low when
the flag moves out of the sensor.
CLUTCH-TRAY1 ON Control signal for tray 1feed clutch. Low: ON / High: OFF
CLUTCH-REGI ON Control signal for registration clutch. Low: ON / High: OFF
FAN ALARM Fan monitor signal. This signal goes High if there is a trouble
with main fan.
D OUT Signal indicating detection of toner in the print cartridge,
from toner sensor.
TR Harness Assy
6
7
8
9
10
11
12
13
14
15
16
17
18
6
5
4
3
2
1
1
2
3
4
5
6
PULL UP 3.3V
LG
/NO-PAPER1 SNR ON
PULLUP 3.3V
/REG SNR ON
LG
24V DC
24V DC
24V RTN
FAN ALARM
24V DC
CLUTCH-TRAY1 ON
CLUTCH-REGI ON
P/J245
1
2
2
1
P/J243
1
3
2
3
1
2
P/J244
2
1
1
2
P/J242
PH Clutch Assy
Sensor No Paper
Registration
Sensor
Registration Clutch
Main Fan 80
3
2
1
P/J240
3
2
1
P/J241

Xerox Phaser 4510 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	43 ppm
Maximum internal memory	512 MB
Sound power level (standby)	28 dB
Sound pressure level (printing)	56.1 dB
Total input capacity	1350 sheets
Total output capacity	500 sheets
Maximum input capacity	1800 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	150 sheets
I/O ports	Parallel (IEEE 1284), USB 2.0
Power supply type	220 V
Weight (imperial)	45.2 lbs
Power consumption (active)	675 W
Acoustic power emissions (active, print, copy or scan)	71.9 dB
Envelopes sizes	B5, C5, DL
Custom media width	76 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 356 mm
Paper tray media types	Bond paper, Coated paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), index card, Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Supported network protocols (IPv4)	USB/Parallel, 10/100 Base-TX Ethernet
PCL fonts	81
Printer fonts	PCL, PostScript
Maximum duty cycle	250000 pages per month
Recommended duty cycle	25000 pages per month
Number of PostScript fonts	139
Number of print cartridges	1
Display	LCD
Certification	EMC Directive 89/336/EEC, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS 2002/95/EC
Operating temperature (T-T)	41 - 95 °F
Operating relative humidity (H-H)	15 - 85 %
Power consumption (standby)	80 W
Power consumption (PowerSave)	18 W
Package weight	49896 g
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Dimensions (WxDxH)	630 x 630 x 1194 mm
