Theory of Operation

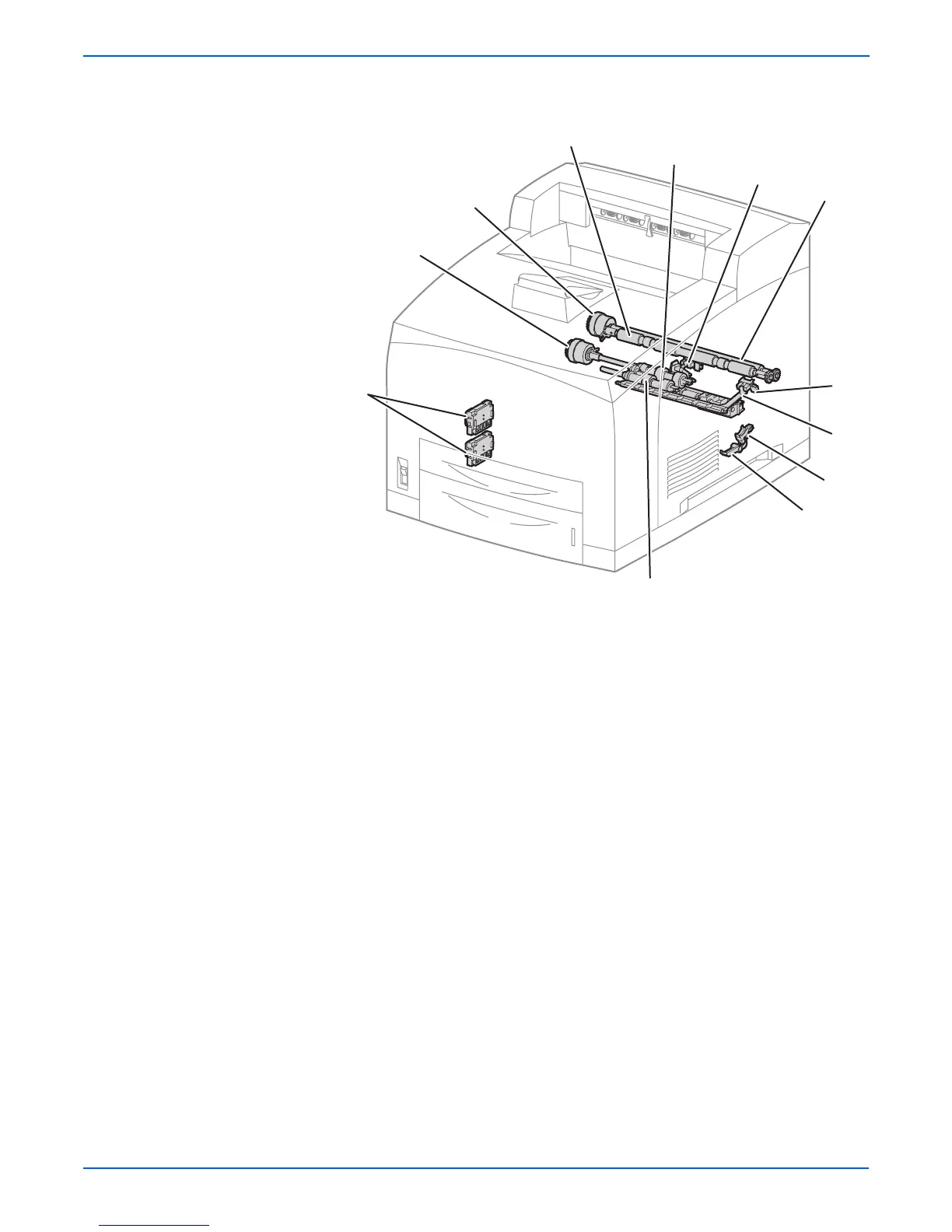

1.Paper size switch assembly 7.Metal registration roller
2.Feed clutch assembly 8.No paper sensor
3.Registration clutch 9.No paper actuator
4.Rubber registration roller 10.Low paper sensor
5.Feed roller 11.Low paper actuator
6.Registration sensor 12.Nudger roller
s4500-022
1
2
3
4
5
6
7
8
9
10
11
12
