Phaser 4500/4510 Service Manual 2-39
Theory of Operation
Optional 550-Sheet Feeder

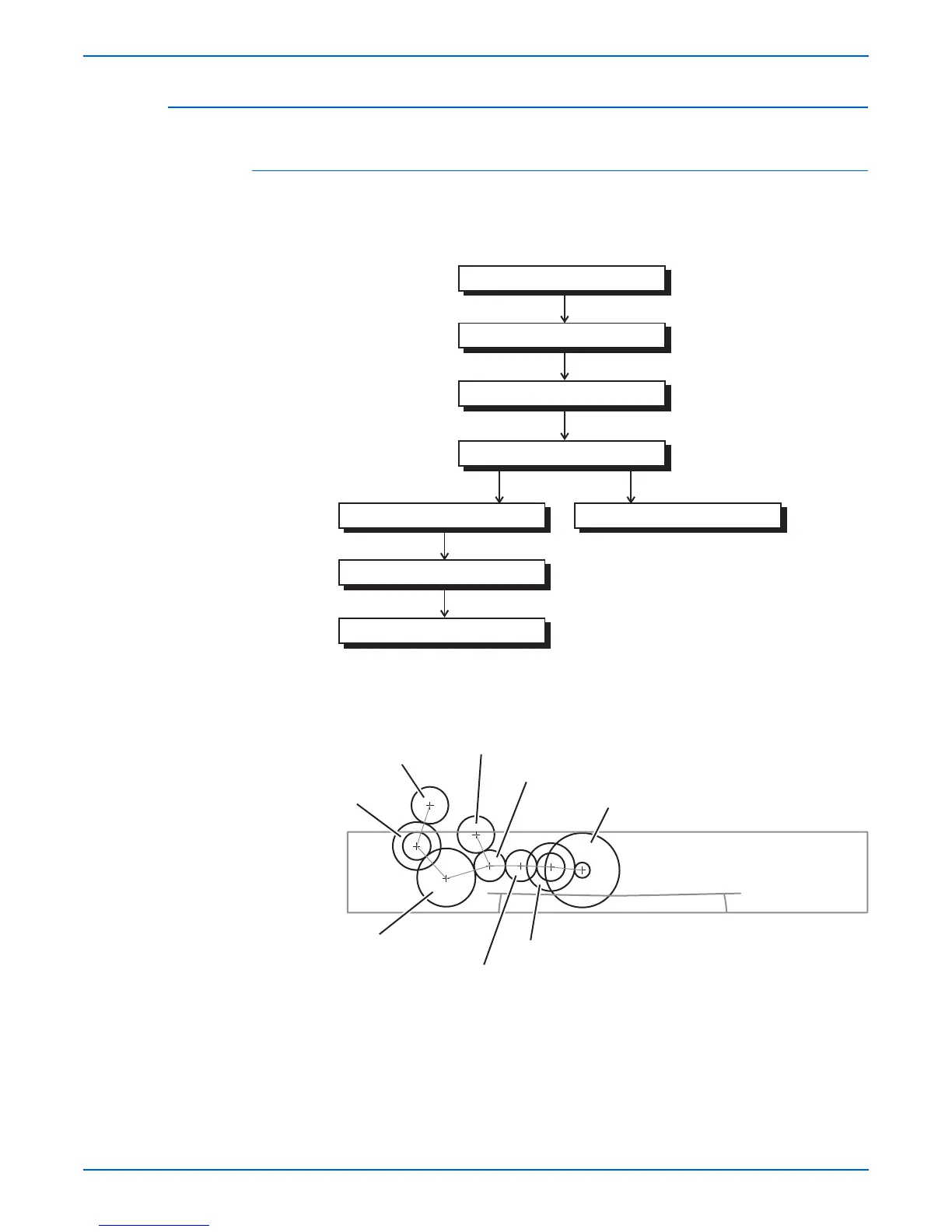

Drive Transmission Path
The rotating force of the feeder motor is transmitted by various gears to
components requiring mechanical driving force as shown in this flow chart
and the gear layout that follows.
Gear Layout
1.Optional feeder gear 6 5.Feeder motor
2.Turn roller clutch 6.Optional feeder gear 2
3.Feed clutch 7.Optional feeder gear 3
4.Optional feeder gear 4 8.Optional feeder gear 5
Feeder Motor
Optional Feeder Gear 2
Optional Feeder Gear 3
Optional Feeder Gear 4
Optional Feeder Gear 5 Feed Clutch Assembly
Optional Feeder Gear 6
Turn Roll Clutch
s4500-034
s4500-035
1
2
3
4
5
6
7
8
