Phaser 6128MFP Service Manual 4-19
General Troubleshooting
10. Press the Stop button to stop the Home Position Senosr test.
ADF Tray Sensor
1. Enter Service Diagnostics (page 4-4).
2. Place a sheet of media in the ADF Tray.
3. Perform the FAX/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Tray Sensor test.
4. Check the Control panel display for Status ON.
5. Press Stop to return one step higher menu.
6. Remove the media from the ADF Tray.
7. Perform the FAX/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Tray Sensor test.
8. Check the sensor "Status OFF"

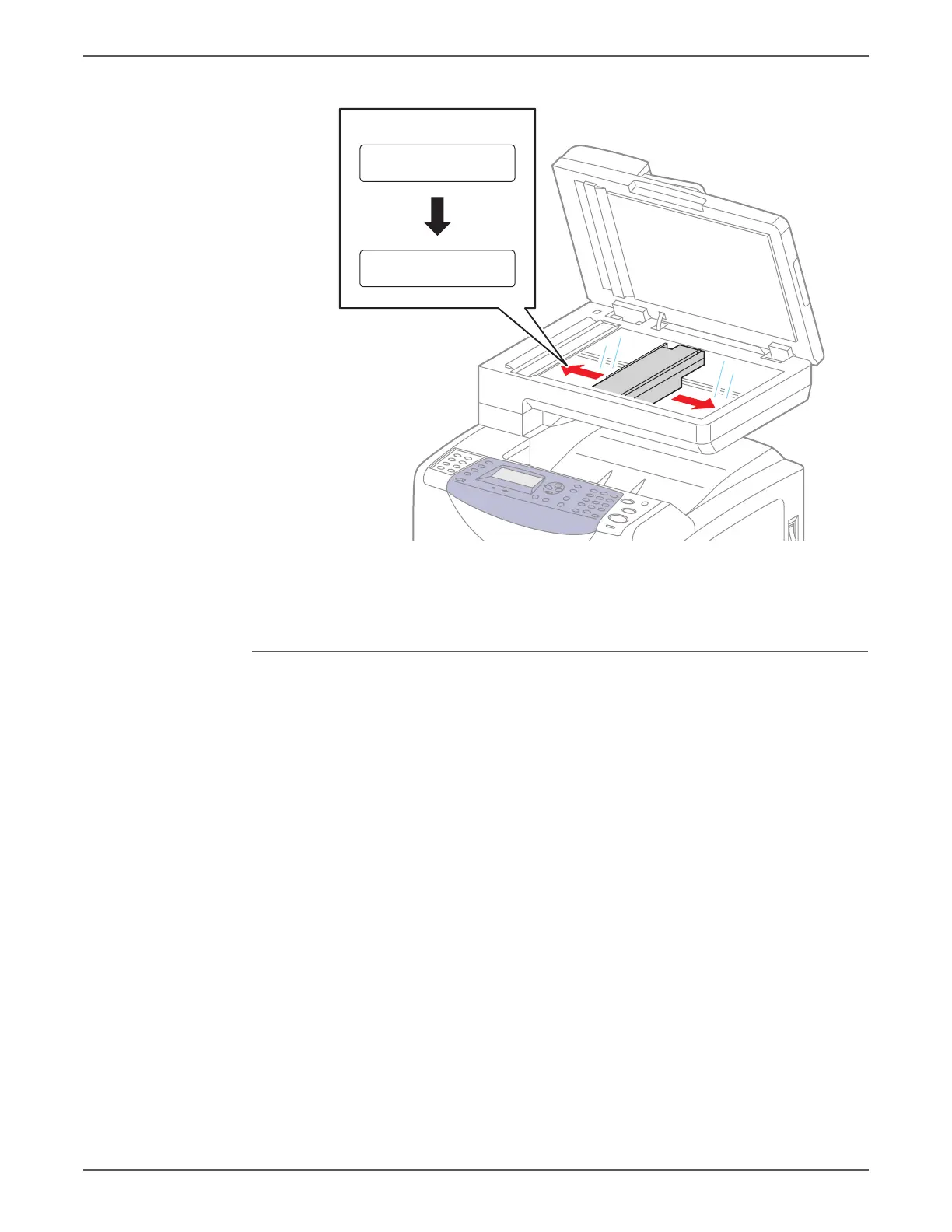

s6128mfp-066
Control Panel
Normal
Home Position Sensor
Status OFF
Home Position Sensor
Status ON
To Next Page
