4-20 Phaser 6128MFP Service Manual
General Troubleshooting
9. Press the Stop button to stop the ADF Tray Sensor test.
ADF Feed Sensor
1. Enter Service Diagnostics (page 4-4).
2. Open the ADF Cover.
3. Place a sheet of media in the ADF Feeder.
4. Perform the FAX/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Feed Sensor test.
5. Check the Control panel display for Status ON.
6. Press Stop to return one step higher menu.
7. Remove the media from the ADF Tray.
8. Perform the FAX/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Feed Sensor test.
9. Check the Control panel display for Status OFF.

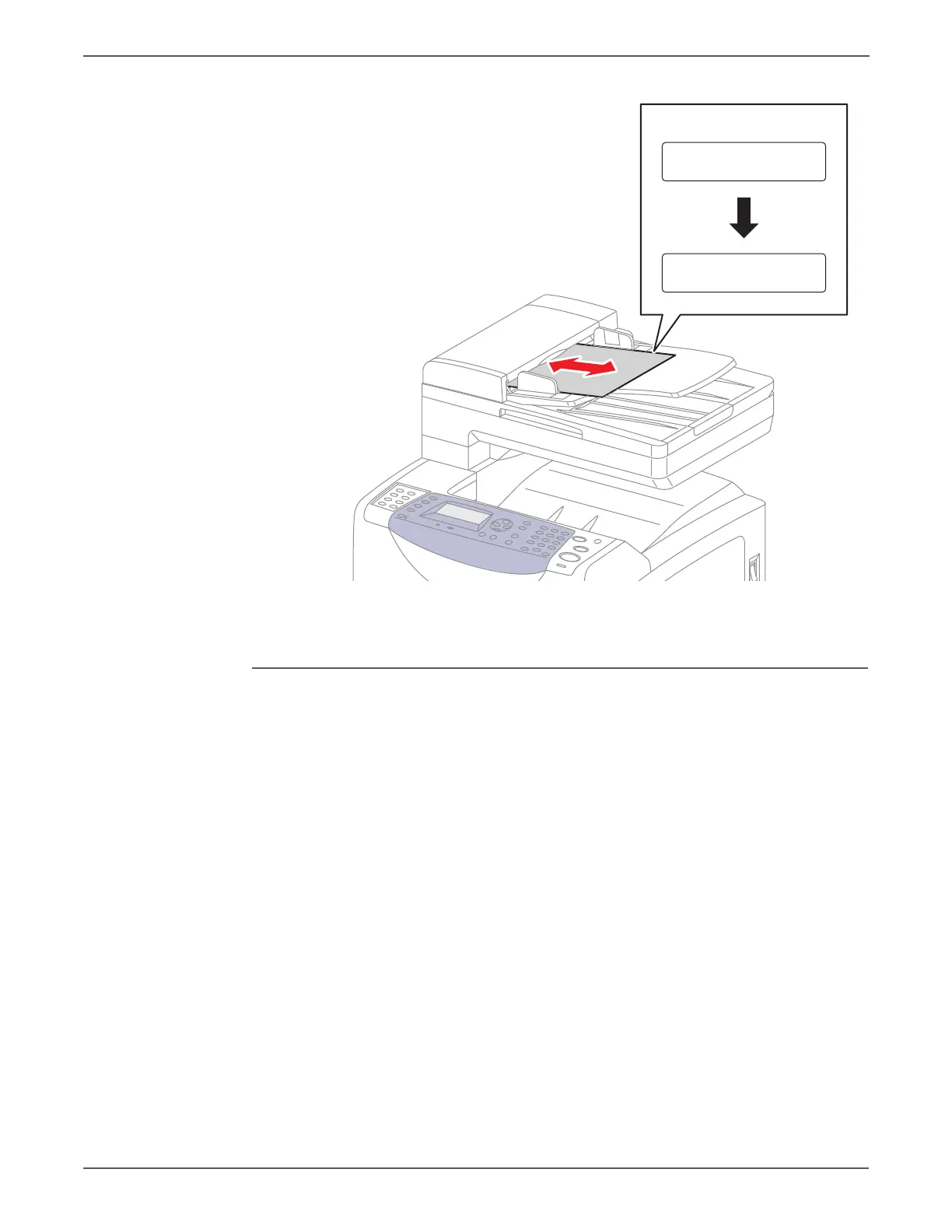

s6128mfp-067
Control Panel
Normal
Tray Sensor
Status OFF
Tray Sensor
Status OFF
To Next Page
