Phaser 6128MFP Service Manual 4-21
General Troubleshooting
10. Press the Stop button to stop the ADF Feed Senosr test.
ADF Cover Sensor
1. Enter Service Diagnostics (page 4-4).
2. Open the ADF Cover.
3. Perform the FAX/Scanner Diag > Scanner Maintenance > IIT I/O Check
>ADF Cover Sensor test.
4. Check the Control panel display for Status ON.
5. Press Stop to return one step higher menu.
6. Close the ADF cover.
7. Perform the FAX/Scanner Diag > Scanner Maintenance > IIT I/O Check
>ADF Cover Sensor test.
8. Check the Control panel display for Status OFF.

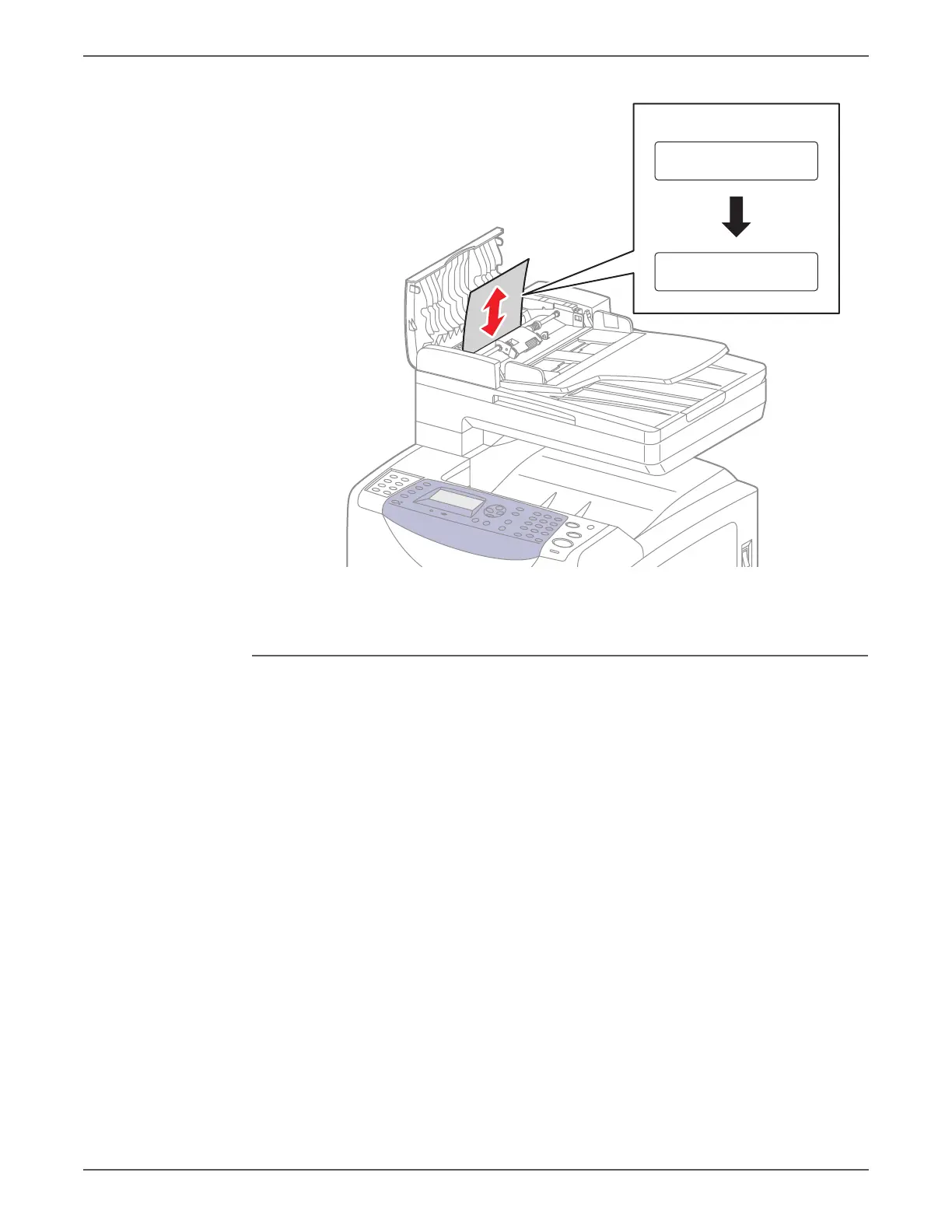

s6128mfp-068
Control Panel
Normal
Feed Sensor
Status ON
Feed Sensor
Status OFF
