9. Press the Stop button to stop the ADF Cover Senosr test.
Scanner Lamp
1. Enter Service Diagnostics (page 4-4).
2. Open the Platen Cover.
3. Perform the FAX/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Lamp test.
4. Press the Arrow buttons to select Set OFF.
5. Press OK to run the test.
6. Check that the Lamp is Off.
7. Press Stop to return one step higher menu.
8. Repeat the Lamp test FAX/Scanner Diag > Scanner Maintenance > IIT I/O
Check >Lamp test.
9. Press the Arrow buttons to select Set ON.
10. Check that the Lamp is ON.
s6128mfp-069
Control Panel
Normal

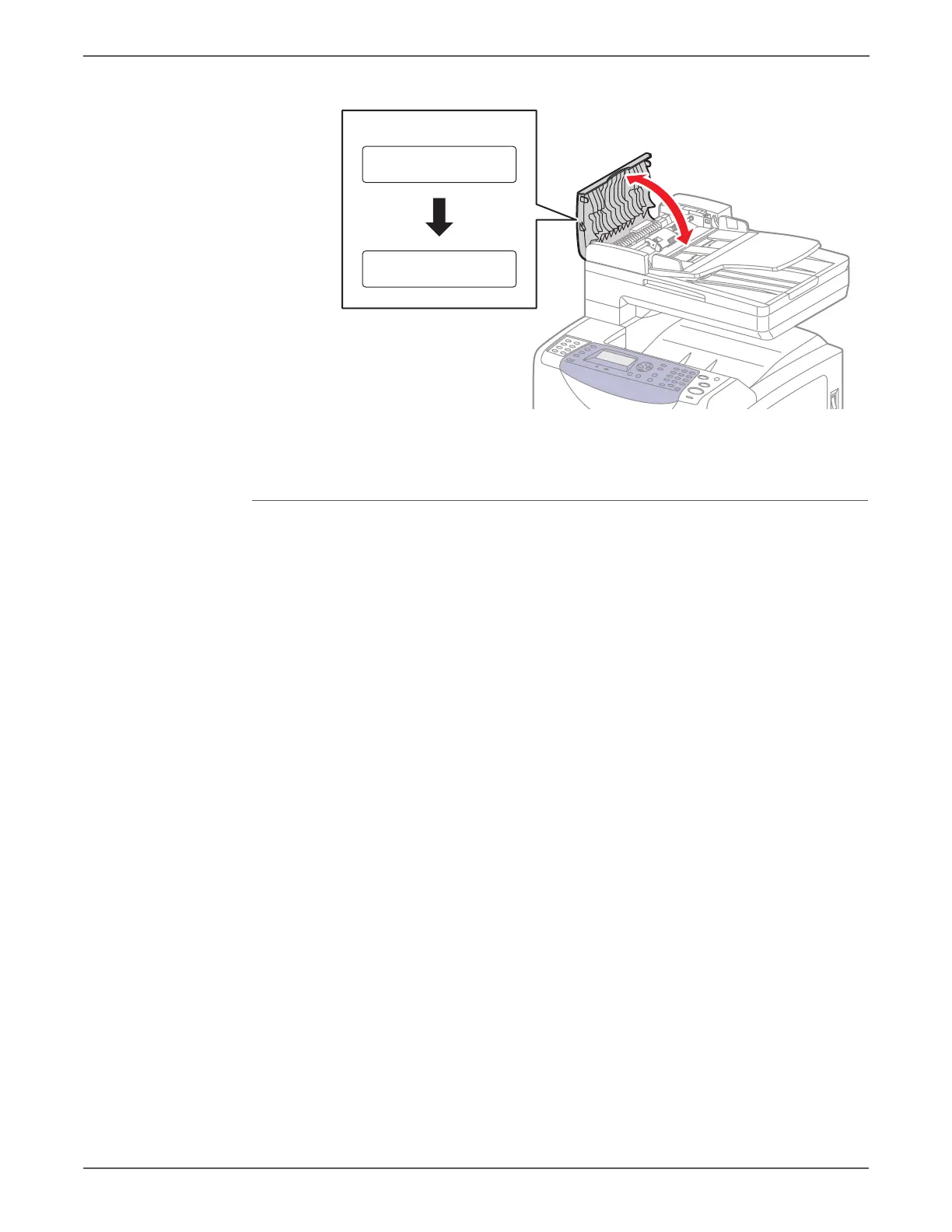

ADF Cover Sensor
Status ON
ADF Cover Sensor
Status OFF
