Phaser 6128MFP Service Manual 4-23
General Troubleshooting
11. Press Stop to stop the test.
FB Motor Test
The FB Motor automatically stops at the limit of travel in both directions.
1. Enter Service Diagnostics (page 4-4).

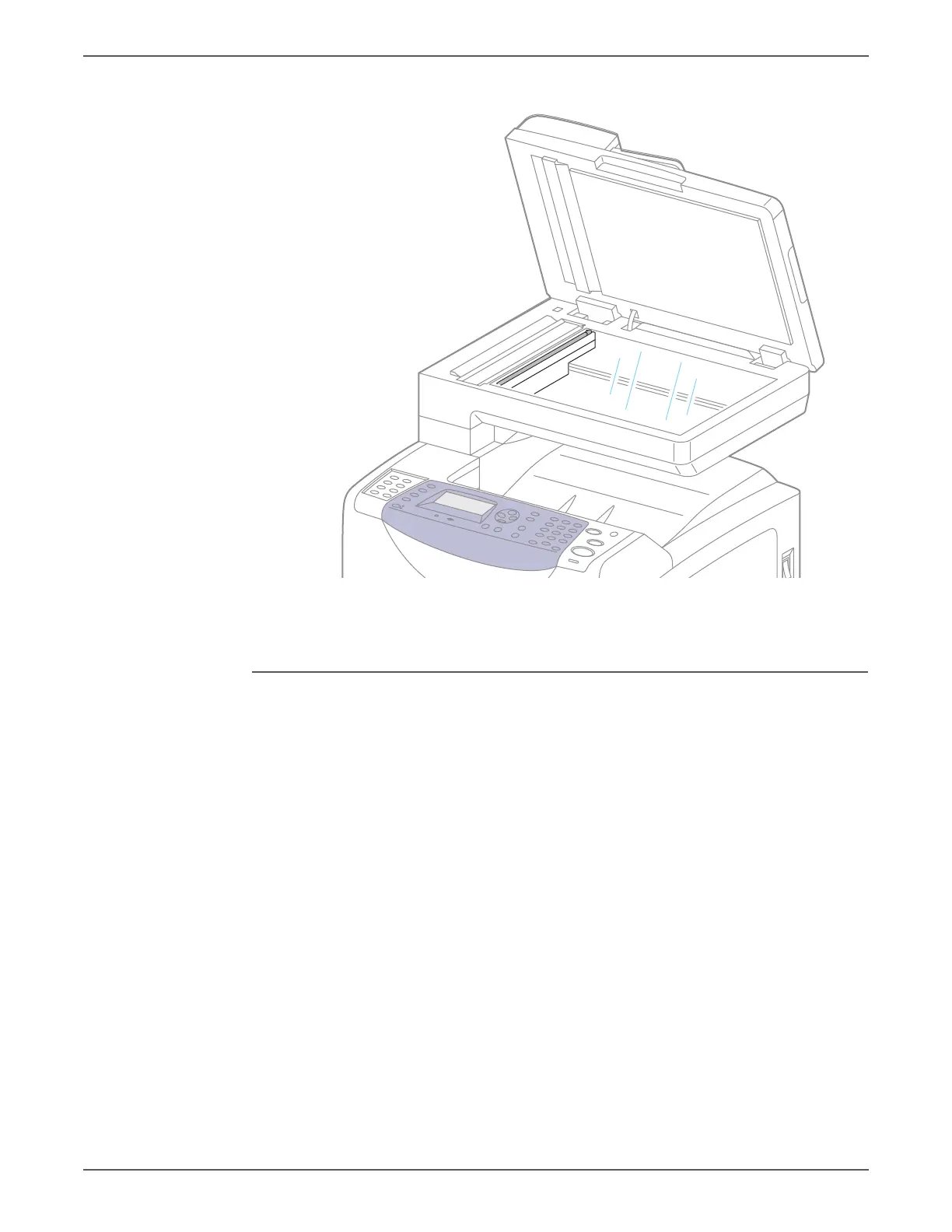

2. Open the Platen Cover.
3. Perform the FAX/Scanner Diag > Scanner Maintenance > IIT I/O Check >FB
Motor test.
4. Press the Arrow buttons to select Forward.
5. Press OK to run the test.
6. Check that the carriage moves to the Right.
7. Press Stop to return one step higher menu.
8. Repeat the Lamp test FAX/Scanner Diag > Scanner Maintenance > IIT I/O
Check >FB Motor test.
9. Press the Arrow buttons to select Reverse.
10. Check that the carriage move to the Left.
