Phaser 6128MFP Service Manual 4-35
General Troubleshooting
Registration Sensor
1. Enter Service Diagnostics (page 4-4).
2. Open the Front Cover.
3. Perform the Registration Sensor test: Engine Diag > Sensor Test > Regi
Sensor.

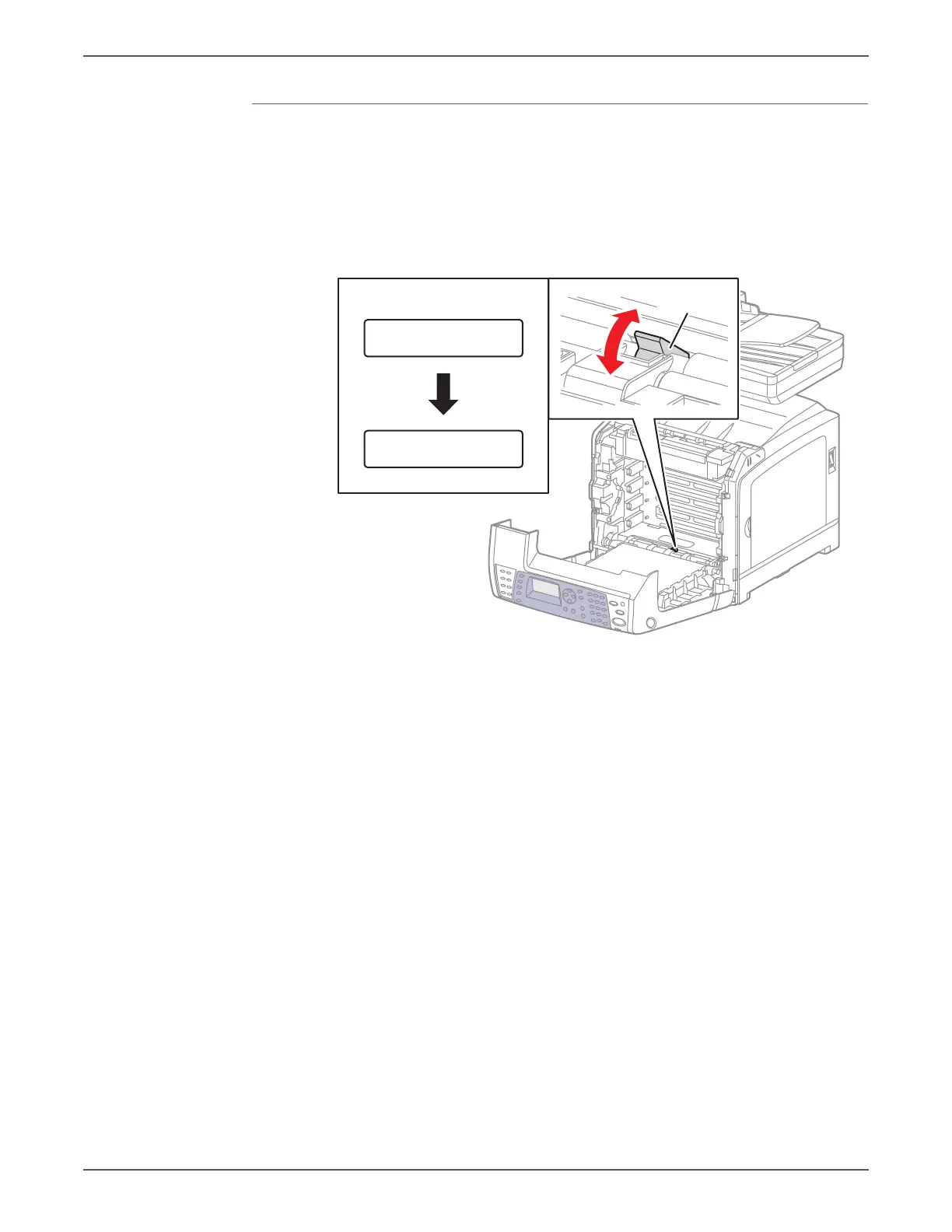

4. Operate the actuator while checking the information on the Control Panel
display. The Low and High values change from 0 up 99.
5. Press the Stop button to stop the Registration Sensor test.
s6128mfp-075
Control Panel
Normal
Actuator
Digital Input
DI- 3 L 0
Digital Input
DI- 3 L 1
To Next Page
