4-38 Phaser 6128MFP Service Manual
General Troubleshooting
Right Side Door Switch
1. Enter Service Diagnostics (page 4-4).
2. Perform the Side Switch test: Engine Diag > Sensor Test > Side Switch.

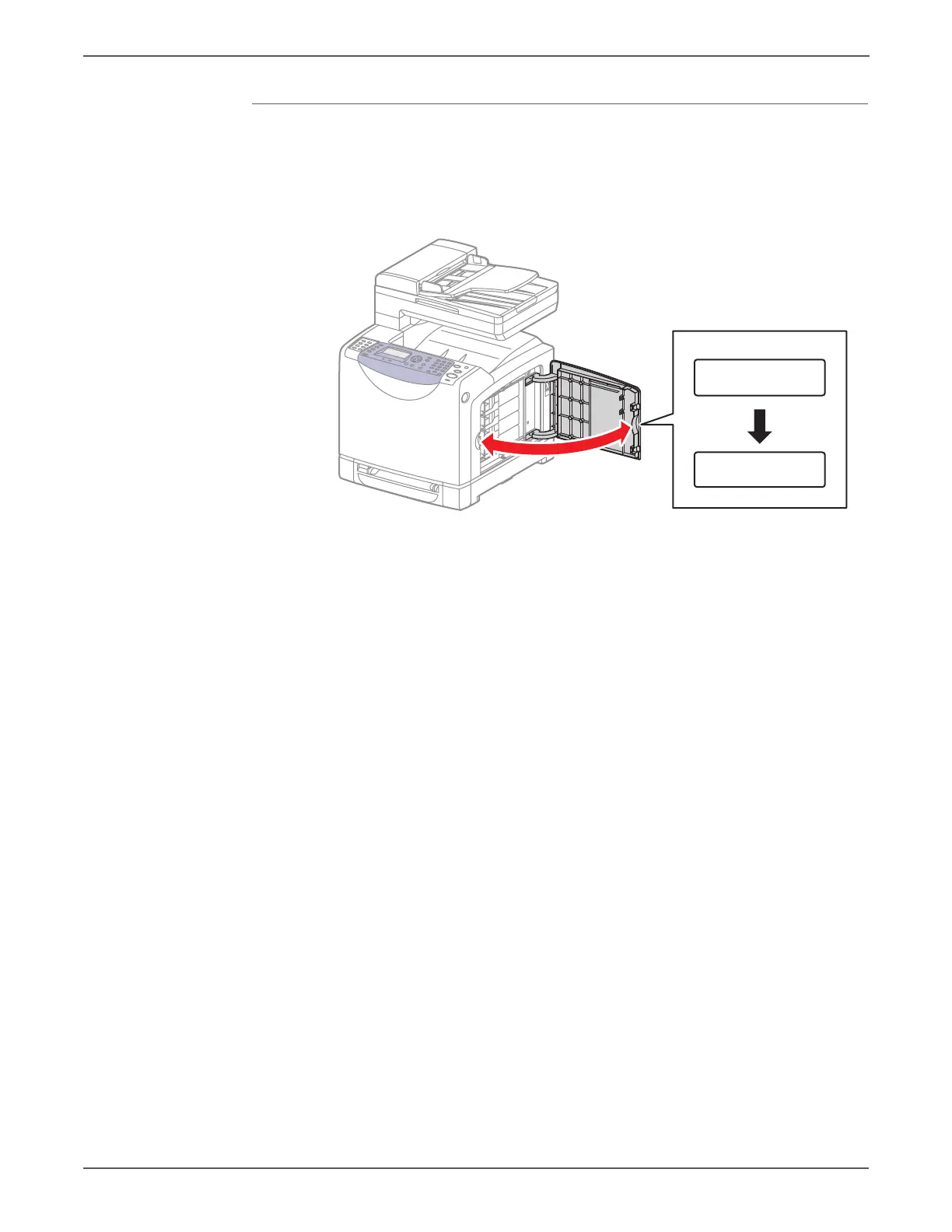

3. Open and close the Toner Access Door while checking the information on the
Control Panel display. The Low and High values change from 0 up to 99.
4. Press the Stop button to stop the Side Switch test.
Control Panel
Normal
s6128mfp-078
Digital Input
DI- 6 L 0
Digital Input
DI- 6 L 1
