Phaser 6128MFP Service Manual 8-83
Service Parts Disassembly

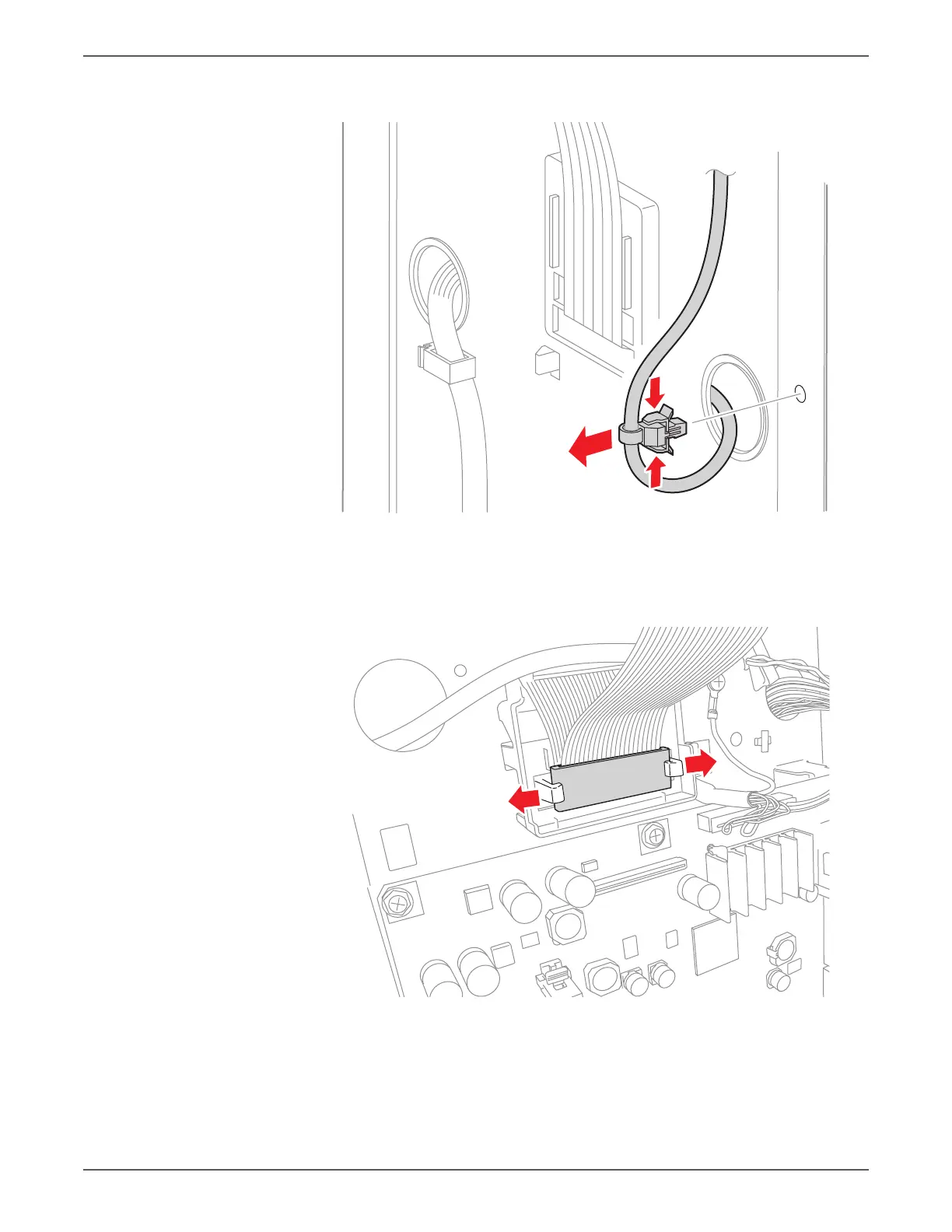

11. Remove the clamp that secures the ADF Assembly harness to the chassis.
12. Disconnect the ribbon cable from P/J1001 on the Image Processor Board.
13. Release 2 hooks of the FFC Holder to remove the Ferrite Core from the ribbon
cable.
s6128mfp-266
s6128mfp-267
