8-84 Phaser 6128MFP Service Manual
Service Parts Disassembly

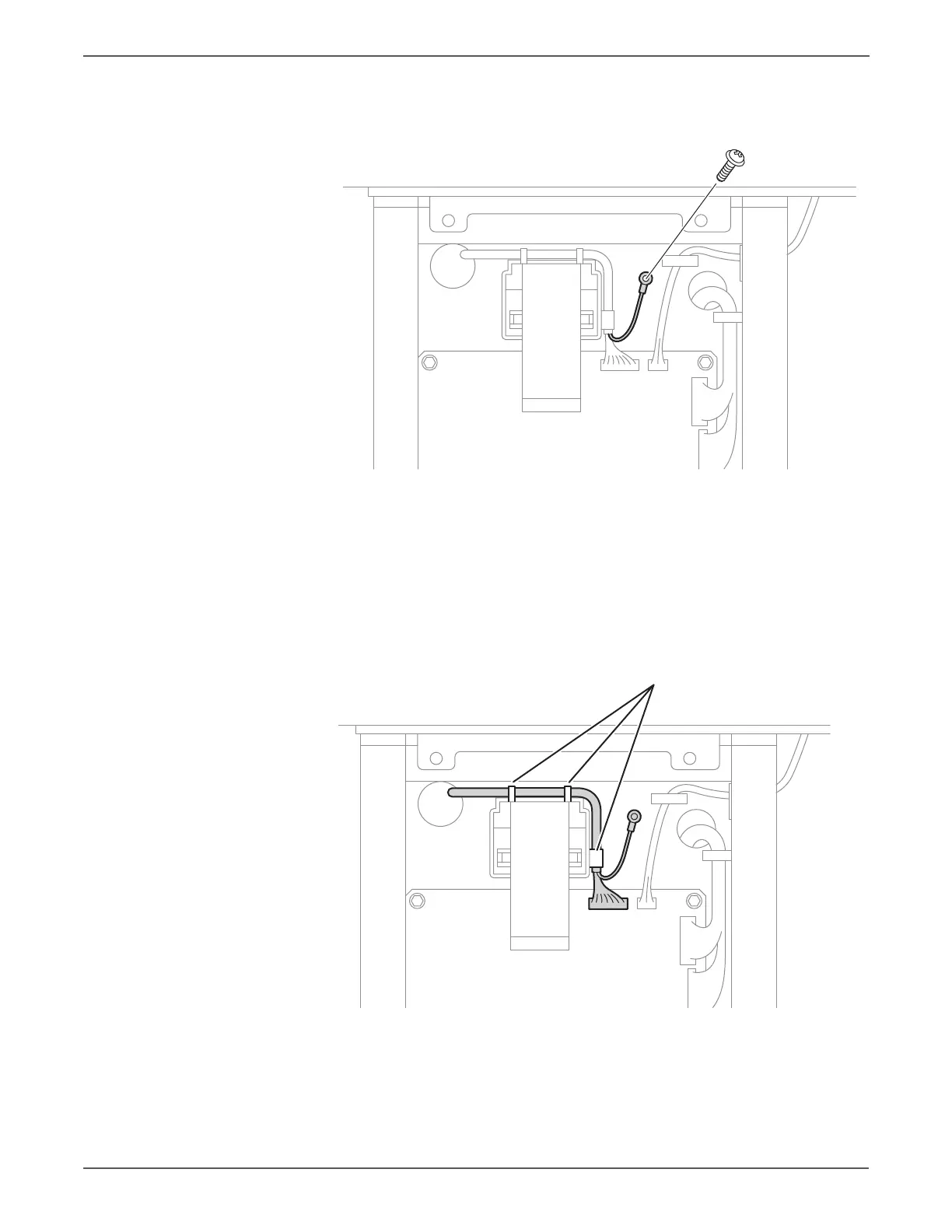

14. Remove 1 screw (silver, 6mm) that secures the ADF Assembly the ground wire.
The Ferrite Core is extremely fragile. Use care when removing the core from
the ribbon cable.
15. Disconnect P/J1003 on the Image Processor Board and release the ADF
Assembly harness from the three hooks on the Ferrite Core holder, pull it
through the hole in the chassis.
To Next Page
