Phaser 6128MFP Service Manual 2-43
Theory of Operation

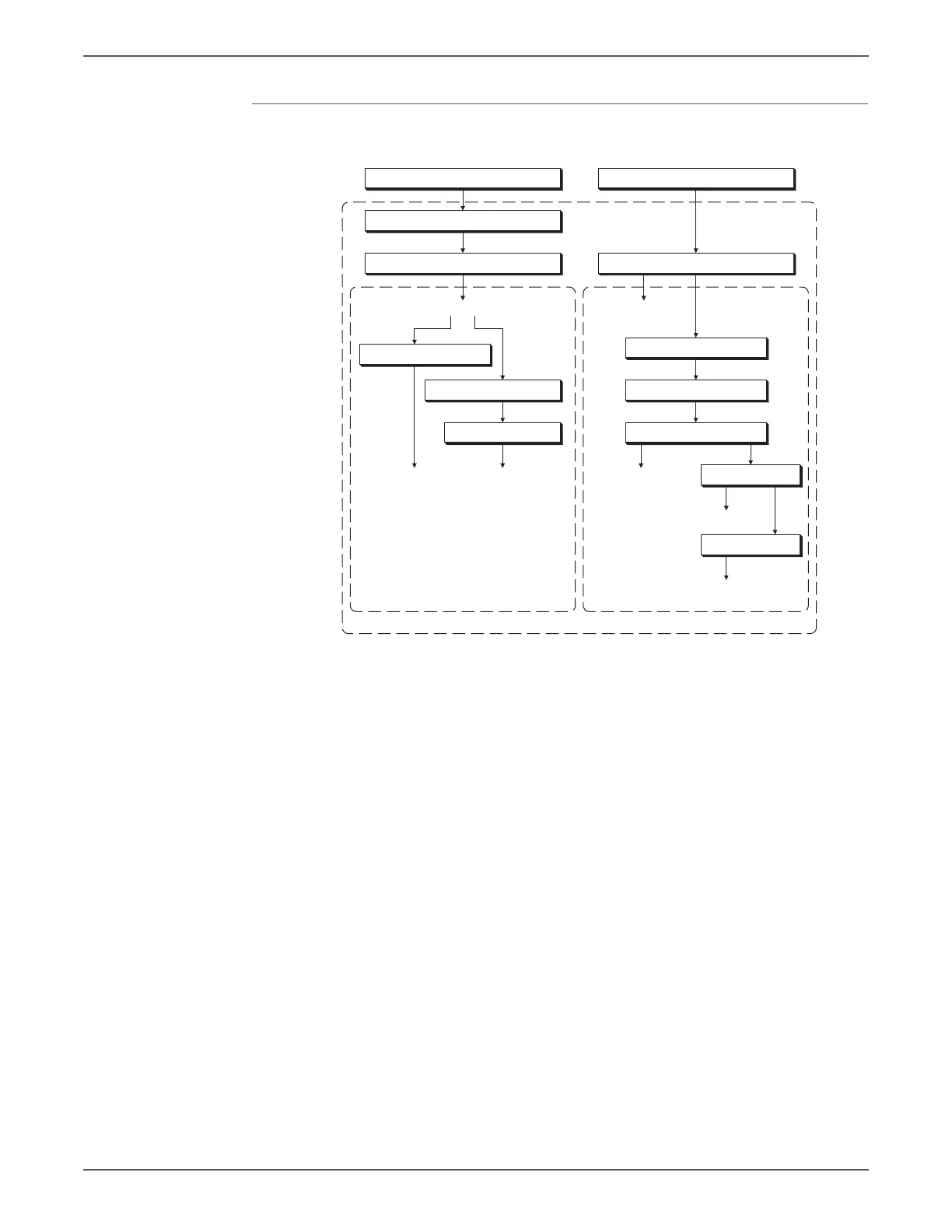

Development and Excess Toner Collection
Main Drive Sub Drive
Print Cartridge Gear 1
Xerographics Housing (Y, M, C, K)
[ Drum ]
Print Cartridge Gear 2
Cleaning Auger Gear
Magnet Idler Gear
Paddle Idler Gear
Paddle Gear
Auger Gear
Auger Gear
Side Auger Idler Gear
Side Auger Gear
[ Side Cleaning Auger ] [ Developer Paddle ]
[ Auger Front ]
[ Auger Rear ]
[ Auger ]
Developer Housing (Y, M, C, K)
[ Magnet Roller ]
Magnet Gear (Y, M, C, K)
[ Name Of Moving Parts ]
Development And Excess Toner Collecting
Imaging Unit
s6128-042
