2-44 Phaser 6128MFP Service Manual
Theory of Operation

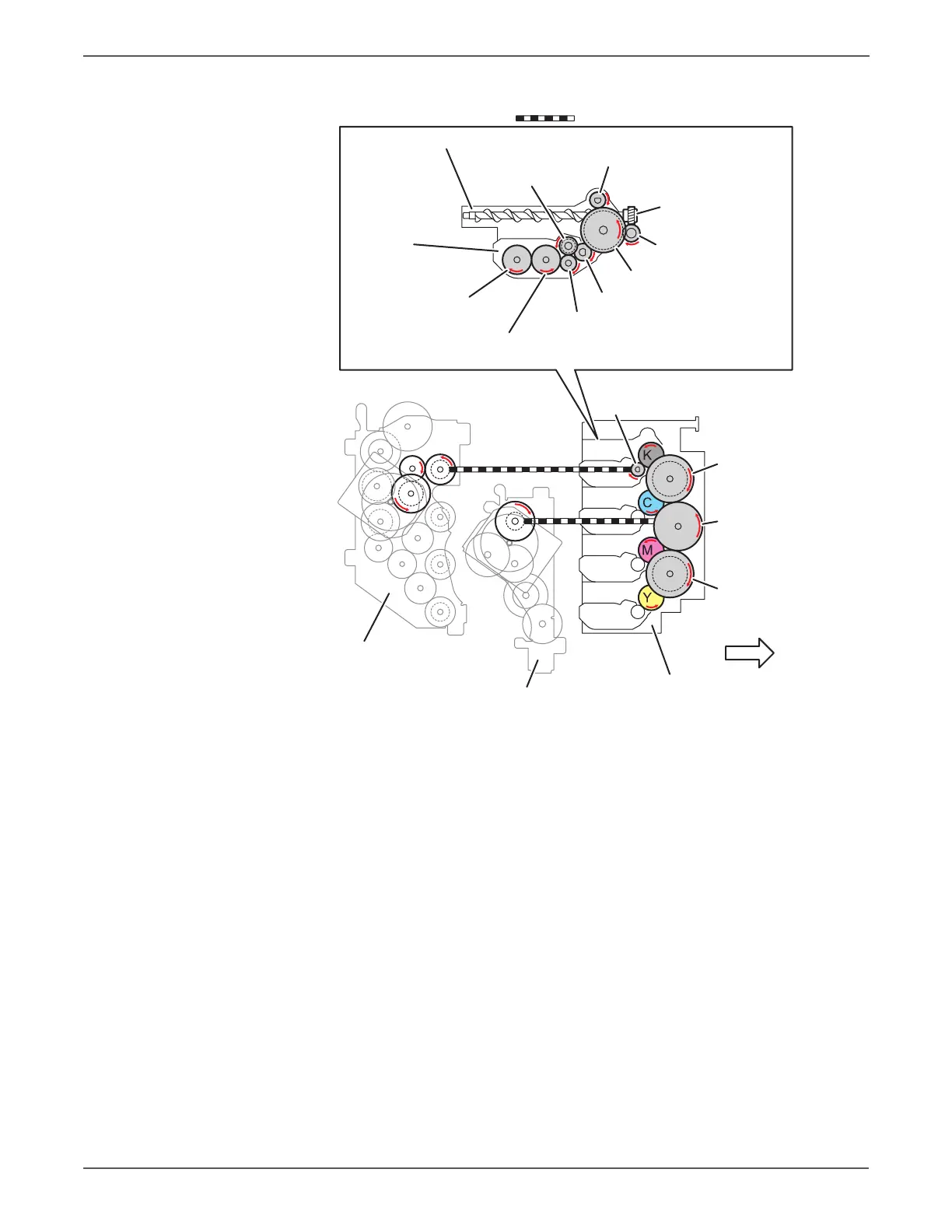

s6128-043
Front
Main Drive
Sub Drive
Magnet Gear
[ Magnet Roller ]
Imaging Unit
Imaging Unit
Gear 1
Imaging Unit
Gear 2
[ Drum ]
Imaging Unit
Gear 2
[ Drum ]
Xerographics Housing (Y, M, C, K)
[ Drum ]
Cleaning Auger Gear
[ Auger ]
Magnet Idler Gear
Gear Idler Paddle
Paddle Gear
[ Developer Paddle ]
Auger Gear
[ Front Auger ]
Auger Gear
[ Rear Auger ]
Side Auger Idler Gear
Side Auger Gear
[ Side Cleaning Auger ]
Developer
Housing
(Y, M, C, K)
Development And Excess Toner Collecting
: Indicates The Engagement Of Gears
[ Name Of Moving Parts ]
