Wireless Access Point
Viewing Status on the Wireless AP 147
Filter Statistics
The Filter Statistics window provides statistical data for all configured filters. The
name, state (enabled — on or off), and type (allow or deny) of each filter is shown.
For enabled filters, this window shows the number of packets and bytes that met
the filter criteria. Click on a column header to sort the rows based on that column.
Click on a filter name to edit the filter settings.

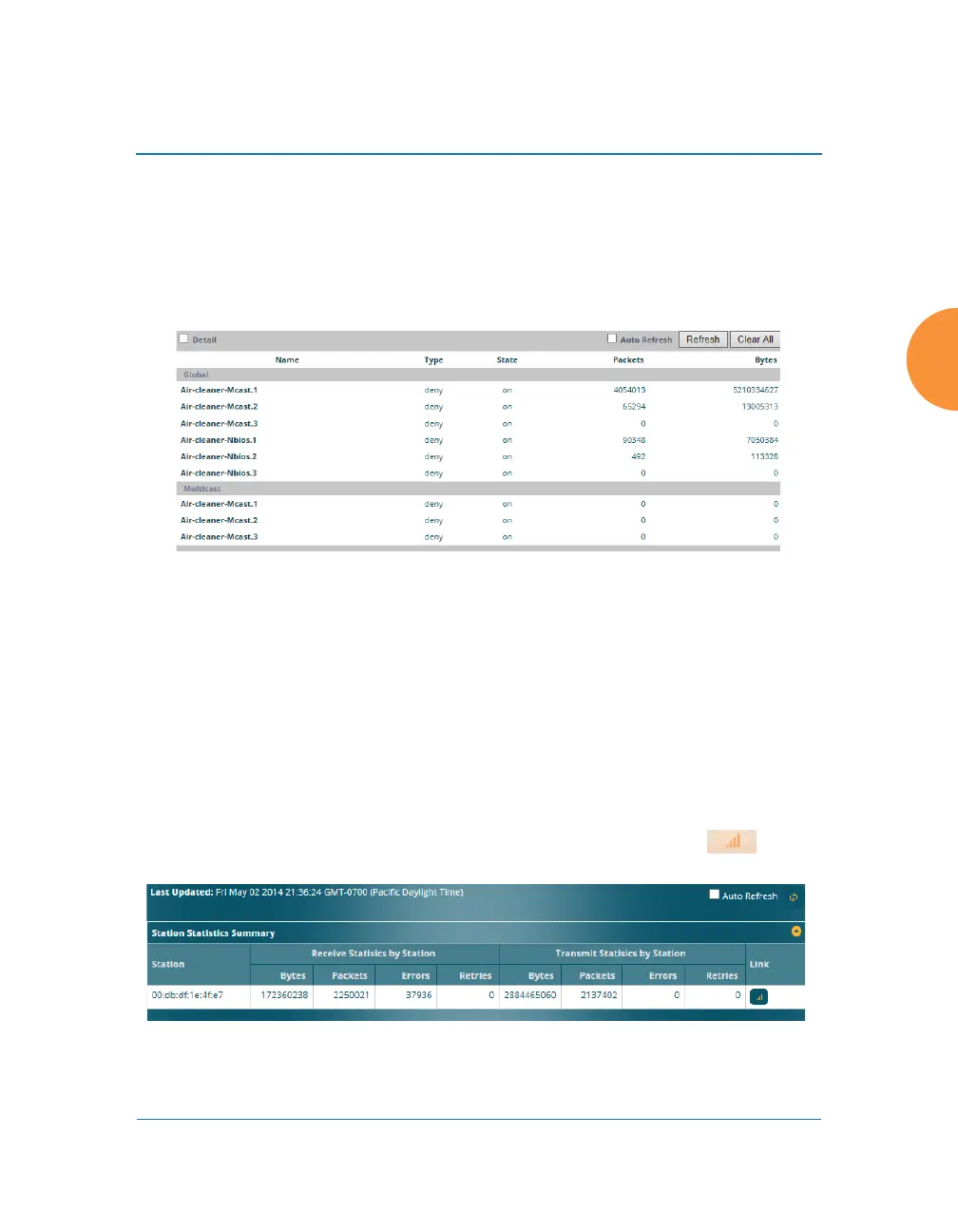

Figure 88. Filter Statistics
See Also
Filters
Application Control Windows
Station Statistics
This status-only window provides an overview of statistical data for all stations.
Stations are listed by MAC address, and Receive and Transmit statistics are
summarized for each. For detailed statistics for a specific station, click the desired
MAC address in the Station column or click the details button in the
station’s Link column, and see “Per-Station Statistics” on page 149.
Figure 89. Station Statistics
