Xirrus XR Series User Manual

Wireless Access Point
Configuring the Wireless AP 169
Network
This is a status-only window that provides a snapshot of the configuration
settings currently established for the Ethernet interfaces. DNS Settings and other
settings are summarized as well. You must go to the appropriate configuration
window to make changes to any of the settings displayed here (configuration
changes cannot be made from this window). You can click on any item in the
Interface column to “jump” to the associated configuration window.

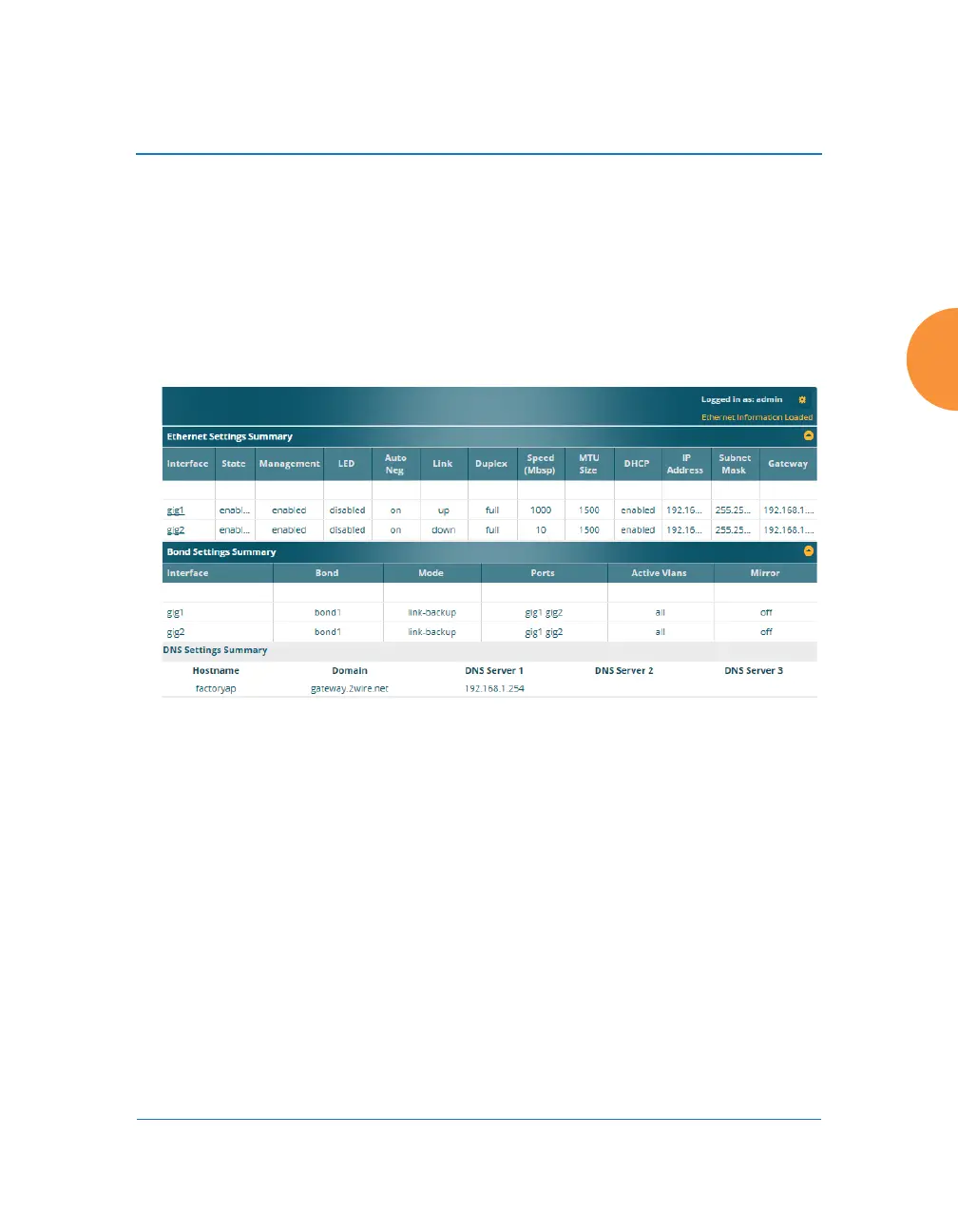

Figure 99. Network Interfaces
WMI windows that allow you to change or view configuration settings associated
with the network interfaces include:
 “Interfaces” on page 170
 “Bonds and Bridging” on page 173
 “DNS Settings” on page 180
 “Cisco Discovery Protocol (CDP) Settings” on page 181
 “LLDP Settings” on page 182
See Also
DNS Settings
Interfaces
