be used: as eight 20 MHz channels; four 40 MHz channels; two 80 MHz channels;
or one 160 MHz channel. Xirrus currently supports channels up to 80 MHz wide.

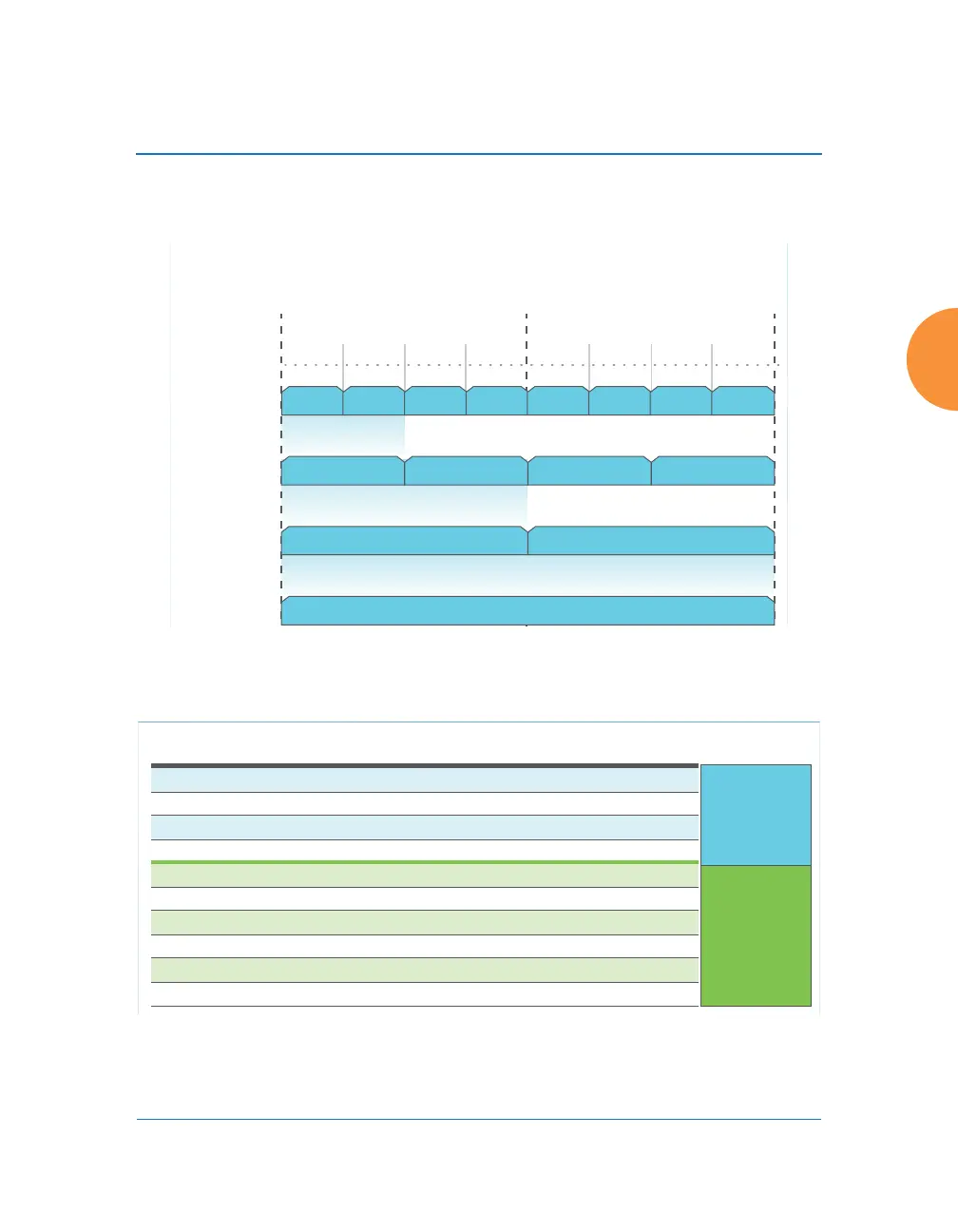

Figure 22. Channel Bonding (Channels 36-64 shown)
802.11ac Data Rates
Figure 23. Maximum 802.11ac Data Rates
Frequency
Channel
Number
36
5150MHz
Channel Bandwidth
5250MHz
5350MHz
40
44
48
52
60
56
64
20MHz
40MHz
80MHz
160MHz
2-20MHz
bonded channels
2-40MHz
bonded channels
2-80MHz
bonded channels
UNII-1 UNII-2
Phase 1
Phase 2+
Maximum # Transmit Bandwidth #
Data Rate Antennas (MHz) Streams Modulation
293Mbps 1 40 1 64QAM
433Mbps 1 80 1 256QAM
867Mbps 2 80 2 256QAM
1.299Gbps 3 80 3 256QAM
1.730Gbps 4 80 4 256QAM
3.470Gbps 8 80 8 256QAM
867Mbps 1 160 1 256QAM
1.730Gbps 2 160 2 256QAM
3.470Gbps 8 160 4 256QAM
6.930Gbps 8 160 8 256QAM
