72 Installing the Wireless AP
Mounting and Connecting the AP
A detailed Installation Guide is available at support.xirrus.com that describes
mounting your AP. Please follow the provided instructions carefully. Data and
power connections to the AP are also detailed in the Installation Guide. Please
follow the cabling and connection instructions carefully.
Dismounting the AP
For all AP models, push up on the AP (i.e., push it against the mounting plate).
Then turn the AP to the left to remove it. This is similar to dismounting a smoke
detector.
Powering Up the Wireless AP
When powering up, the AP follows a specific sequence of LED patterns showing
the boot progress, and following a successful boot will provide extensive status
information.

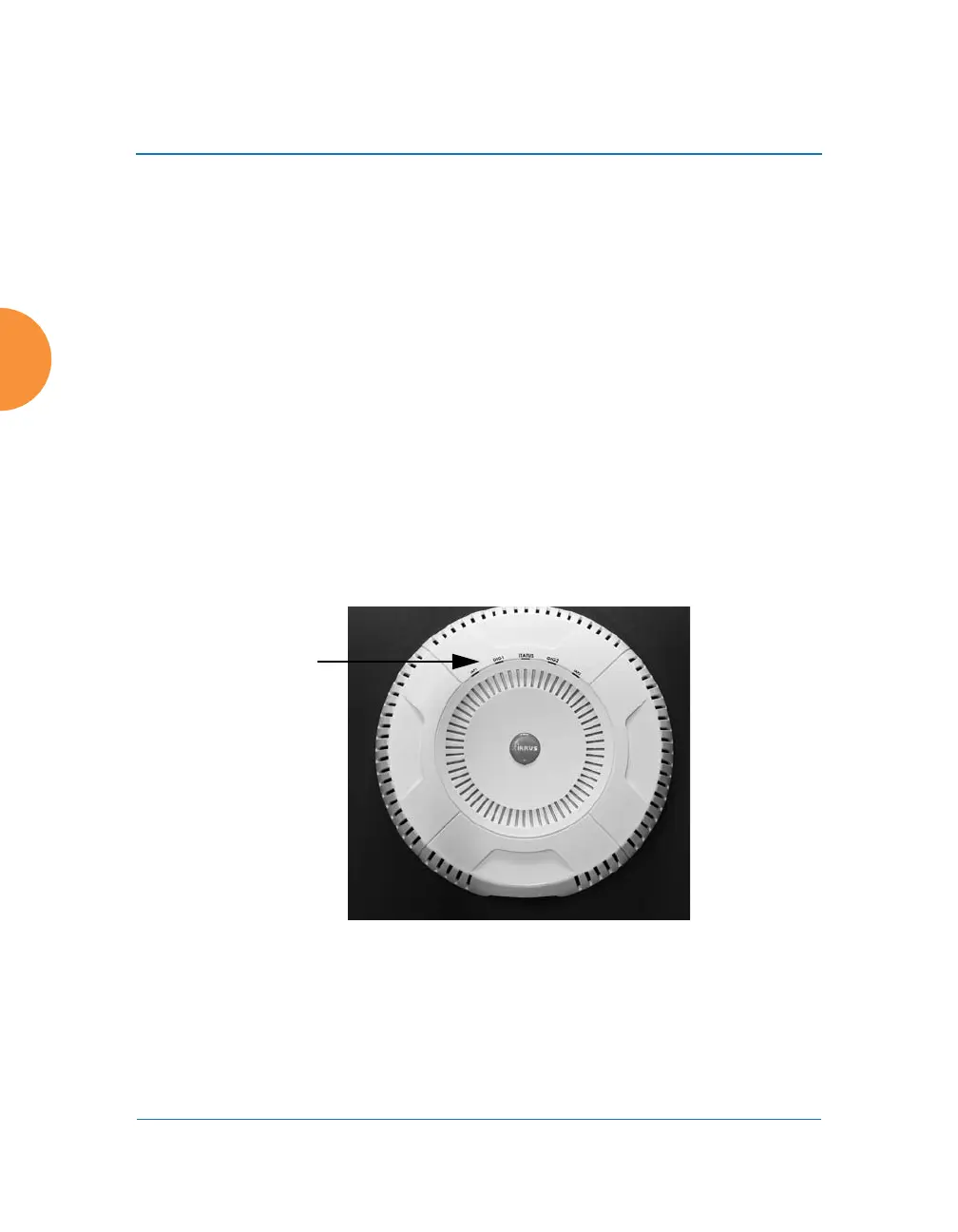

Figure 32. LED Locations
AP LED settings may be altered or disabled entirely for diagnostic purposes or for
personal preference. Changes are made via the AP’s Command Line Interface or
the Web Management Interface — refer to “LED Settings” on page 378.
Ethernet Activity,
Status, and
Radio LEDs
