Autonics GP Series User Manual

46

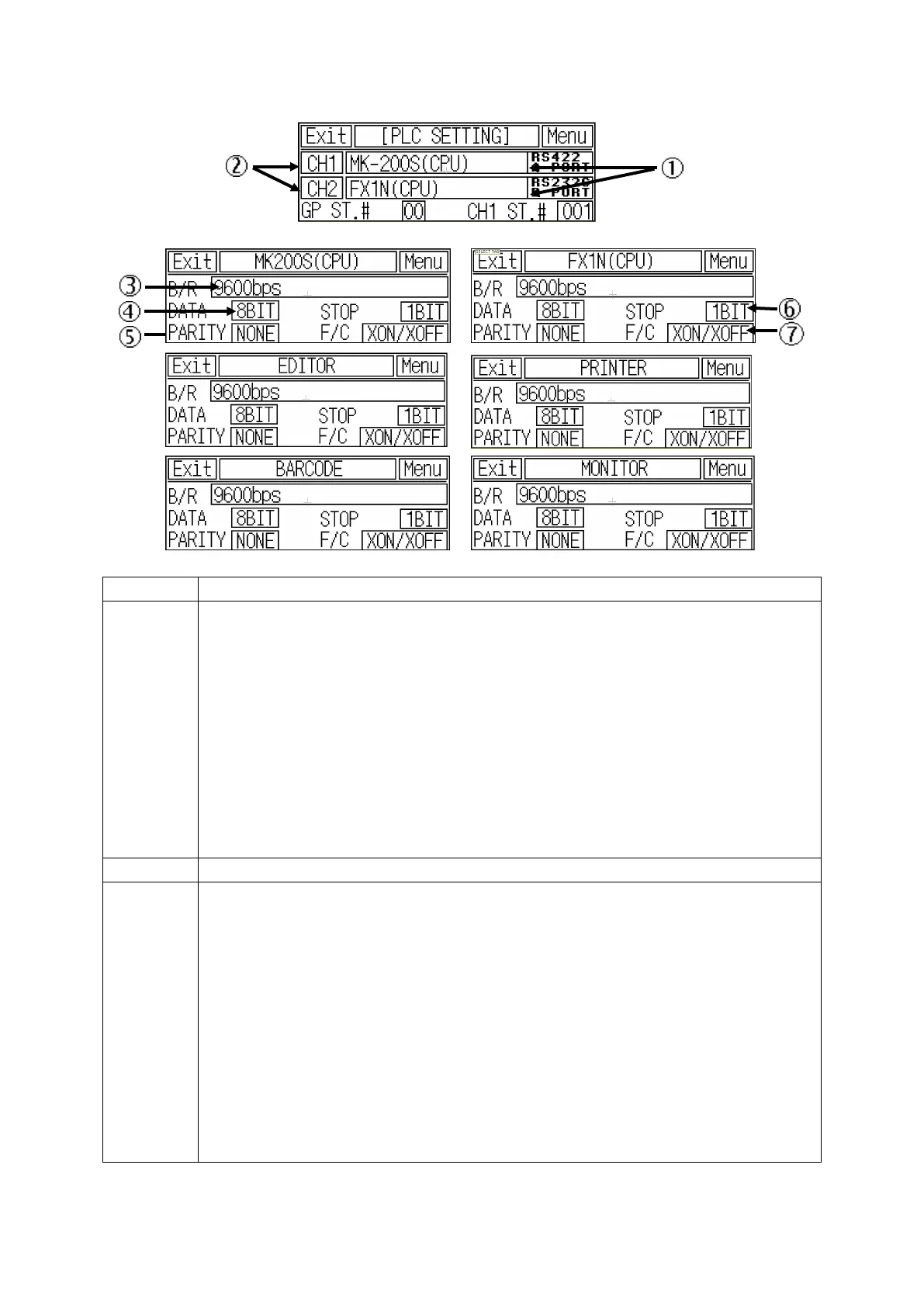

- Detail configuration of CH1/CH2
Number Function and operation
1
It configures operation mode.
CH1,2 protocol : PLC configured and downloaded in GP and editor communicates to
each port.
Editor : It is an I/O mode and it is available to download user design data from GP Editor.
Printer : It is an output mode and prints alarm list of GP.
*Refer to print out menu of system menu/function configuration.
Barcode : It is an input mode reading data from a barcode.
*Refer to the description of barcode.
Monitor : It is configured only in CH2 and it monitors PLC connected to GP in
PC directly. GP transmits data from PC to PLC and data from PLC to PC. But,
MITSUBISHI FX-Series can be monitored in editor mode.
2 When it touched, detail configuration window of designated operation mode is displayed.
3 ~ 7
It configures the operation mode in detail.
Speed : It configures communication speed.
It provides 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
bps.
Data : It configures data bit.
It provides 7, 8 bit.
Stop bit : It configures stop bit.
It provides 1, 2 bit.
Parity : It configures parity type.
It provides even parity, odd parity, non-using parity.
Flow control : It configures data flow control.
It provides XON/XOFF, DSR/DTR.
