Configuring a Network with WDS-Managed APs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 704
D-Link UWS User Manual

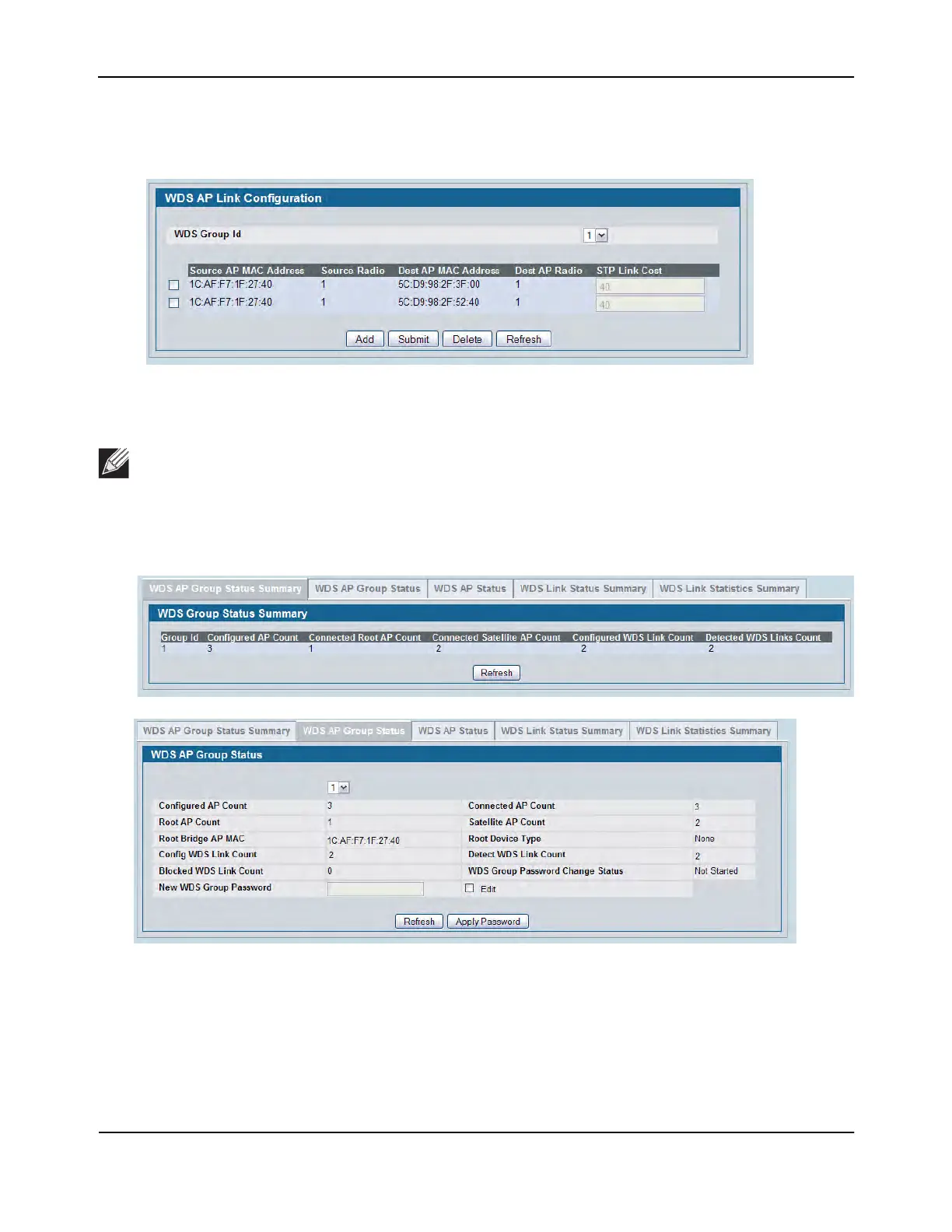

20. Return to the WLAN > Administration > WDS Configuration > Link Configuration page to verify the link
settings.
21. Deploy the APs, if they have not already been deployed. After the Root AP is discovered and has become
managed, it will scan for the Satellite APs. As they are discovered, they will become managed.
22. To verify that the WDS links and APs are operating as expected, navigate to WLAN > Monitoring > WDS
Managed APs.
Note: It might take several minutes for the APs to establish WDS links and to become managed.
