Configuring a Network with WDS-Managed APs
D-Link Unified Wired and Wireless Access System
July 2012 Page 703
D-Link UWS User Manual
15. From the WLAN > Administration > WDS Configuration > Link Configuration page, click Add to add the
links to the selected group. If multiple WDS groups are configured, make sure you select the appropriate
group ID before you click Add.

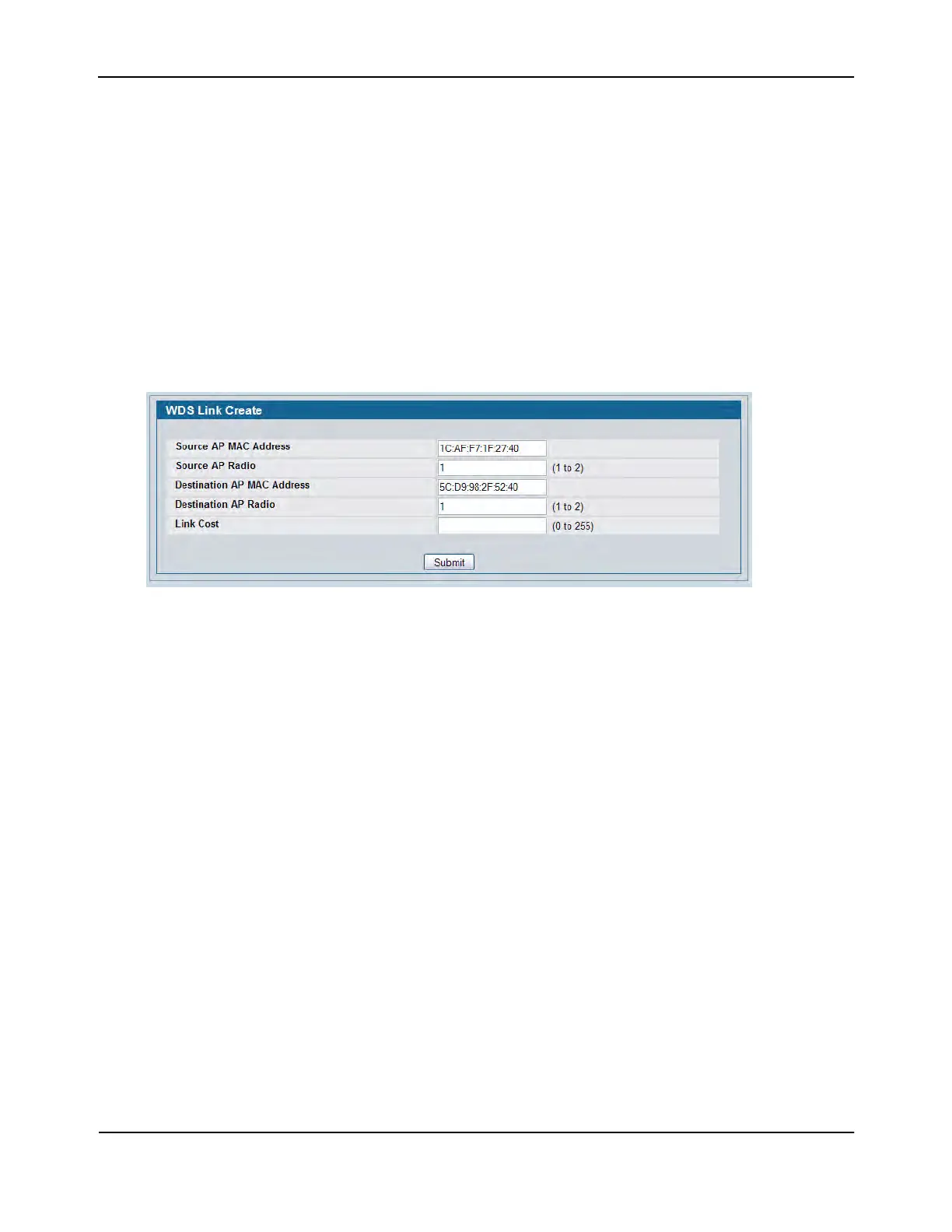

16. On the WDS Link Create page, configure the link between the Root AP and Satellite AP1 with the following
settings:
• Source AP MAC Address: 1C:AF:F7:1F:27:40 (Root AP)
• Source AP Radio: 1
• Destination AP MAC Address: 5C:D9:98:2F:52:40 (Satellite AP1)
• Destination AP Radio: 1
• Link Cost: You do not need to provide a value for this field because is disabled. By default, the link cost
is 40.
17. Click Submit.
18. On the WDS Link Create page, configure the link between the Root AP and Satellite AP2 with the following
settings:
• Source AP MAC Address: 1C:AF:F7:1F:27:40 (Root AP)
• Source AP Radio: 1
• Destination AP MAC Address: 5C:D9:98:2F:3F:00 (Satellite AP2)
• Destination AP Radio: 1
• Link Cost: You do not need to provide a value for this field because is disabled. By default, the link cost
is 40.
19. Click Submit.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
