D-Link DWL-2600AP User Manual

Optimizing WLAN Traffic
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 724
D-Link UWS User Manual

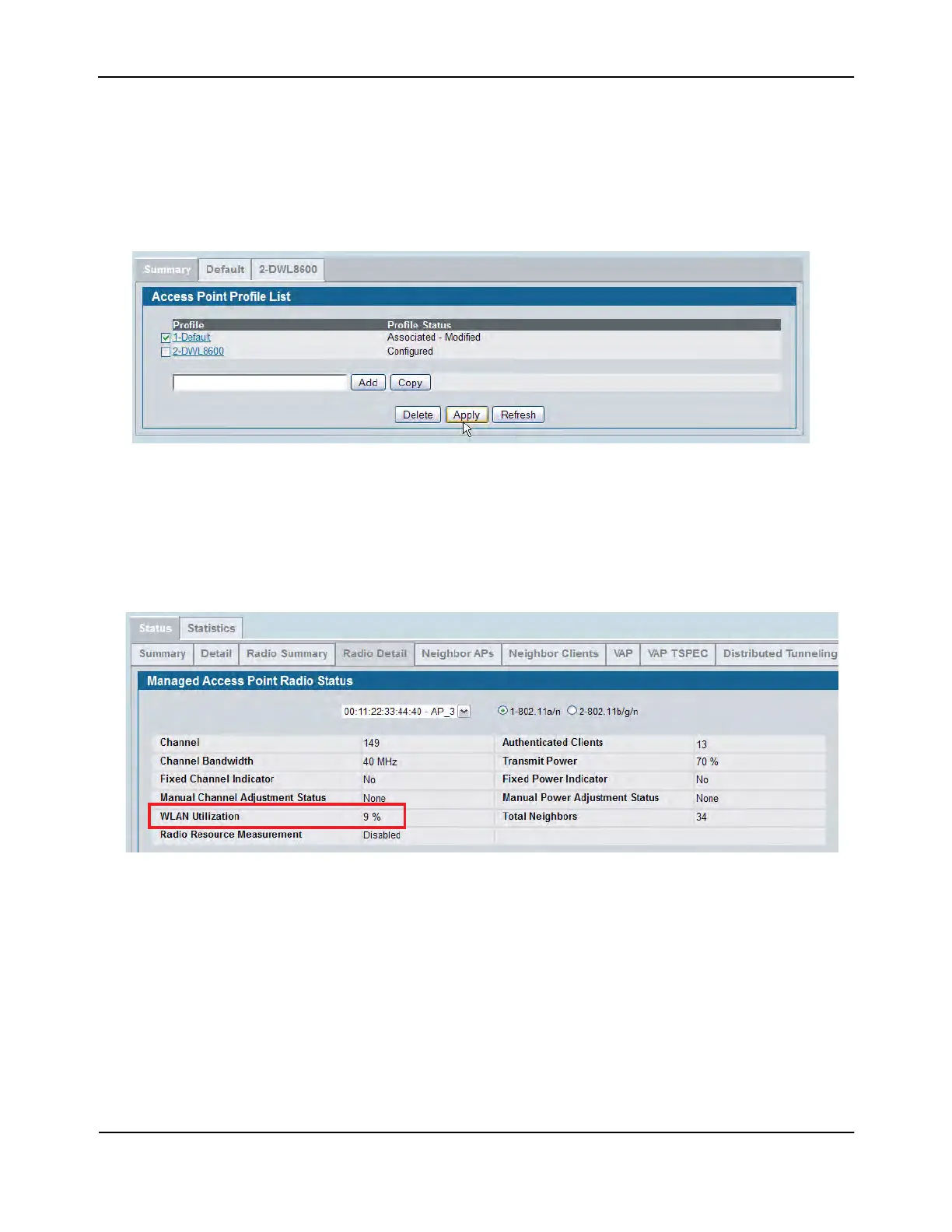

5. If the APs are already managed, use the following steps to reapply the profile so the new settings take
effect:
a. Go to the WLAN > Administration > Advanced Configuration > AP Profiles page.
b. Select the check box next to the profile you modified.
c. Click Apply.
A message appears and indicates that the AP radios will be reset, which will disassociate any associated
wireless clients. Click OK to continue.
6. To monitor the current WLAN utilization rate for a radio, go to the WLAN > Monitoring > Access Point >
Managed AP Status > Radio Detail page and select the AP (listed by MAC address) and its radio.
The WLAN Utilization field displays the current traffic load that the radio is bearing based on the total
possible percentage of traffic that the radio can handle.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
