D-Link DWL-2600AP User Manual

Detecting and Preventing Wireless Intrusion
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 736
D-Link UWS User Manual

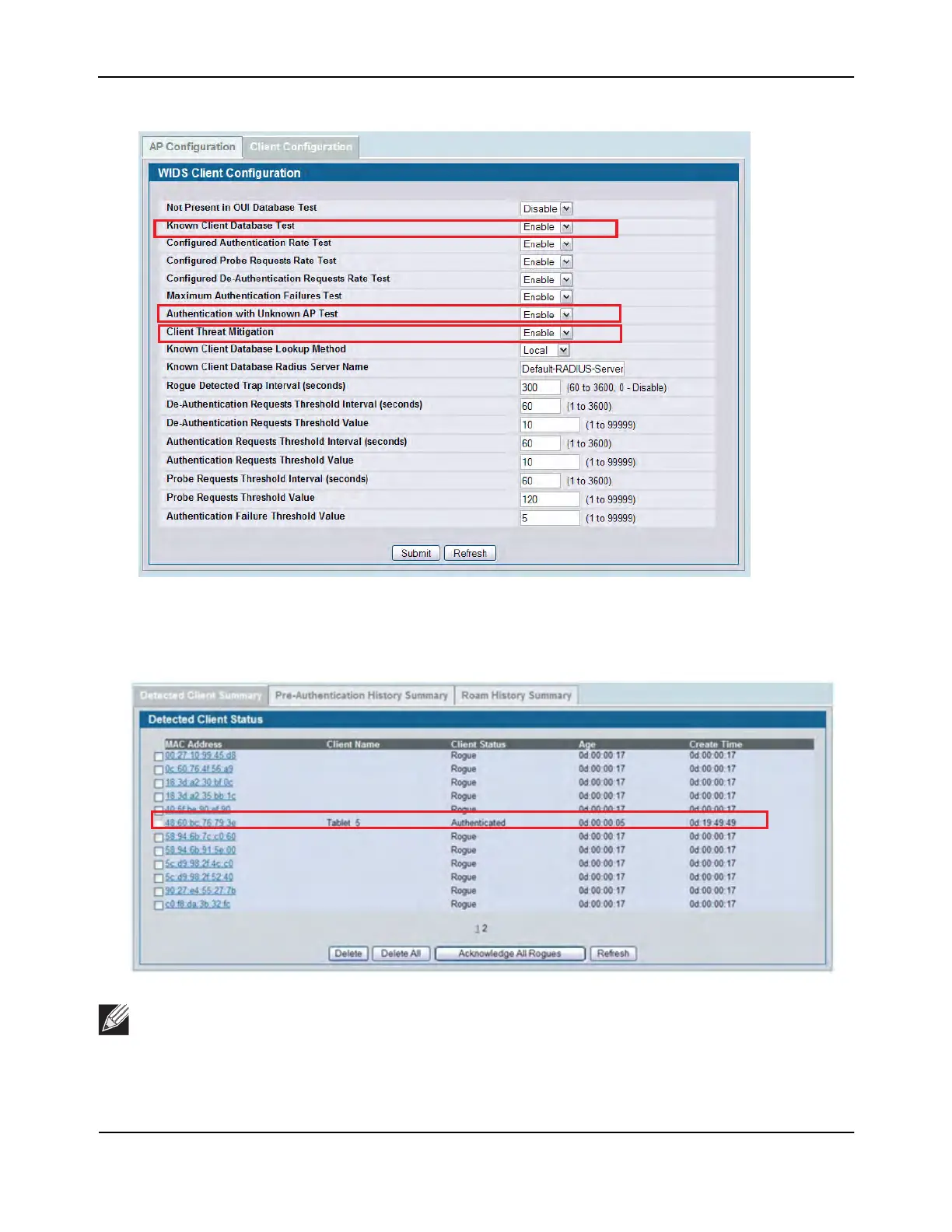

8. View information about all detected clients on the WLAN > Monitoring > Client > Detected Clients page.
In the following figure, the Known Client is shown as Authenticated while it is associated to the Corporate
SSID. Other detected clients have failed the Known Clients Database test and are listed as Rogue.
Note: If the client status for some clients stays as Detected, check the age of the connection. Rogue
classification is performed only on current clients and only when the Known Clients Database Test is
enabled. Clients that existed in the Detected Clients database prior to the activation of the Known
Clients Database Test and are no longer present will not be tagged as Rogue.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
