CK22/CK22H

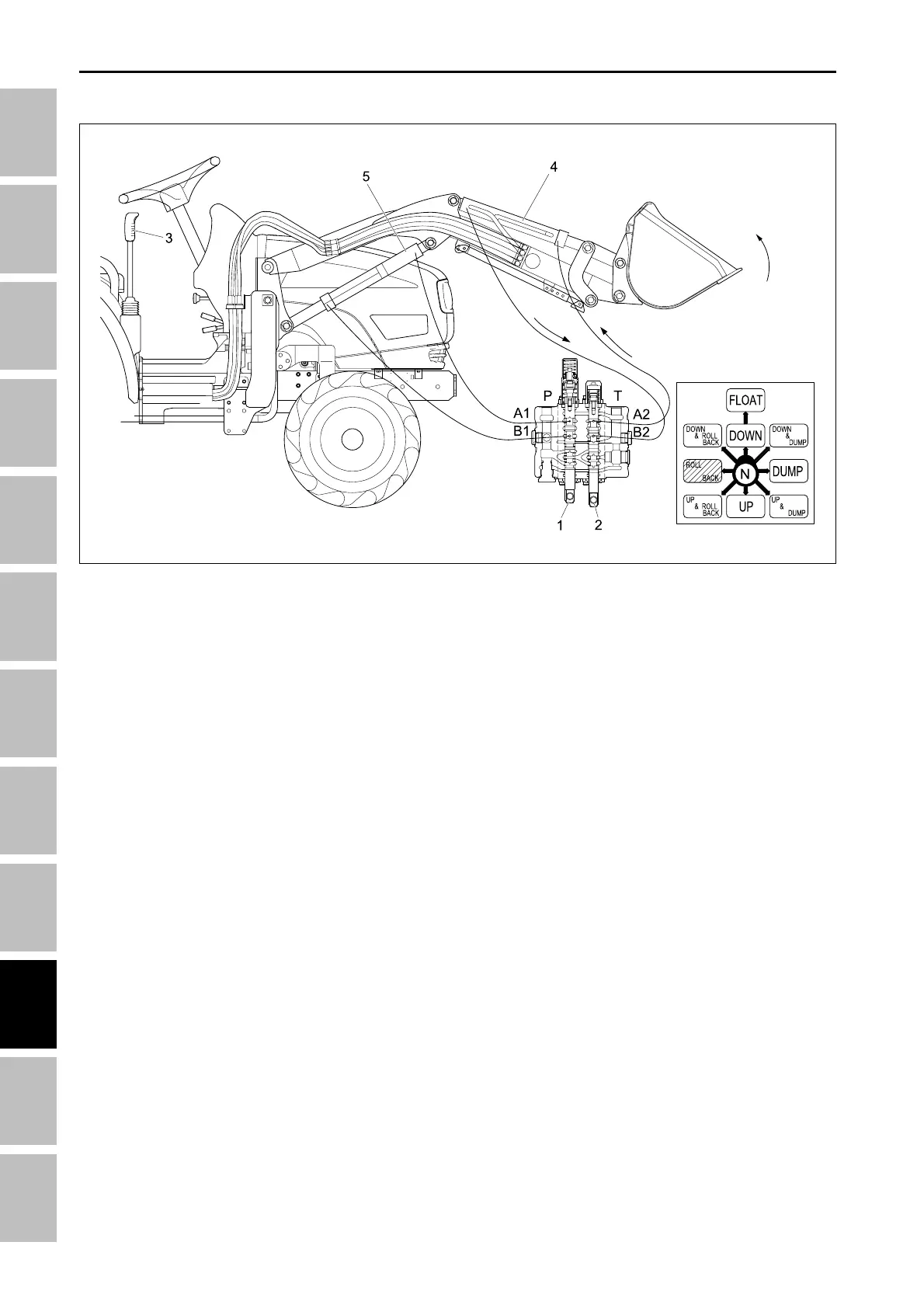

B. ROLL BACK POSITION
(1) Lift control valve spool
(2) Bucket control spool
(3) Control lever
(4) Bucket cylinder
(5) Lift cylinder
When the control lever (3) is moved to the roll back
position, the bucket control valve spool (2) is moved
outward. Fluid flow from the hydraulic pump and is
directed to the rod side of the cylinder (4).
Fluid flow from the piston side of the cylinder flows
through passage “B2” exiting the valve at port “T” and
flows to the transmission case.
196W921A
HYDRAULIC SYSTME - OPERATING PRINCIPLE
