CK22/CK22H

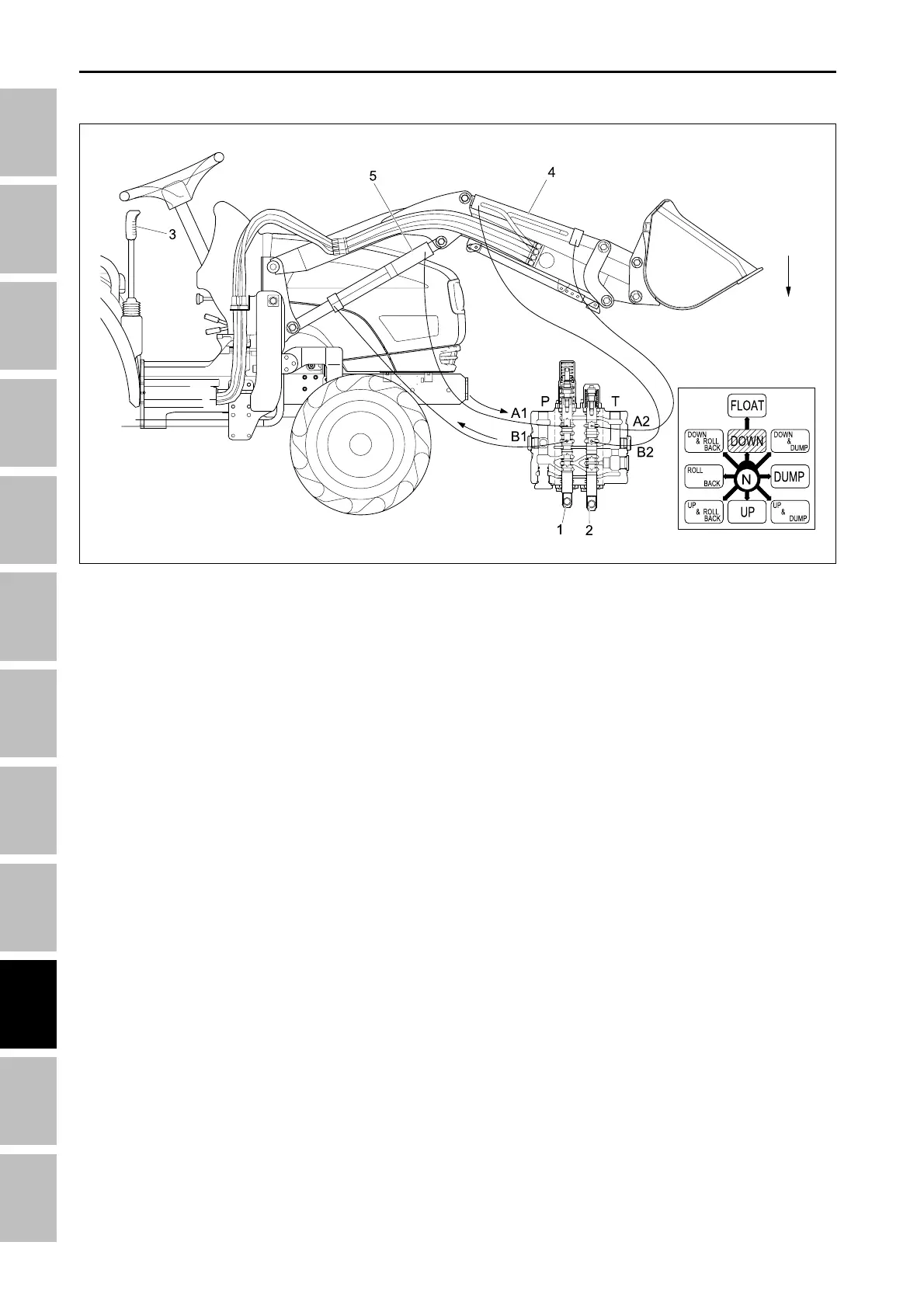

D. LOWERING POSITION
(1) Lift control valve spool
(2) Bucket control spool
(3) Control lever
(4) Bucket cylinder
(5) Lift cylinder
When the control lever (3) is moved to the lowering
position, the lift control valve spool (1) is moved inward.
Fluid flow from the hydraulic pump is directed to the
rod side of the cylinder (5). The fluid contained in the
piston side of the lift cylinder flows out of the cylinder
past port “T” to the transmission case allowing the
implement to lower.
196W923A
HYDRAULIC SYSTME - OPERATING PRINCIPLE
